Der feine Unterschied
von Anna Moldenhauer | 03.04.2018
Vorgestellt: | Light + Building 2018, Frankfurt |
---|---|
Stylepark-ID: | 04.9028.00016 |
Kategorien: | Außenleuchten › Einbauleuchten › Wandeinbauleuchten |
Außenleuchten › Einbauleuchten › Deckeneinbauleuchten |

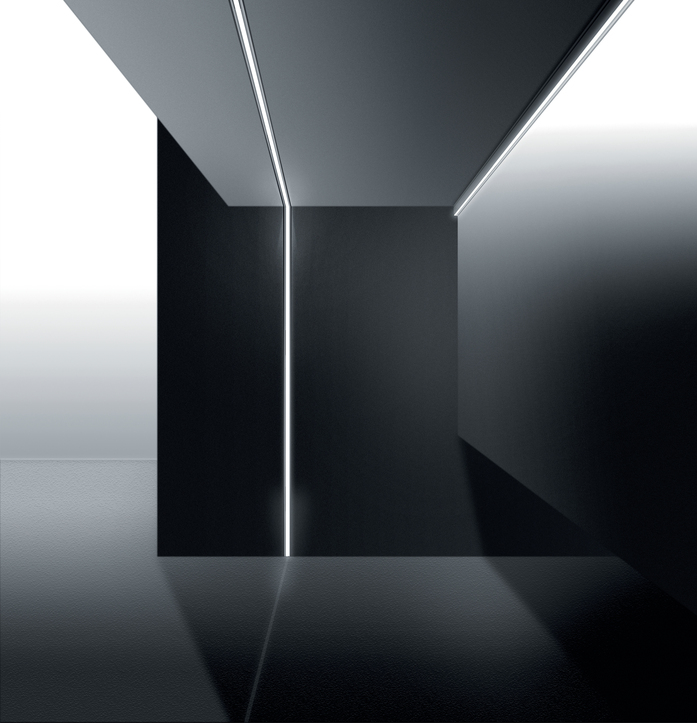

Designed to illuminate facades, walls, corniches and exterior floor marker. Continuous rod may be connected in line allowing a uniform lighting of even very large surfaces with dimming of the light emitted. Continuous lines which tend to infinity, used as a wall washer to illuminate walls with grazing light, or to create light cuts that outline the shapes and the architecture.

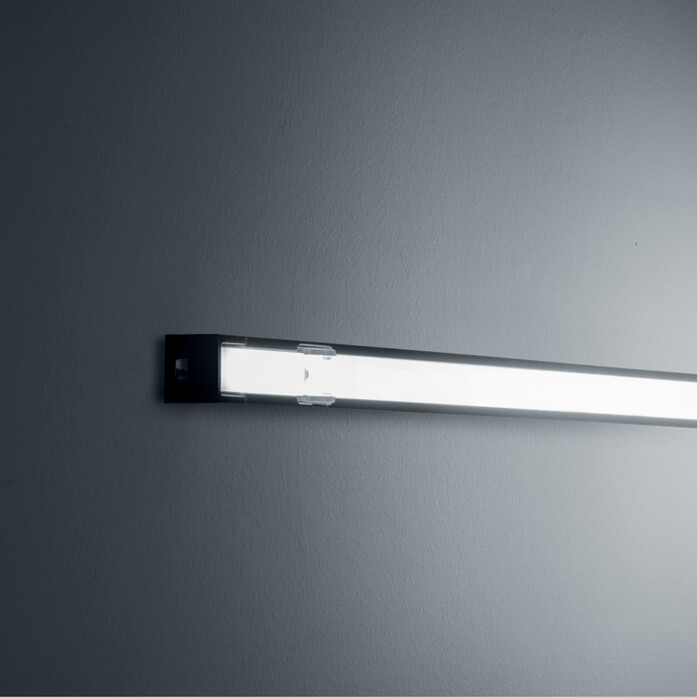

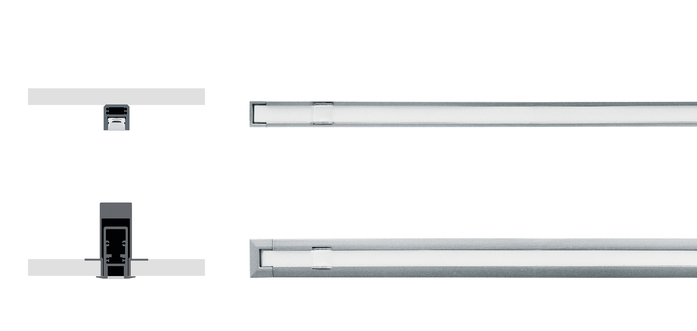

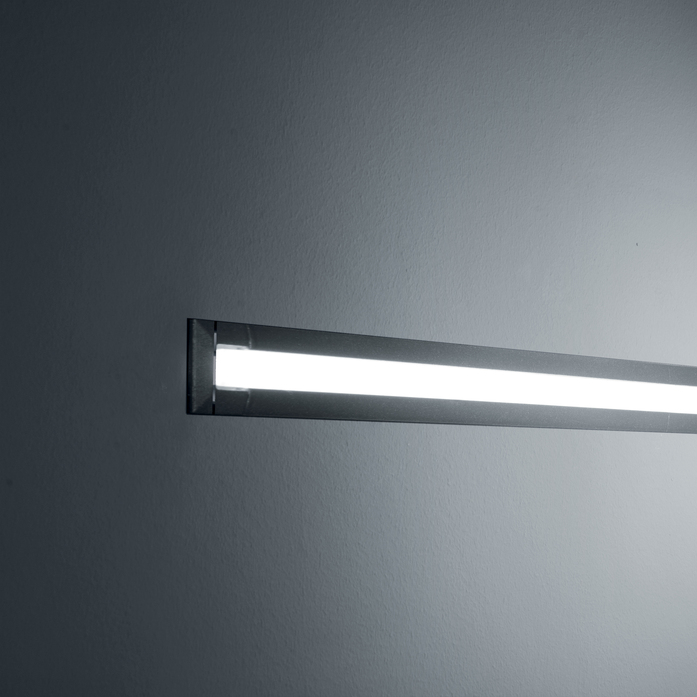

The Continuous Rod “Minimal” is a extruded aluminum profile with a very slim squared design: a very thin profile cuts into the architecture, not only to illuminate but also to emphasize the surrounding space. Continuous Rod can be surface mounted with a flush light source option or recessed, with a retracted light source option for more visual comfort: 1-2-3 meter modules can be used to light up spaces, using an energy-efficient LED strip integrated into the profile.
Stand/Befestigung | Festanschluss |
---|---|
Form Diffusor/Reflektor | rechteckig |
Leuchtenkopfbreite | 1000 mm / 2000 mm / 3000 mm |
Schutzart (nach DIN 40050) | IP65 Vollständiger Schutz/Staubdicht/Gegen Strahlwasser aus einer Düse aus allen Richtungen |
Schutzklasse | Klasse III (Schutzkleinspannung) |
Material | Aluminium |
Zum Anfragen eines Katalogs, füllen Sie bitte unser Formular aus.
Zum Anfragen eines PDF-Katalogs, füllen Sie bitte unser Formular aus.
Zum Anfragen eines Angebots, füllen Sie bitte unser Formular aus.
zu Continuous rod minimal
Dateiformat | Dateiname | Größe | Download |
---|---|---|---|
CONTINUOUS-ROD_ENG.pdf | 957.41 KB |
von SIMES
Dateiformat | Dateiname | Größe | Download |
---|---|---|---|
EUROLUCE-2017-EN.pdf | 3.47 MB |
Um die Datei herunterladen zu können, bittet der Hersteller um ein paar persönliche Angaben die an ihn weitergeleitet werden.
