Mitasi

Stylepark-ID:04.8461.00039
Categories: Outdoor lightingSurface mounted lightsWall mounted lights
Product description

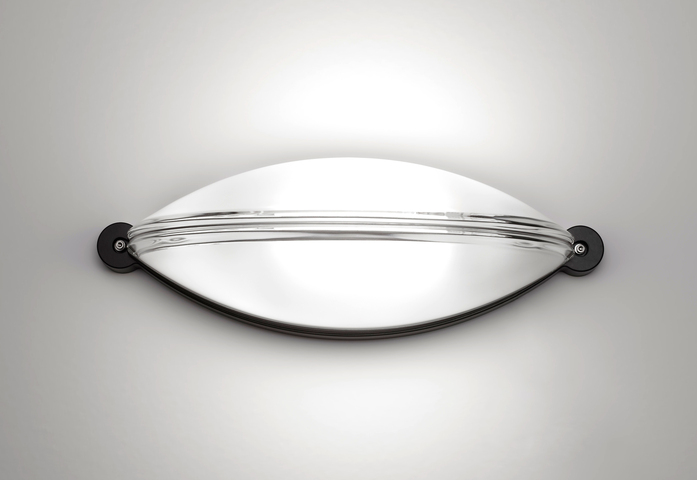

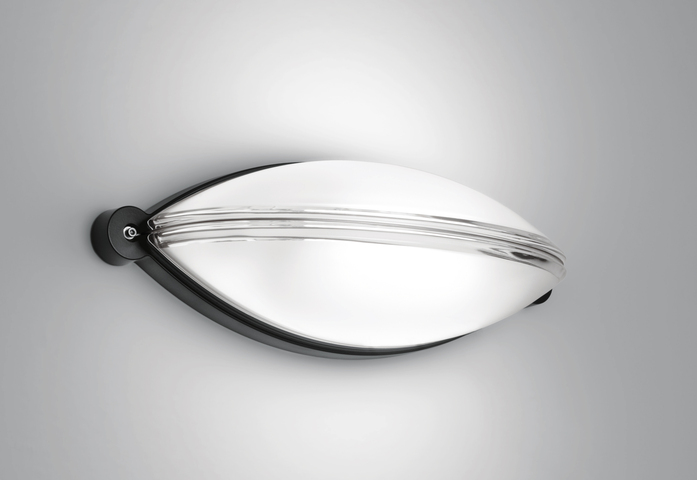

Wall/ceiling light fixture with diffuse emission, with fluorescent or halogen light sources. Horizontal or vertical installation. Available in two finishes: silver grey painted and black painted. Lamp unit in die-cast EN-AB 46100 aluminium with 3-stage outdoor treatment: nanotechnologies, antioxidant primer, polyester paint. Reflector in bright anodized aluminium. Moulded diffuser in internally sanded sodium-calcium glass with transparent profile. The fixture can be provided with directional screen in bright anodized aluminium. Stainless steel screws and silicone seal gaskets. Suitable for watertight connection.

Specifications
Fittings

G24d-3, 26W, 220-240V

Stand/ mountingfixed mounting
Inspection seal /certificationENEC
Width145 mm
Height410 mm
Depth140 mm
Form of protection (DIN 40050)IP55 protection against: dust/water jets
Safety classclass I (protective earthing)
Fire prevention classesF
Materialaluminium
Colorssilver
white


Manufacturer:
Artemide Outdoor, Germany

Design:
Ernesto Gismondi
1991
