Product description

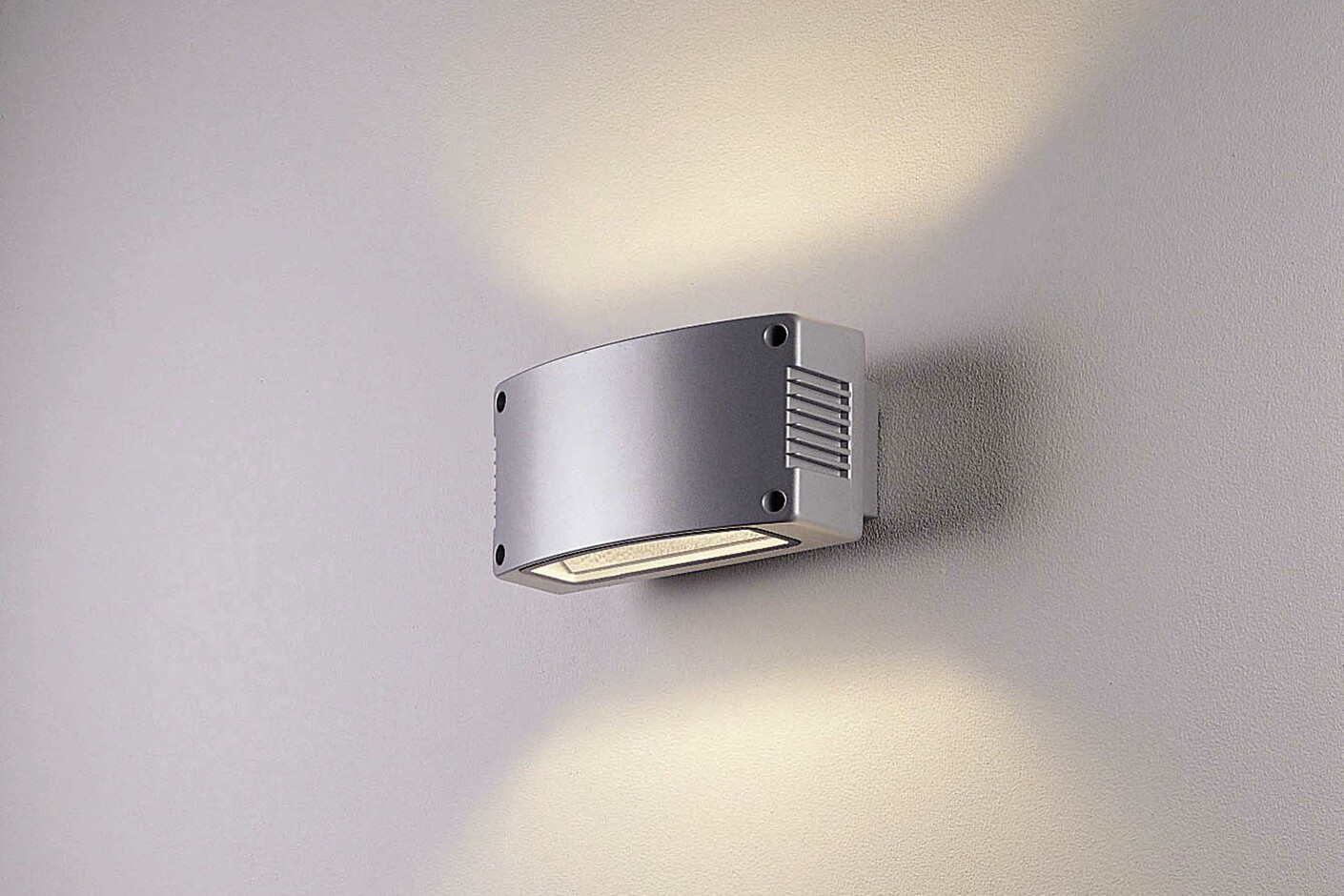

Powerful indoor and outdoor fixture, for wall or pole mounting with opposite direct-indirect emission totally glare-free. Thanks to the asymmetrical distribution, besides the vertical surface, can also light floor and ceiling. Recommended for external lig

hting of historical centers, building facades and wide indoor spaces (banks, commercial buildings, churches etc.) It can be supplied with monodirectional light emission (duplo/M)or with reflecting and diffusing element (duplo/wing).

Specifications
Functionsfixed
Stand/ mountingfixed mounting
Inspection seal /certificationCE
Height head of lamp176 mm
Depth of luminaire head120 mm
Width367 mm
Height176 mm
Depth176 mm
Form of protection (DIN 40050)IP65 dust-proof/protection against: water jets
Safety classclass I (protective earthing)
Fire prevention classesF
Materialaluminium
glass
Colorswhite


Manufacturer:
Castaldi Lighting, Italy
