SPLITBOX

Product description

SPLITBOX

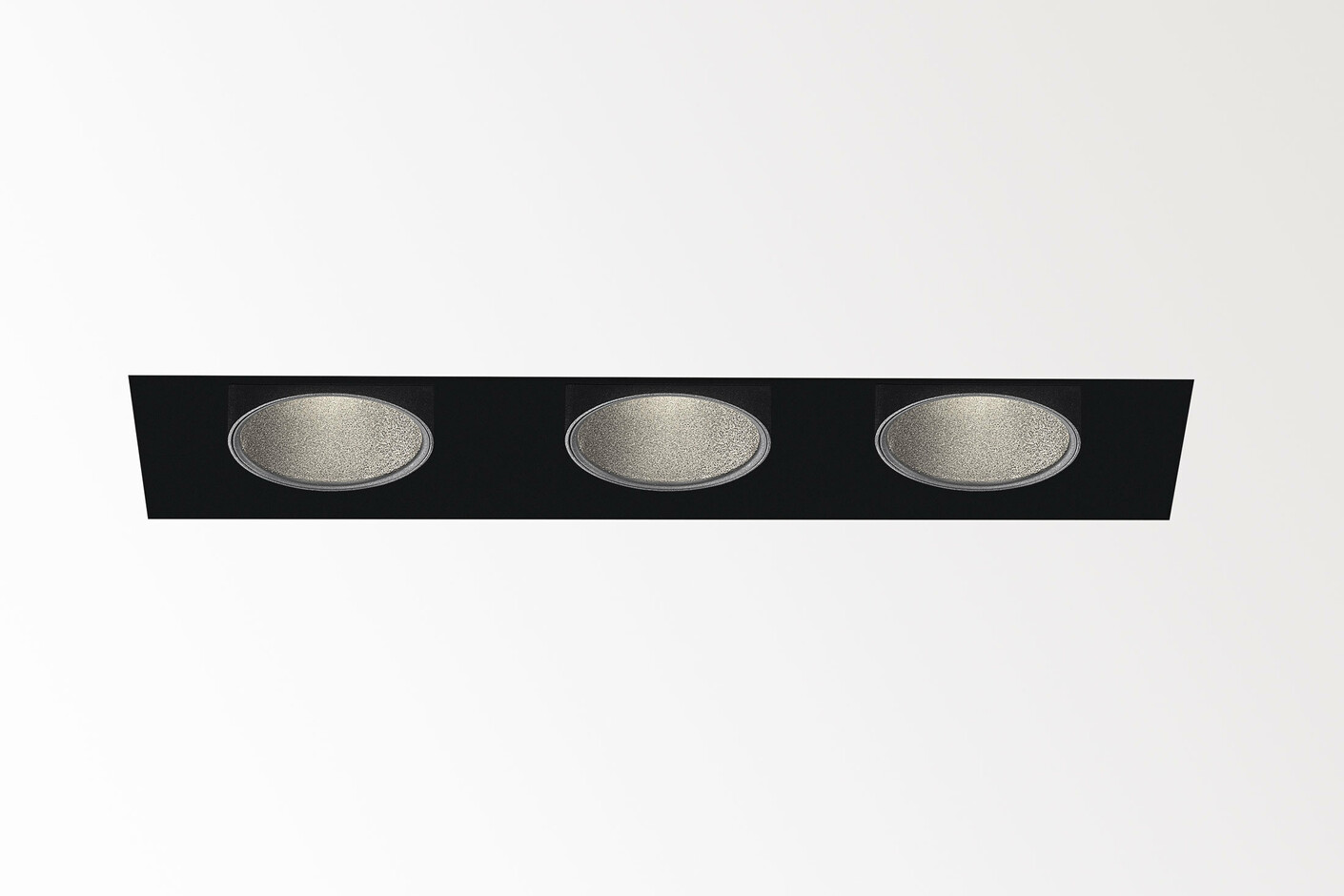

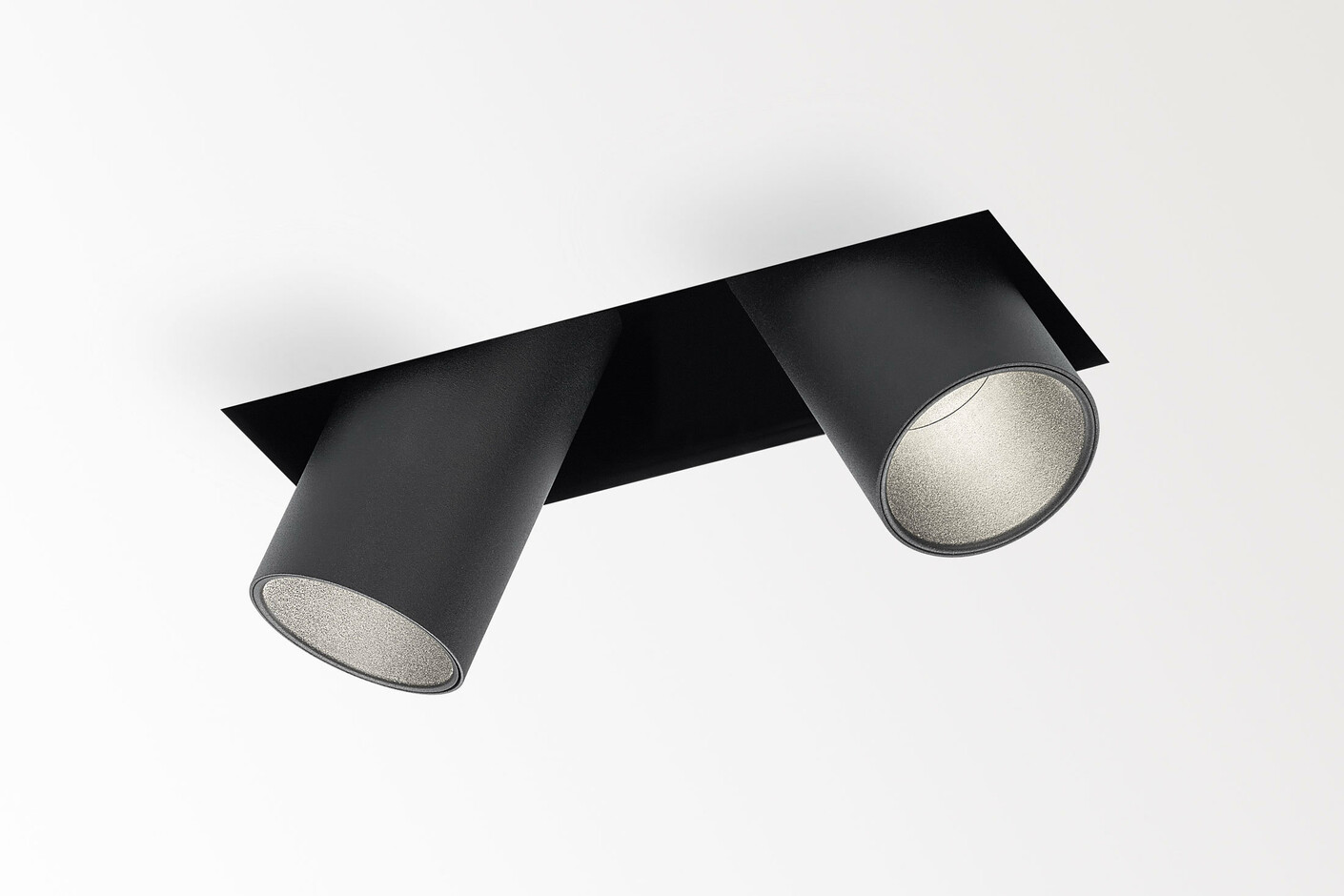

The Splitbox is a trimless integrated lighting system, with the full flexibility of surface mounted lighting. A black minimalistic cove of 80mm wide and 225mm or 315mm long can be equipped with one, two or three highly flexible spot modules. These Spy modules can remain encapsulated in the ceiling, or emerge in its entirety and be tilted 90° while rotate 355°, allowing focused illumination in one swift move. The black background inside the cove creates an illusion of unendingness around the light spots, enforcing the fully integrated architectural lighting concept. A range of light refining accessories are available to guarantee optimal optic performance and maximum eye comfort. The outside of the Spy modules is available either black or white, which can be combined with exchangeable inserts in black, white, mat gold or a new silver grey finish.

Specifications
Length31 mm / 40 mm
Width28.5 mm
Weight0.62 kg / 0.78 kg
Form of protection (DIN 40050)IP20 protection against: solids > 12 mm
Safety classclass III (protective low voltage)
Colorsblack
white


Manufacturer:
Delta Light, Germany
