Catch

Product description

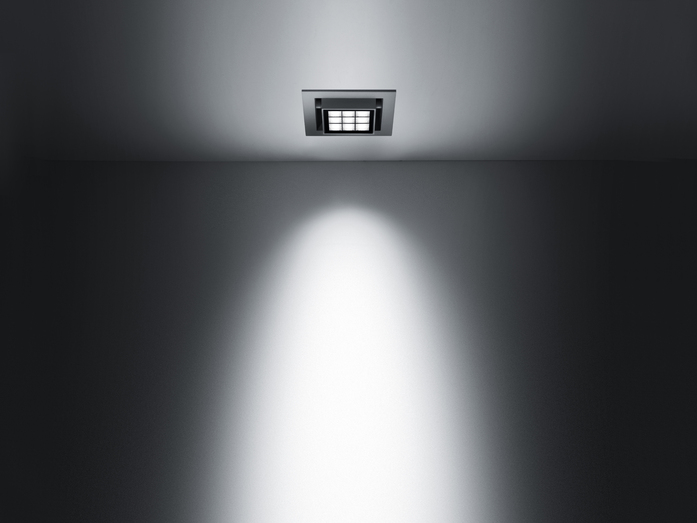

CATCH is an innovative square and rectangular downlight range that combines great visual comfort, minimalist dimensions and adjustability thanks to its tilting optical base. Through the use of state-of-the-art cowls the optical system is glare free highlighting the importance of visual comfort required when using LED sources. The reduced recessed dimensions allows for shallow depth installations and the remote drivers provides a quick and easy install, with DALI options available on request. The adjustable version of Catch can be installed either flush with the external trim or with a limited protrusion allowing greater tilt adjustability and improved beam angle precision. Catch is available in fixed or adjustable version with aluminum or stainless steel trim with improved aesthetics and suitable for more extreme applications.

CATCH has been designed using a composition of single square optical systems, aiming at a minimum size and a maximum visual comfort: the primary geometries enclosed in a modular system have created a square and rectangular downlight featuring a strict and minimal design. The attention to detail and the wide choice of technical and esthetical solutions at reach if the designer, allow the development of a variety of versions: they go from the more traditional ones with body and trim made of aluminum, to the more sophisticated versions with stainless steel trim.

Specifications
Stand/ mountingfixed mounting
Diffuser/reflector shaperectangular
square
Width of luminaire head220 mm / 400 mm
Height head of lamp120 mm
Depth of luminaire head360 mm / 380 mm
Form of protection (DIN 40050)IP65 dust-proof/protection against: water jets
Safety classclass II (protective isolation)
Materialaluminium


Manufacturer:
SIMES, Italy
