InLine - F

Product description

InLine is a sophisticated tool for linear lighting: Instead of merely diffusing it throughout the room, InLine directs the light with precision to the desired surface. Supporting the planner’s creativity, InLine offers a wealth of new applications and simultaneously strengthens the bonds between architecture and lighting.

InLine is a unique lighting tool that enables to create a whole range of different lighting scenarios, from diffused general light to homogenous indirect light to direct accent light. This is achieved deploying a light direction principle based on the interplay of two individual lenses (patent pending). Essentially, a primary lens concentrates the LED light while a secondary lens directs it to the desired surface. Additionally, a diffuser that evenly distributes the light is also available.

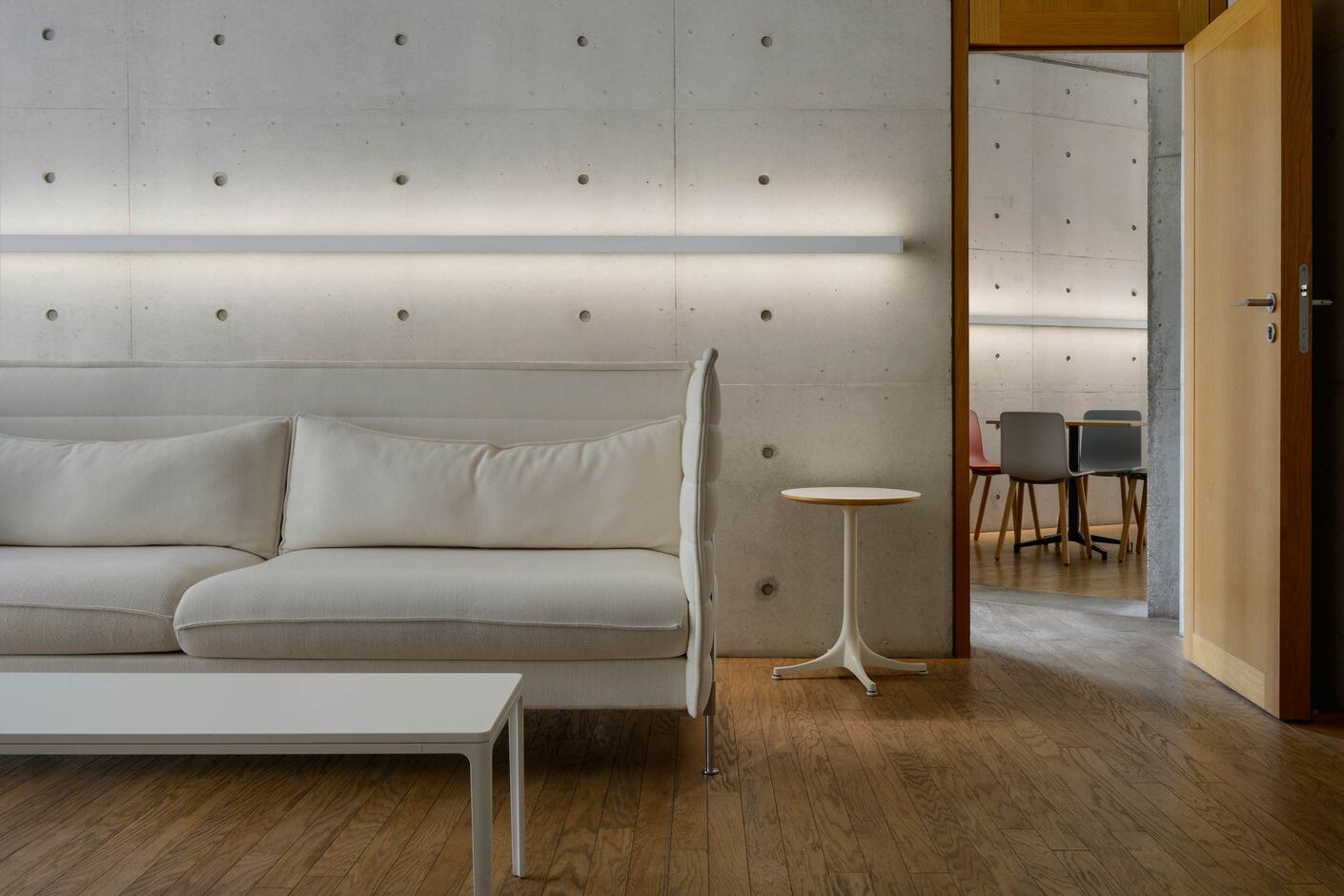

InLine System is a flexible modular system adjusted to architectural requirements. As ceiling, wall and suspension installation, it provides uninterrupted linear light with all six light directions. InLine System can be further individualised with blanking profiles, colour filters and lettering.

Specifications
Fittings

2700/3000/4000K
7/12/17/23/28/35/40/45W
220-240V

Stand/ mountingfixed mounting
Diffuser/reflector shaperectangular
Height head of lamp240 mm
Length290 mm / 571 mm / 852 mm / 1133 mm / 1414 mm / 1695 mm / 1976 mm / 2257 mm
Height640 mm
Depth400 mm
Form of protection (DIN 40050)IP20 protection against: solids > 12 mm
Safety classclass I (protective earthing)
Materialaluminium
All InLine Products


Manufacturer:
belux, Switzerland

Design:
Michel Charlot
2014
