DV401 E-Media

Product description

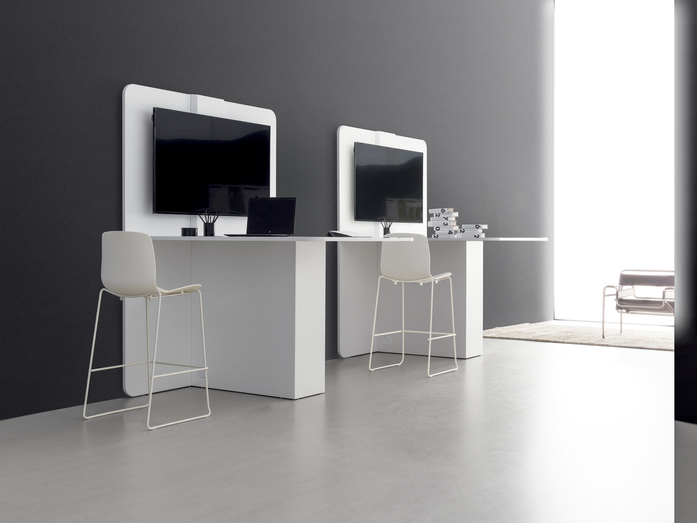

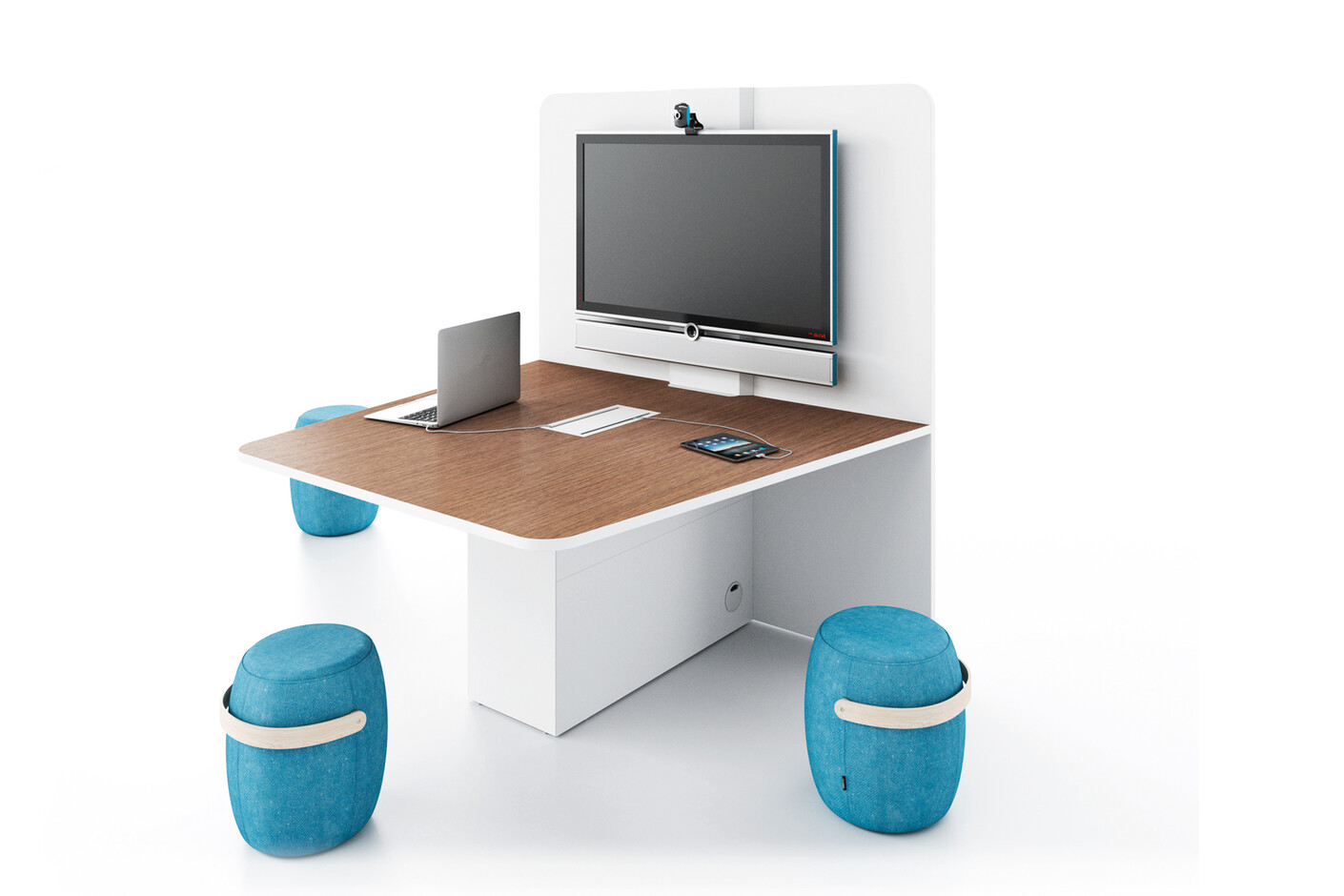

Freestanding structure designed for the integration of multimedia devices, wiring and equipment necessary for commissioning.Each module consists of the following elements.

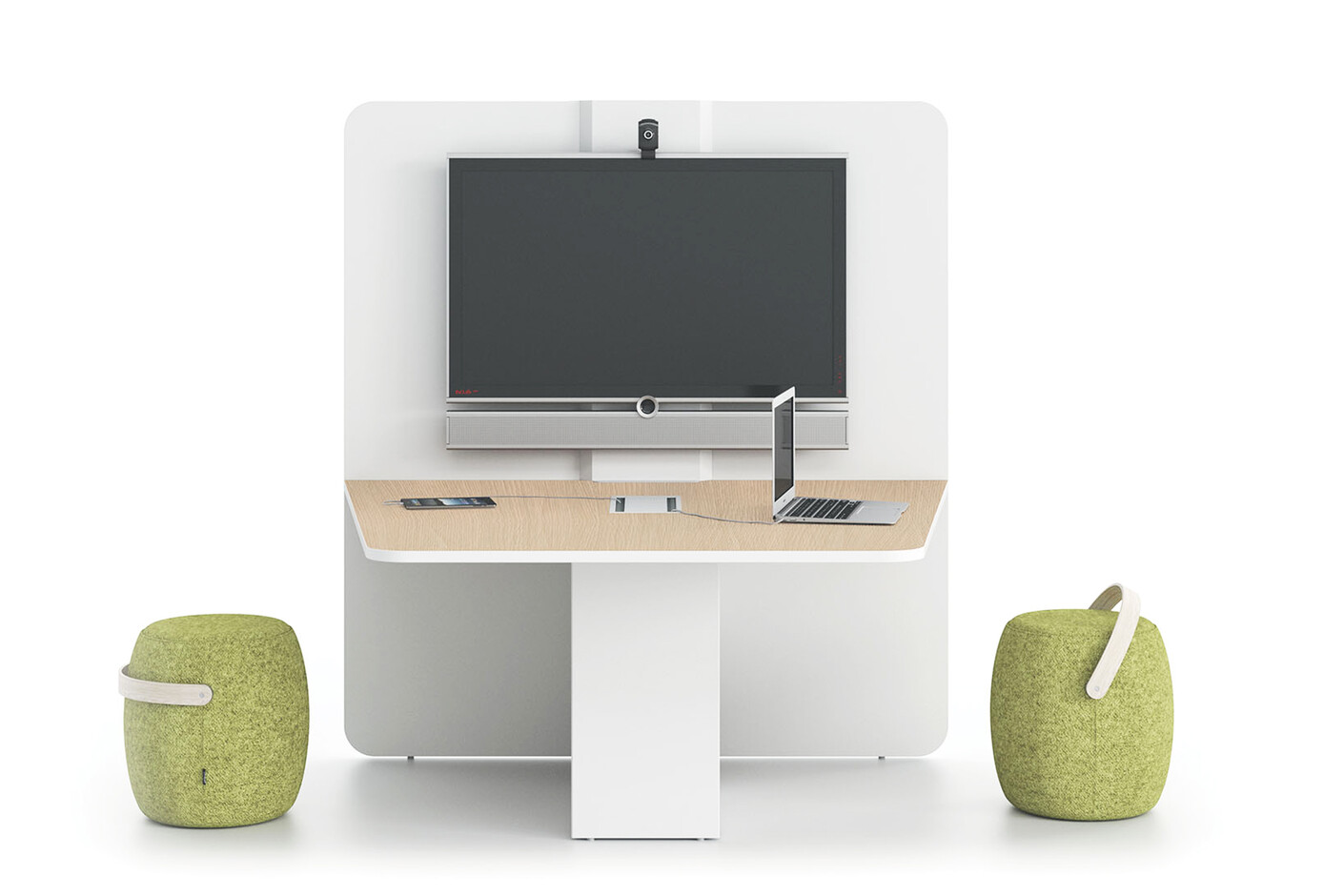

BACK PANEL: Made of 25 mm thick wood conglomerate coated with white melamine, light grey, light oak, dark oak, tobacco oak, walnut, umber orblack mat melamine, with 2 mm thick ABS edge profiles or with matching color or white. Rounded corners, 80 mm radius. Standardlevelling feet made of ABS 10 mm h., or 20 mm h. on demand, in case a better cooling of the electronic parts it is needed.At the back panel a casing of bent metal sheet 1.5 mm thick painted white, aluminum or anthracite is attached; it is prepared for wiremanagement and for the fastening of monitor and webcam.

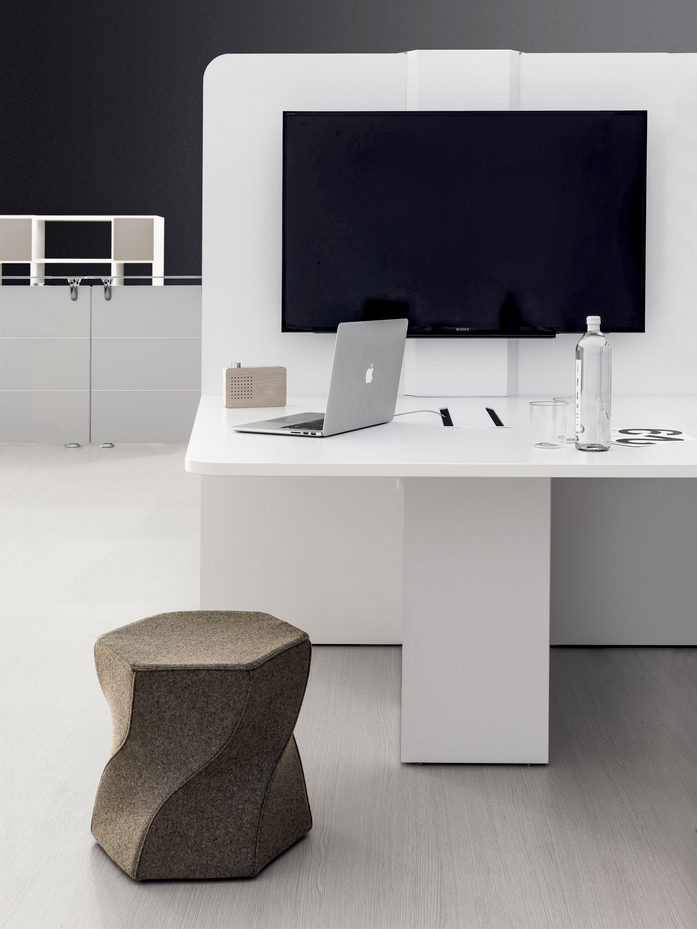

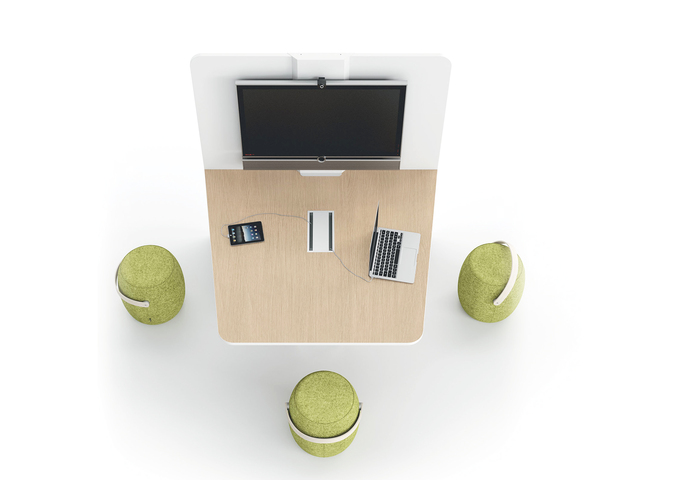

WORKTOP: Available in height 74 cm or 107 cm.It is made of 25 mm thick wood conglomerate coated with white melamine, light grey, light oak, dark oak, tobacco oak, walnut, umberor black mat melamine, with 2 mm thick ABS edge profiles or with matching colour or white. Trapezoidal shape with 2 rounded corners,80 mm radius. The worktop is equipped with a central top-access with openable door on two sides to permit the exit of the cables onthe work surface.

UNDERTOP PEDESTAL: Consist of three elements made of 25 mm thick wood conglomerate coated with white melamine, light grey, light oak, dark oak, tobaccooak, walnut, umber or black mat melamine, with 2 mm thick ABS edge profiles. Standard levelling feet made of ABS 10 mm H., or 20mm H. on demand, in case a better cooling of the electronic parts it is needed. Compartment inspectable by means of an “openable”fourth element (with the same features of the previous elements). Outlet lids in white ABS. Inside the pedestal a bent metal sheet tray15/10 mm thick, painted white or aluminium, it is provided for the ordered placement of multimedia devices and wiring.

FASTENING PLATE: It is possible to adapt the monitor-holder plate to the screen provided by the end-user, with specific indication.

HARDWARE E SOFTWARE: On demand, the study and supply of hardware and software it is possible.

Specifications
Height740 mm / 1070 mm
Table finishwith corpus


Manufacturer:
DVO, Italy

Design:
Antonio Morello

Printed catalogue

Please fill in the form to request a printed catalogue.

For more informations, please refer to our Privacy Policy.

PDF catalogue

Please fill in the form to request a PDF catalogue.

For more informations, please refer to our Privacy Policy.

Estimate

Please fill in the form.

For more informations, please refer to our Privacy Policy.
Downloads

for DV401 E-Media

File formatFile nameSizeDownload
CADTextures.zip11.76 MB
CADDV400_RFA.zip1.54 MB
PDFDV401_info_technical.pdf113.46 KB
