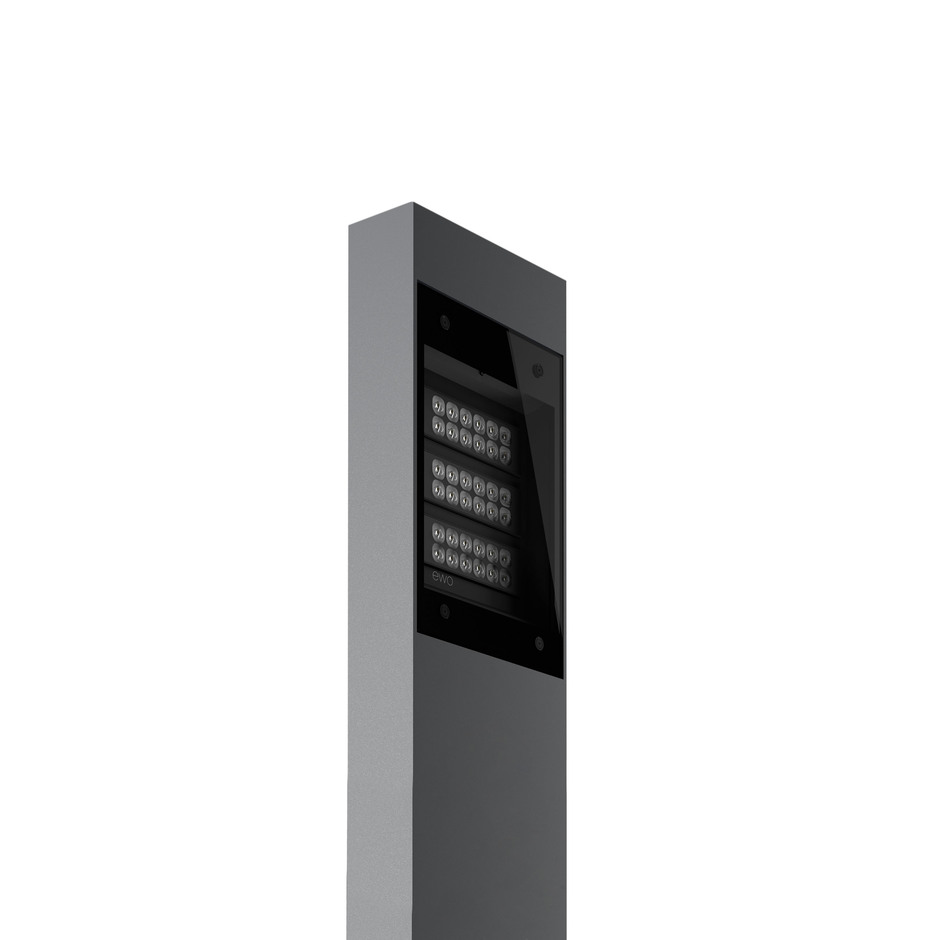

EL bollard

Stylepark-ID:04.1351.00053
Categories: Outdoor lightingBollard lights
Product description

- Housing accommodates up to 3 LED lighting units (LED Board: 12 LED) per element

- Current feed: 200 mA–600 mA, depending on ambient temperature

- Electronic operating device with DALI interface, 1–10 V or stand-alone programming

- LED light units in the façade element can be adjusted continuously (± 20 degrees)

- Various light distributions for area, high bay, street or walkway lighting

- AH02, AP07, AS06, AS07, AS08 (also available in satiné version)

- Lens made from PMMA, with aluminum support plate

- Recessed in stainless steel, frameless cover in single-pane safety glass (ESG)

- Pole: extruded aluminum profile (optional COR-TEN steel sheet) with cable insertion opening, junction box and service door

- Finish: polyester powder coating, silver-gray (RAL 9007/DB 702), other colours upon request (optional COR-TEN steel)

Specifications
Stand/ mountingfixed mounting
Diffuser/reflector shaperectangular
Materialstainless steel


Manufacturer:
ewo, Italy
