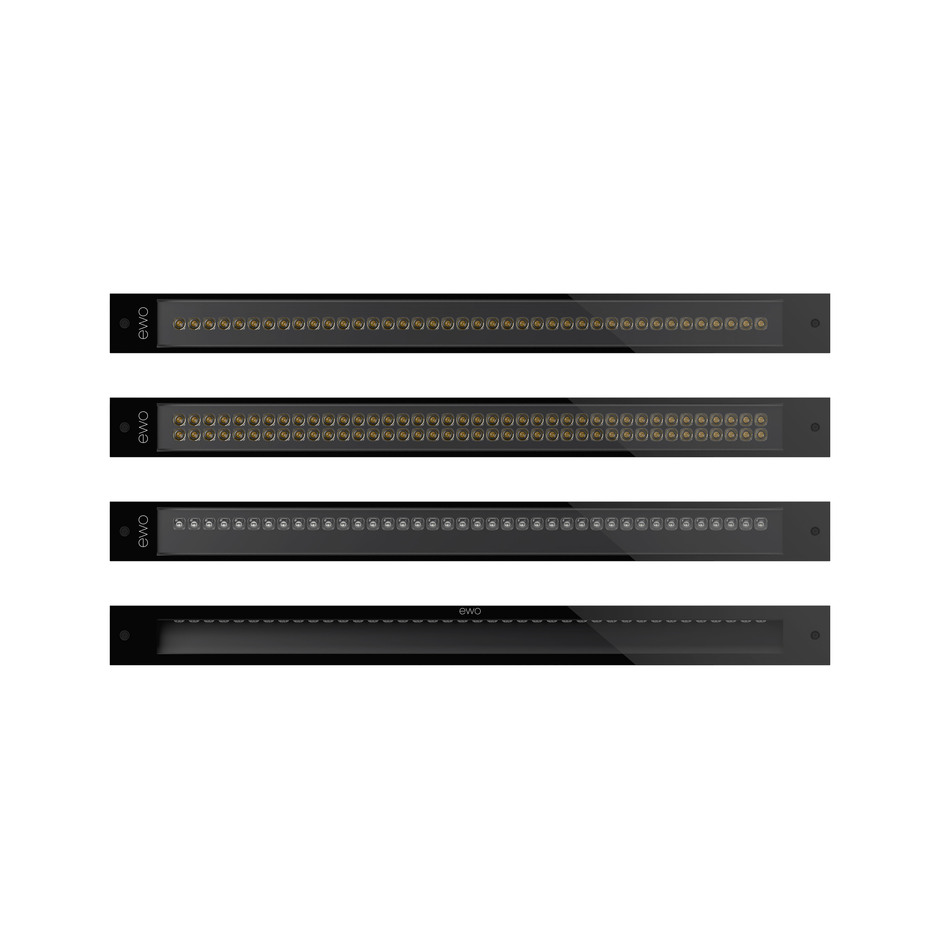

IN

Product description

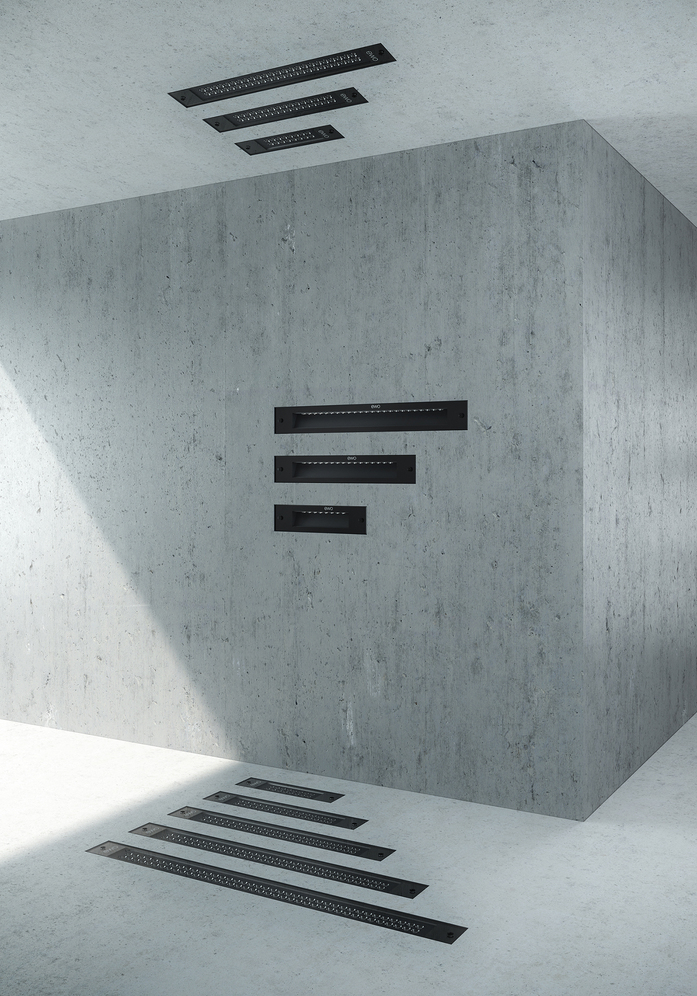

The IN lighting system can be built in flush and without visible screws or fasteners. Thanks to the modular system, different emission characteristics are possible. The IN system with its flat surface comes in five models with three mounting variants. The precise, flush integration into the housing allows architects and lighting designer’s complete freedom with the design of the exterior space without pushing it into the foreground as the object of attention.

- Housing accommodates up to 5 LED lighting units (Platine: 8 / 16 LED

- Current feed: 200 mA–500 mA, depending on ambient temperature IN 1: 200 mA–500 mA / IN 2: 200 mA–400 mA / IN 3: 200 mA–400 mA IN 4: 200 mA–400 mA / IN 5: 200 mA–350 m

- LED lighting unit adjustable ± 5°

- Electronic operating device with DALI interface, 1–10 V or stand-alone programming

- Various light distributions for area, high bay, walkway or indoor lighting

- AH02, AP07, AG01, AG02, AG03, AG04, AS06, AS07, AS08 (also available in satiné version, spot optics excluded)

- Lens made from PMMA, with aluminum support plate

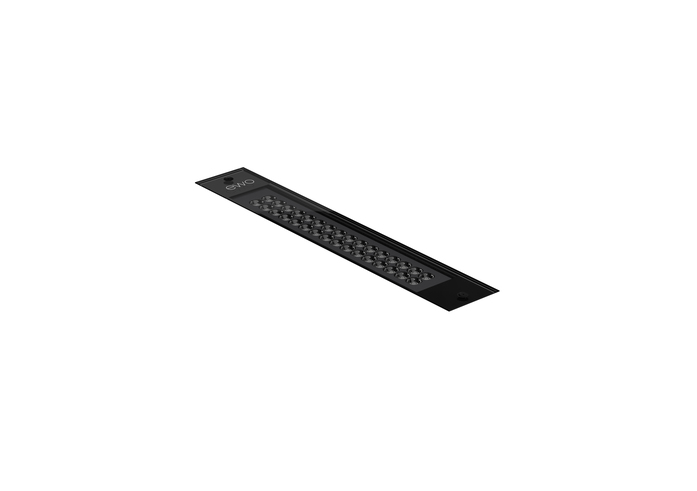

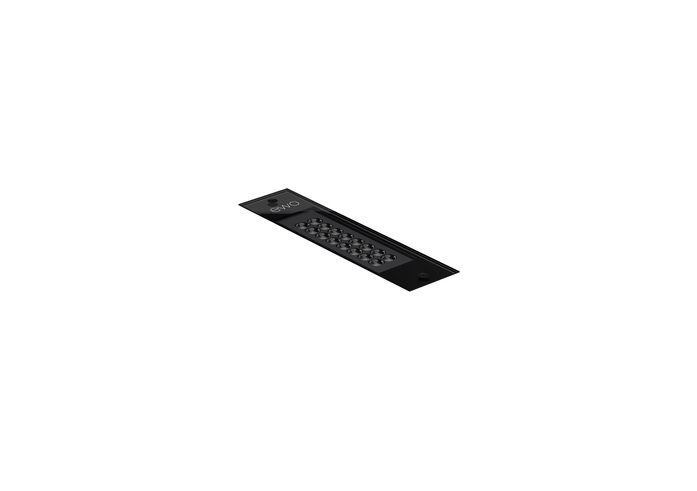

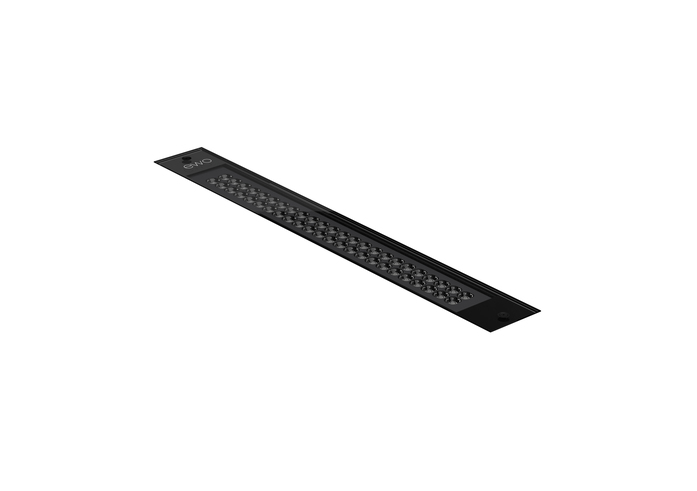

- 5 Models: IN 1 / IN 2 / IN 3 / IN 4 / IN 5

- Housing in cast aluminum, cover in single-pane safety glass (ESG)

- Lamp housing in aluminum

Specifications
Stand/ mountingfixed mounting
Diffuser/reflector shaperectangular
Materialaluminium
glass


Manufacturer:
ewo, Italy
