On-tile ventilation

On-tile ventilation
Product description

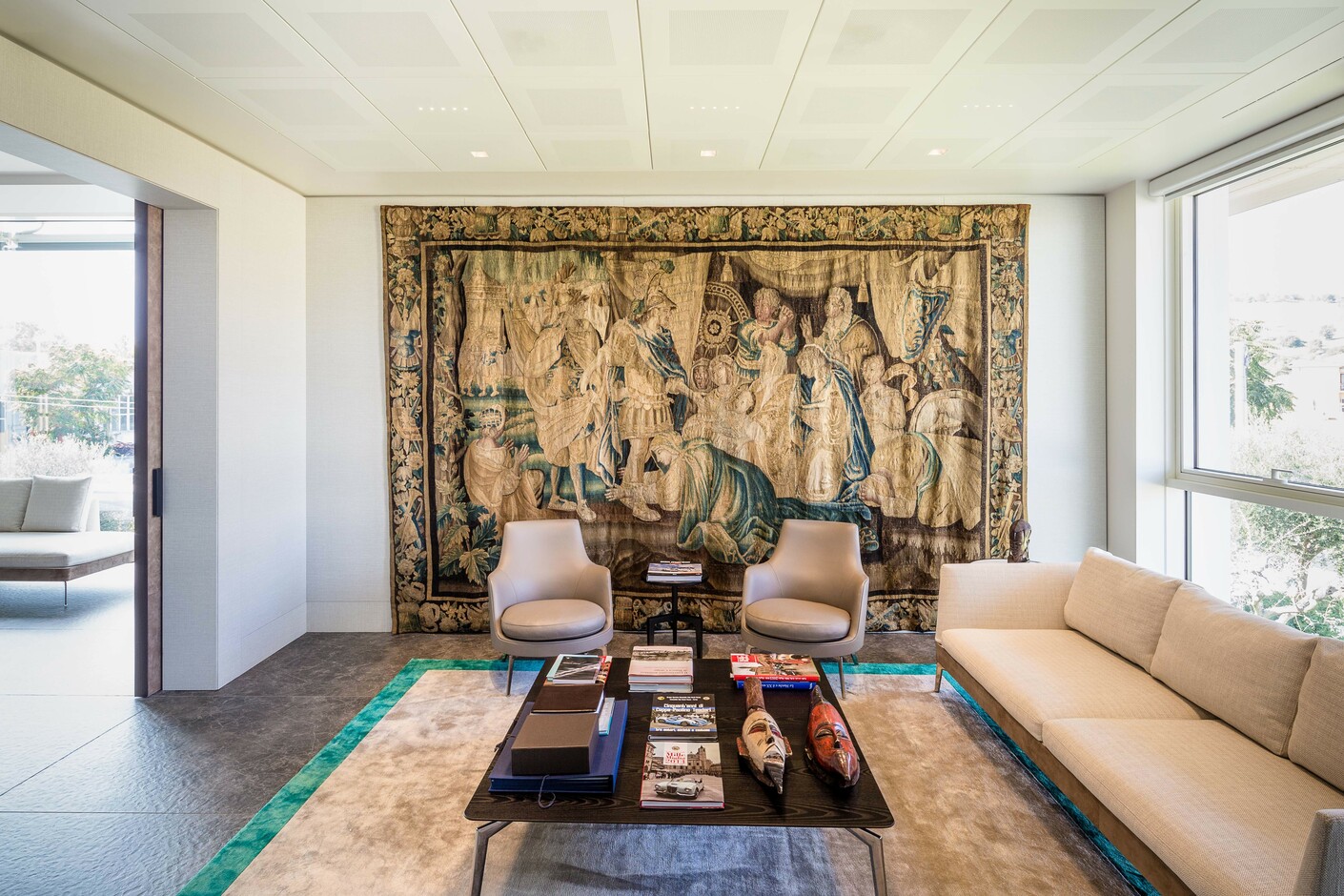

Ventilation has become an essential part of any building design. Often this is translated into a purely technical solution, overlooking the importance of design. The provision of air diffusers within the Kreon Ceiling Solutions family provides an elegant answer to a service integration which is often problematic in appearance and difficult to harmonise. Kreon offers a selection of air diffusers that range from invisible on-tile combinations to discreet linear grills that can be installed between tiles or at the margins of ceiling rafts.

Kreon provides comfortable, silent, efficient and aesthetically pleasing ventilation solutions. All diffusers can be used for the supply or return of cooled or warm air. Our experts guide you to the best solution for your needs and help you make the right choice.

Fuo C2 and Fuo C5 are completely invisible diffusers. They are integrated onto the Kreon ceiling tiles using the standard perforations to introduce the air into the room.

Fuo C2
Fuo C2 is a circular steel diffuser with an inducing effect over 360°, invisibly integrated into the Kreon ceiling and uses the same ceiling perforations to introduce air into the room. Because of the specific air pattern, pollution of the ceiling is reduced to a minimum. The air connection can be made directly with a top-connection or with an insulated or non-insulated plenum with side connection.
■ Invisible diffusor
■ 360° inducing effect
■ Top or side connection plenum

Fuo C5
The adjustable circular diffuser Fuo C5 is used for the supply of cooled or heated air with a high temperature difference in respect to the room temperature. This high inducing diffuser can be mounted in the ceiling and is used in facilities such as offices and shopping centers where simple adjustment of the air pattern is required. Because of the separate deflector plates it is possible to have an adjustable air pattern in 1, 2, 3 or 4 direction(s). The diffuser is invisibly integrated into the Kreon ceiling and uses bigger perforations (R5) to introduce air into the room. The air connection can be made directly with a top-connection or with an insulated or non-insulated plenum with side connection.
■ Invisible diffusor
■ Adjustable air pattern in 1, 2, 3 or 4 directions
■ Adapted for temperature differences of up to -10K

Specifications
Materialmetal
plastics
Colorsblack
white
shades of grey


Manufacturer:
Kreon, Belgium
