Tube38 endless LED

Product description

Tube38 LED endless

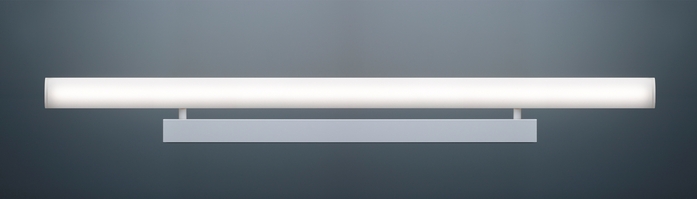

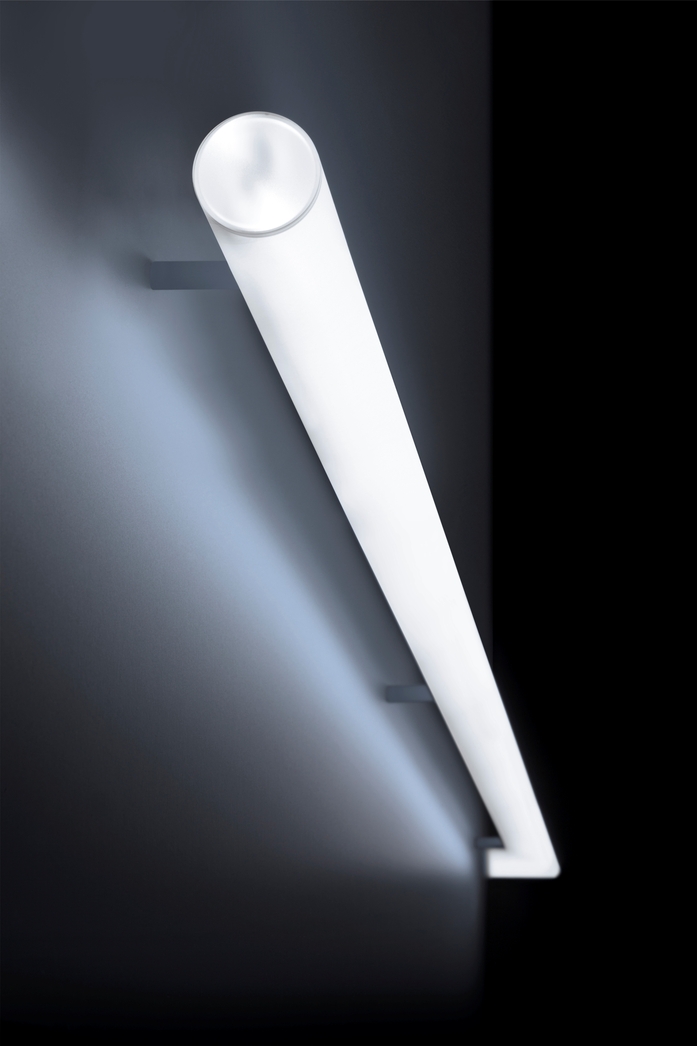

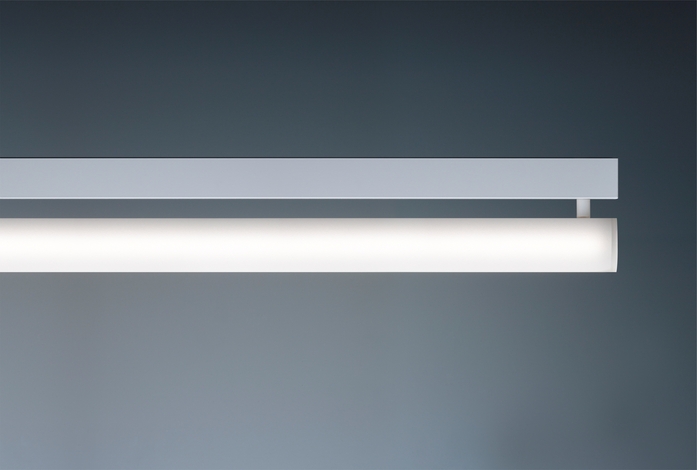

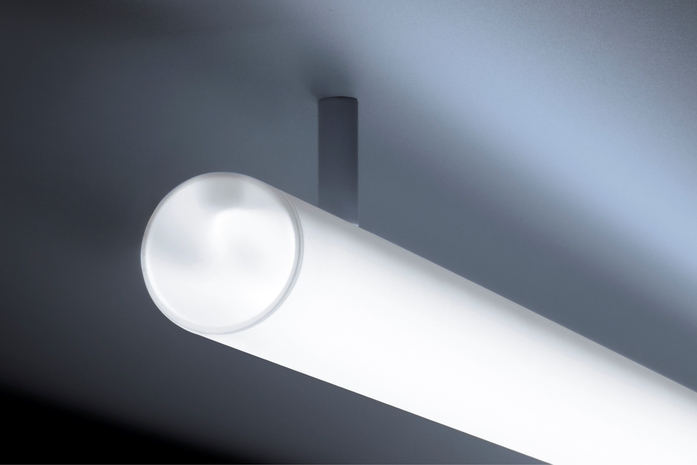

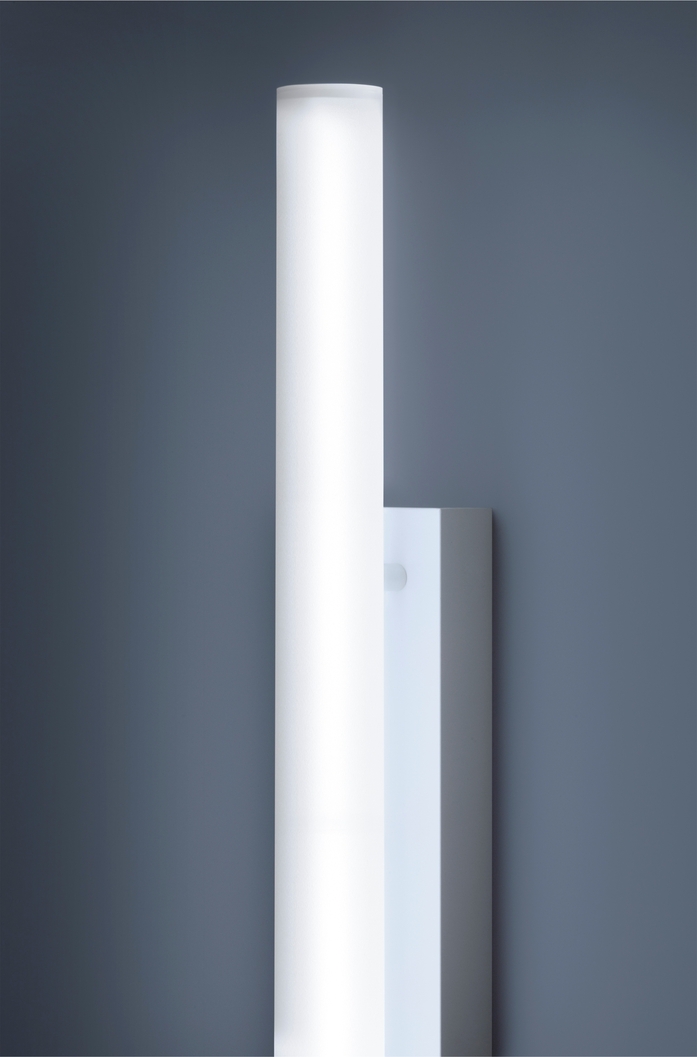

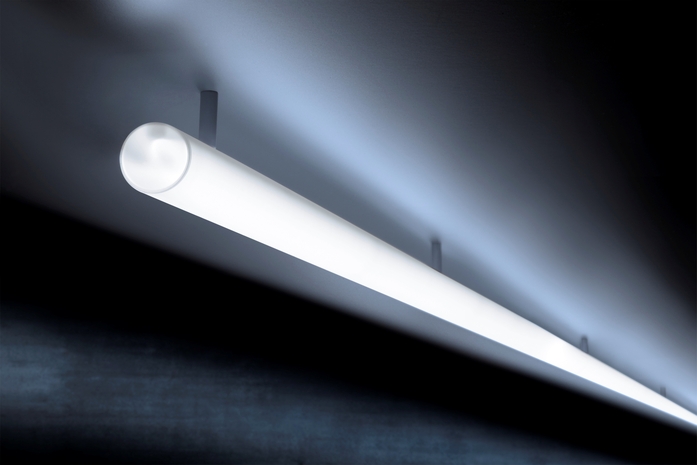

Tube 38 light tubes glow evenly up to their ends. The light tubes up to 3000mm length can be mounted together continiously. 90 ° angle elements also glow endlessly "around the corner". Tube 38 is supplied with filigree brackets and acts as if mounted floating on the wall or ceiling. Various fastening elements for hollow ceilings, concrete and masonry are available for flush- or surface-mount installation. The light tubes - consisting of a diffuser material with high light transmission, very good light scattering and color matching - create a consistent light. Light colors from 2700k, 3100k, 4100k, 6000k to bicolour 2700-5700k can be selected. The power per meter is 15W with 1200lm, 20W with 1440lm or 29W with 2640lm. The light tubes are dimmable. The power supplies have a universal DALI and 1-10V interface.

Customizing is standart.
We produce tube 38 light tubes individually for your projects in desired lengths, colors and with selected lighting technology.

Specifications
Light regulationstepless dimmer
Stand/ mountingfixed mounting
Diffuser/reflector shapecircular
Length0 - 3000 mm
Diameter38 mm
Form of protection (DIN 40050)IP20 protection against: solids > 12 mm
Safety classclass I (protective earthing)
class III (protective low voltage)
Fire prevention classesF
Materialaluminium
plastics
Colorsshades of grey
silver


Manufacturer:
LFF Licht Form Funktion, Germany

Design:
Achim Jungbluth
2017

Printed catalogue

Please fill in the form to request a printed catalogue.

For more informations, please refer to our Privacy Policy.

PDF catalogue

Please fill in the form to request a PDF catalogue.

For more informations, please refer to our Privacy Policy.

Estimate

Please fill in the form.

For more informations, please refer to our Privacy Policy.
Downloads

for Tube38 endless LED

File formatFile nameSizeDownload
PDFTube_38_LED.pdf1.78 MB
Downloads

by LFF Licht Form Funktion

File formatFile nameSizeDownload
PDFlffkatalog_ml_pdf_h.pdf5.82 MB
