Keplero Zoom

Presented: Light+Building 2014, Frankfurt
Stylepark-ID: 04.1276.00013
Categories: Interior lightingBuilt-in lightsCeiling built-in lights
Product description

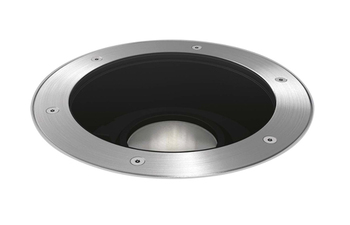

Professional inground recessed adjustable LED projector. Die cast black aluminium body anodized. Brushed stainless steel (AISI 316) ultraflat decorative ring with beveled edge. Extra clear protective glass tempered (thickness 10 mm) complete with silicone

gasket. Anti theft stainless steel A2 Torx screws. 5000 Kg resistance against static load. 20J resistance against dynamic load. Zoom optical system with the possibility of sliding and locking on the vertical axis according to four different positions tha

t are related to four different beam apertures. The light beam can be adjusted up to 20° on the vertical plan and 360° on the horizontal one with integrated locking system. Optic group pre-set for the installation of one or more dedicated optical accessor

ies to be ordered separately. Installation sleeve made of grey polycarbonate to be ordered separately as accessory. The sleeve is preset for a flush or straight edge installation according to the exigency. Electronic power supply IP68 integrated. The driv

er’s housing comes complete with dedicated IP68 waterproof connectors for the connection to the main with H07RN-F (2x1,5mm²).On request the fixture can be supplied with a special anti-slip protective glass for public pedestrian areas. DALI electronic powe

r supply available on request for minimum quantities. 110V-240V 50/60Hz

Specifications
Diffuser/reflector shape circular
Height 202 mm
Material aluminium
Colors shades of grey
