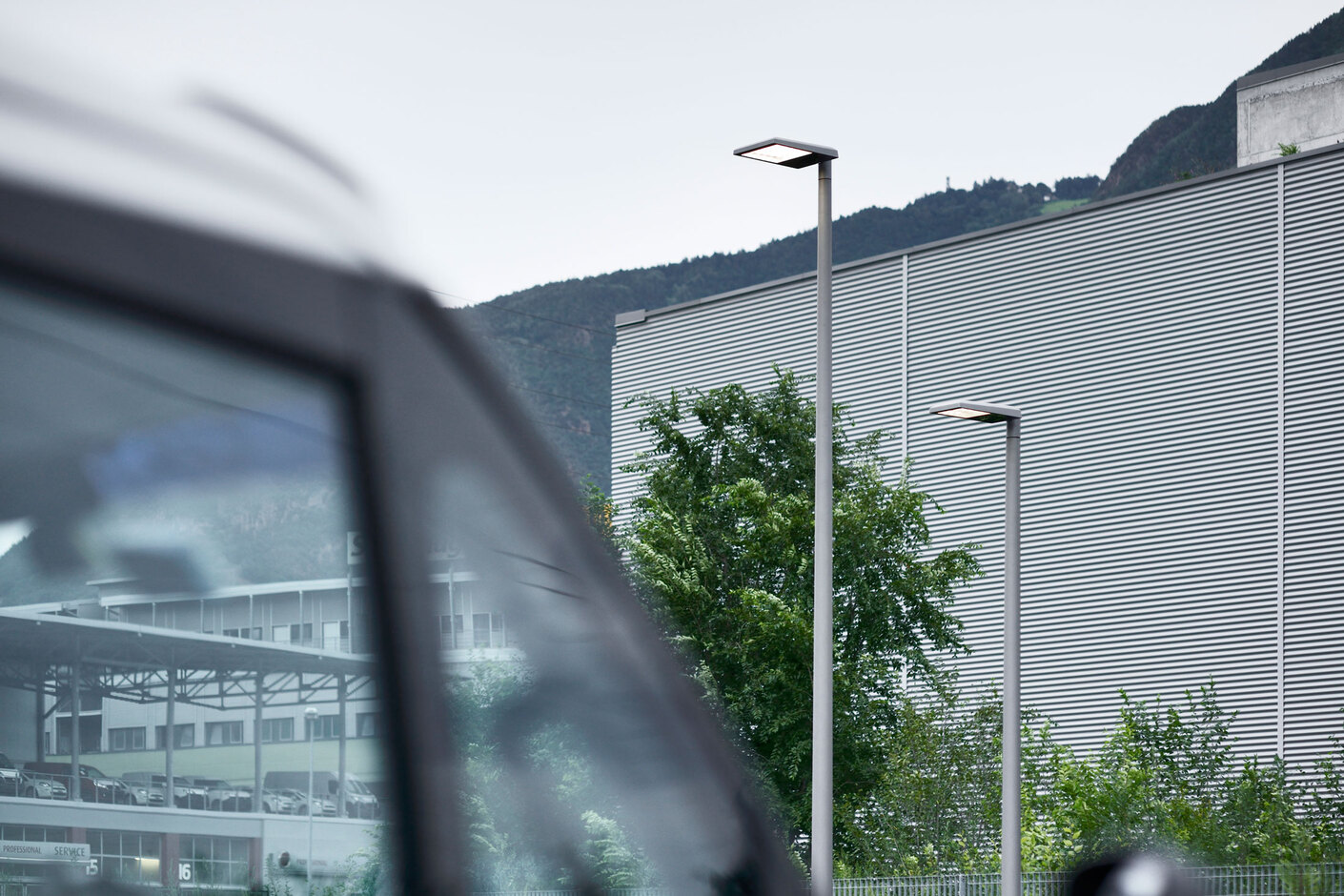

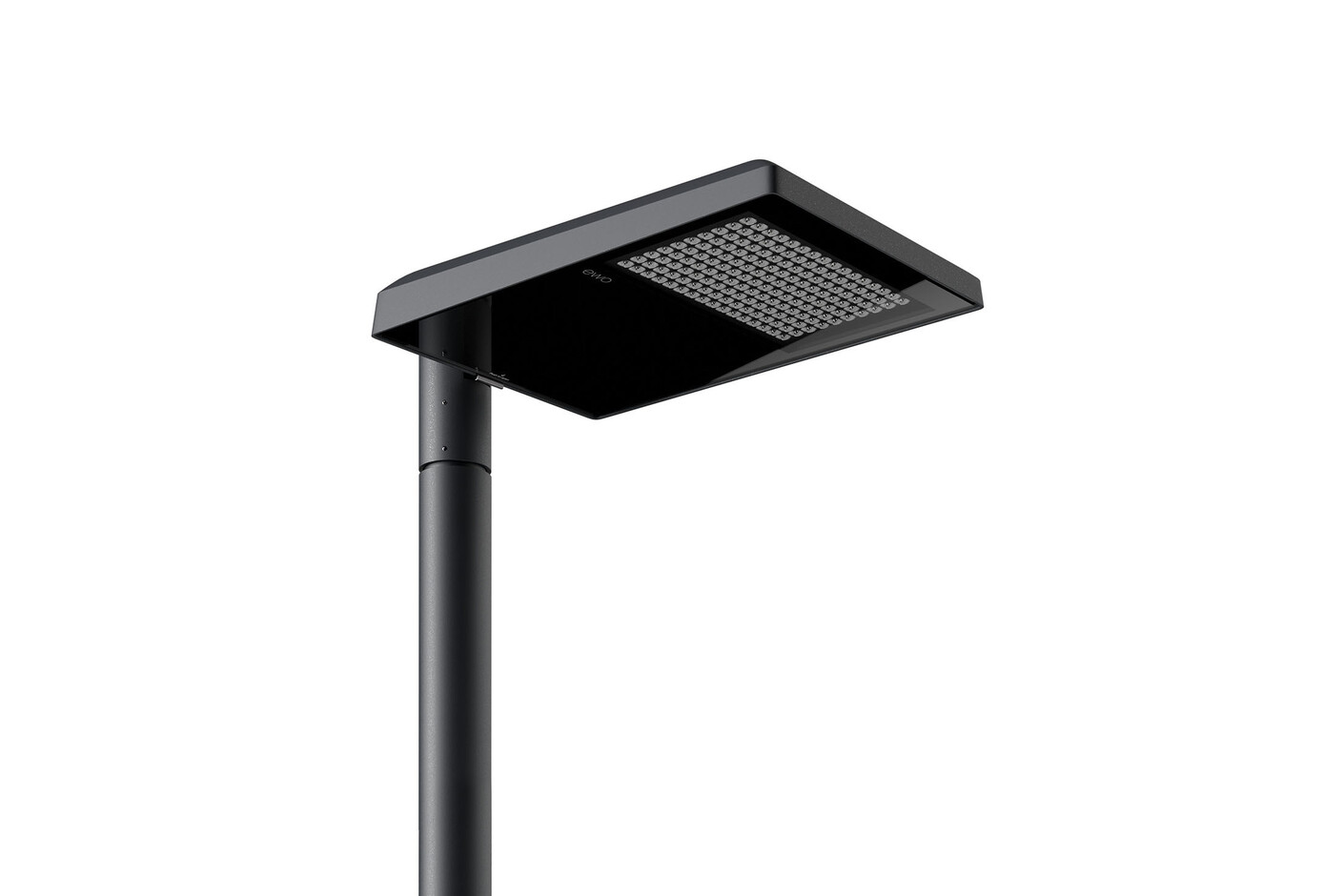

F-System M

Product description

- Housing accommodates up to 10 LED lighting units (LED Board: 96 / 128 / 160 LED)

- Current feed: 200 mA–650 mA, depending on ambient temperature (F10 max. 600 mA)

- Electronic operating device with DALI interface, 1–10 V or stand-alone programming

- Various light distributions for large area, high bay or street lighting

- AH02, AP07, AS06, AS07, AS08 (also available in satiné version)

- Lens made from PMMA, with aluminum support plate

- Cover in single-pane safety glass (ESG)

- Die-cast aluminum housing, pole adapter made of aluminum, swivels from 0 to 90° in 5° increments, for pole ⌀ 76 mm or ⌀ 60 mm

- Finish: polyester powder coating, anthracite (DB 703), other colours upon request

Specifications
Stand/ mountingfixed mounting
Diffuser/reflector shapesquare
Materialaluminium
All F-System Products


Manufacturer:
ewo, Italy
