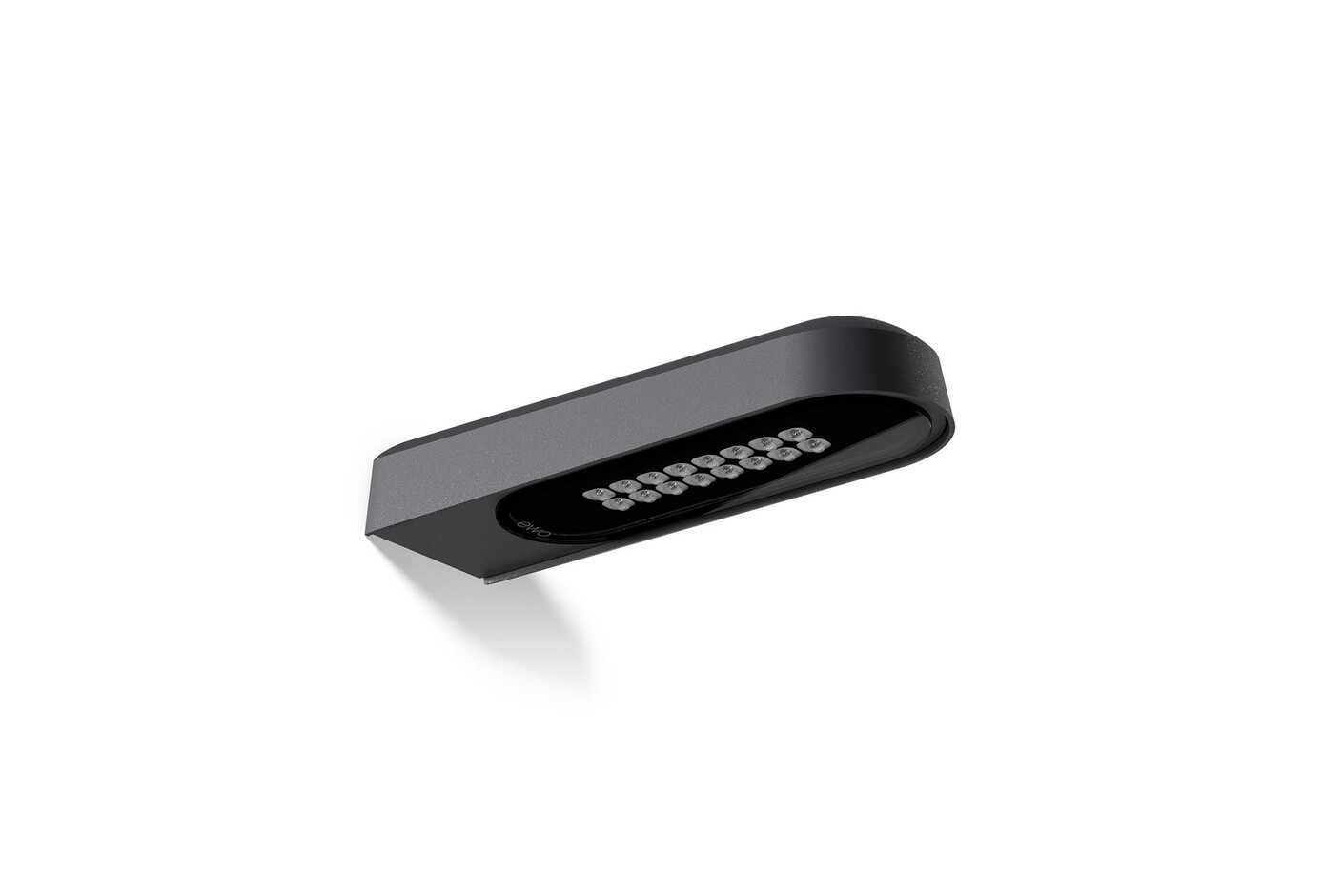

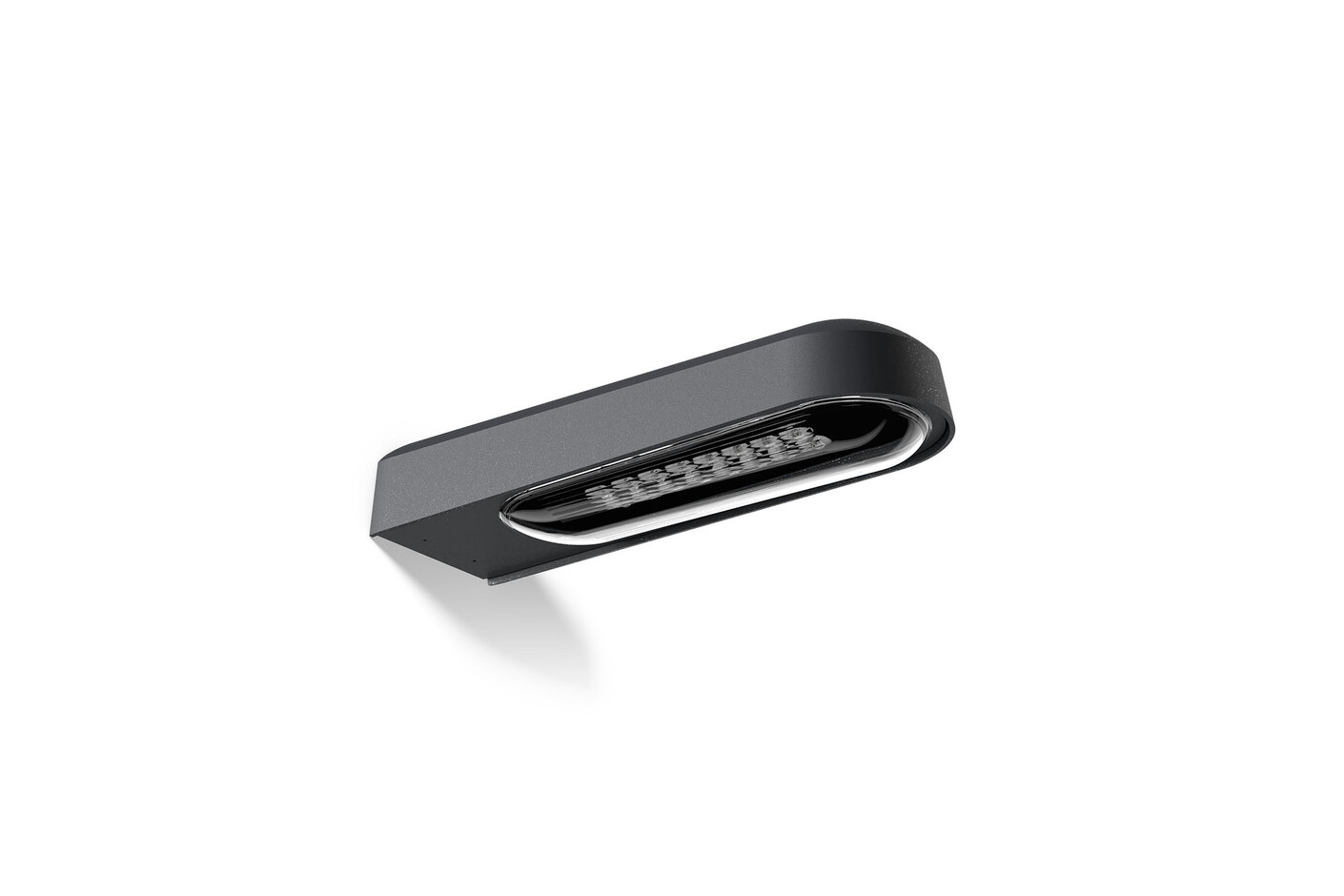

GO wall

Stylepark-ID:04.1351.00051
Categories: Outdoor lightingSurface mounted lightsWall mounted lights
Product description

- Housing accommodates 1 LED lighting unit (LED Board: 16 LED)

- Current feed: 200 mA–600 mA, depending on ambient temperature

- Electronic operating device with DALI interface, 1–10 V or stand-alone programming

- Various light distributions for area, high bay, street or walkway lighting

- AH02, AP07, AS06, AS07, AS08 (also available in satiné version)

- Lens made from PMMA, with aluminum support plate

- Cover in single-pane safety glass (ESG) or curved cover

- Housing made from die-cast aluminum

- Suitable for pole top diameter ⌀ 60mm, optional adapter for ⌀ 76mm

- Finish: Aluminum vibratory finishing, or polyester powder coating, anthracite (DB 703), other colours upon request

Specifications
Stand/ mountingfixed mounting
Diffuser/reflector shaperectangle with rounded corners
Inspection seal /certificationCE
Form of protection (DIN 40050)IP66 dust-proof/protection against: heavy seas
Safety classclass I (protective earthing)
Materialaluminium
All GO Products


Manufacturer:
ewo, Italy

Design:
Jörg Boner
2015
