LB23

Stylepark-ID:14.1351.00003
Categories: Urban spaceBollards / Feeder bollards
Outdoor lightingWalkway lights
Product description

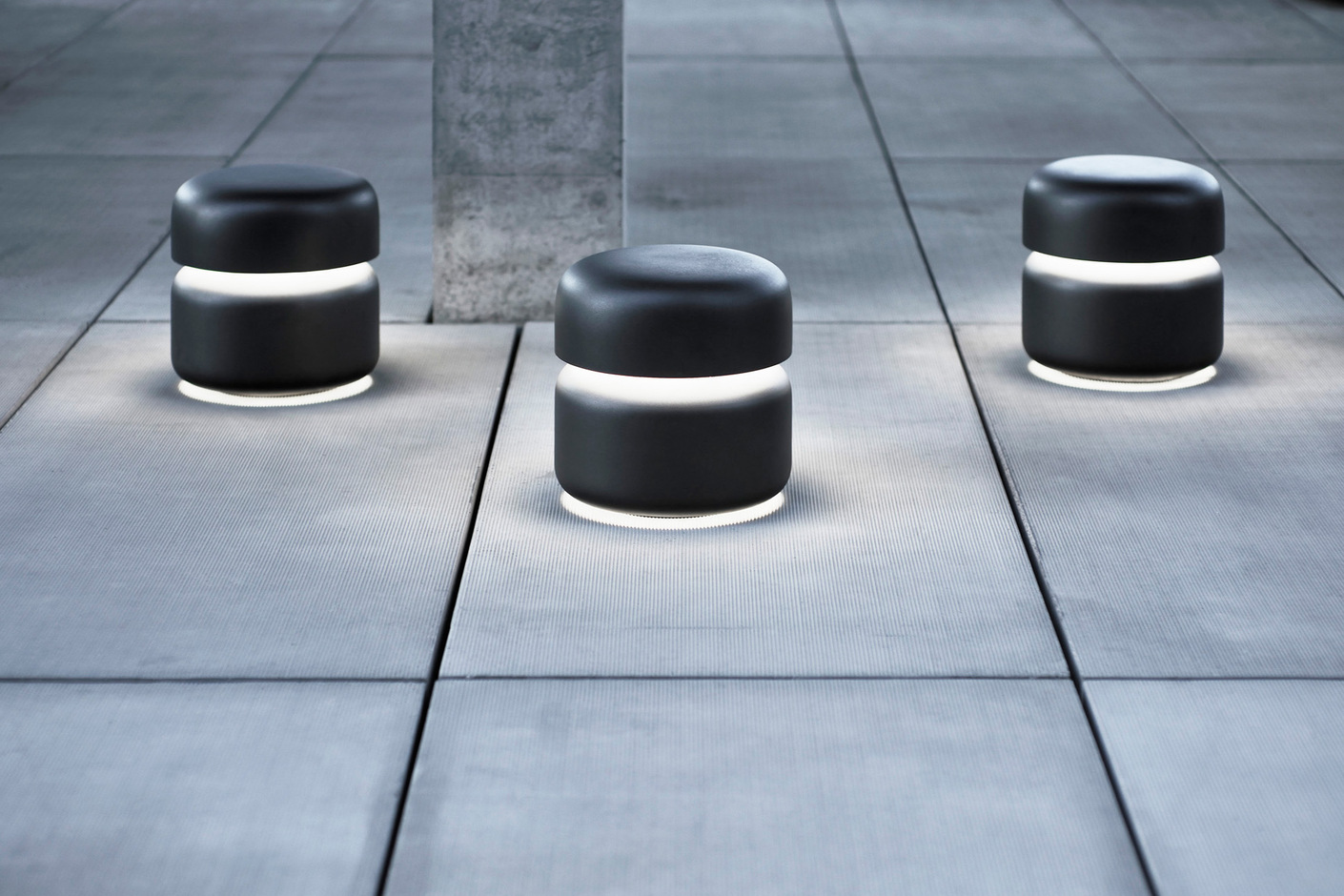

Lighting bollard/seating with symmetric light distribution
for illuminating open spaces.
Additional accent lighting at ground level.

Materials
Bollard made of hot-dip galvanized steel.
Buried base made of hot-dip galvanized steel,
flange plate made of stainless steel.
Finish: polyester powder coating (DB 703).
LED lighting unit in aluminum with transparent
glass cover.

Lighting system
1 LED module with 18 high-performance LEDs,
color temperature neutral white, 4,000 K,
connected rating 21.6 W.
Electronic control gear.

Assembly variations
Flush-mounted using buried base, alternatively
surface-mounted using flange plate.

Specifications
Height400 mm
Diameter400 mm
Weight1200 kg
Materialstainless steel
Colorsshades of grey
All LB Products


Manufacturer:
ewo, Italy

Design:
Norway Says
2009
