Linea 2

Presented: Euroluce 2009, Milan
Stylepark-ID: 04.1137.10513
Categories: Interior lightingLighting systemsGeneral lighting
Product description

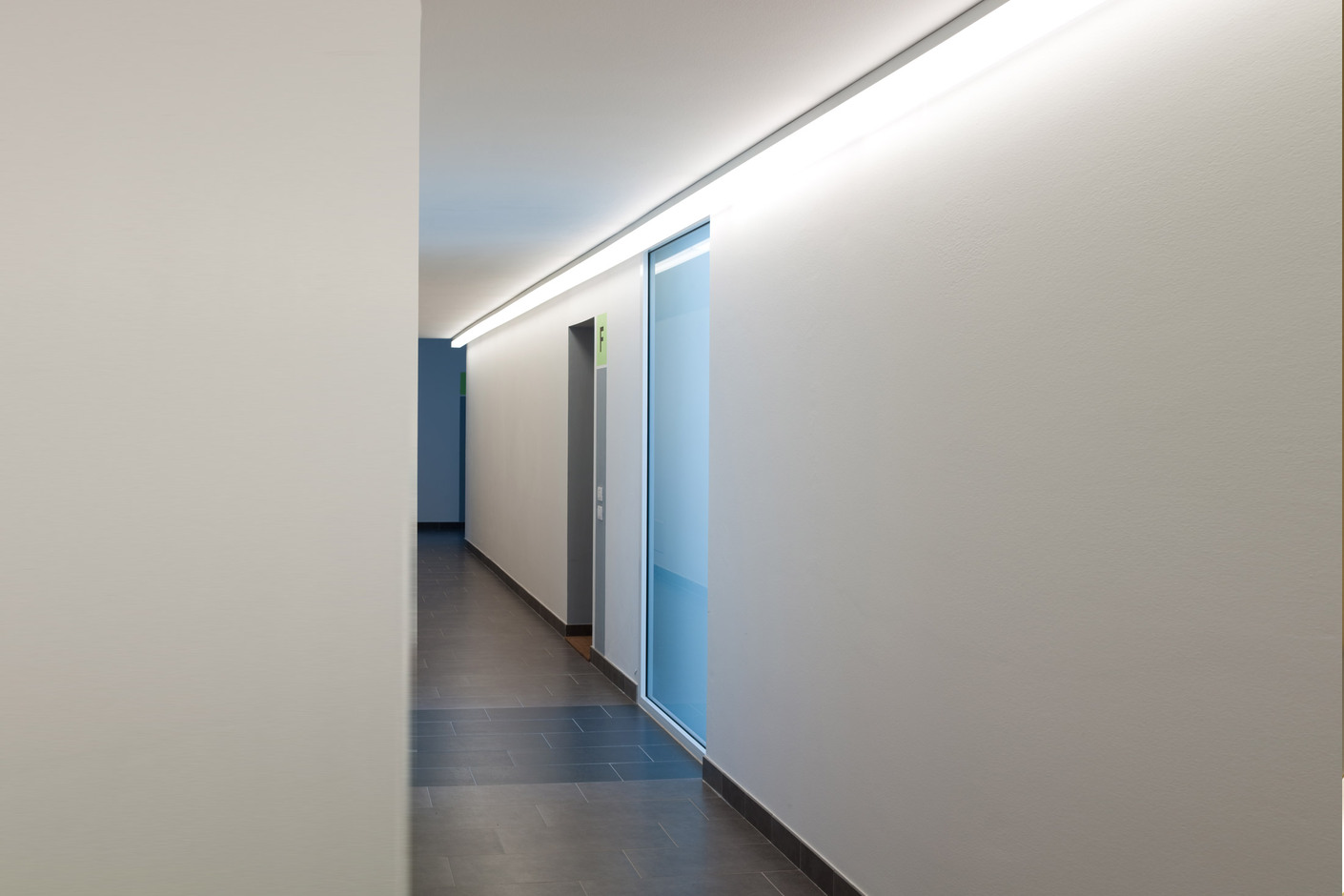

Modular system for wall lamp with diffused light. ody made of natural anodized aluminum equipped with opal selfextinguishing polycarbonate diffuser, available in four linear lengths and as angular configuration: 90° or 270° equipped for the housing of electrified reglettes for linear fluorescent T5 24W 39W,54W or 80W lamps. Each reglette has its own electronic power supply DALI unit and electric quick connections. Closing plugs are supplied as accessories. The installation in a continuous line is possible thanks to the connection joints incorporated in the bodies. The system allows the lamp holders to be overlapped ensuring uniform and uninterrupted lighting without any shadow zones. The overlapping of the reglettes is allowed for a maximum of 10 cm. Maximum wattage for each supply line 500W.

Specifications
Fittings
Diffuser/reflector shape rectangular
Inspection seal /certification CE
Width 600 mm / 900 mm / 1200 mm / 1500 mm
Height 100 mm
Form of protection (DIN 40050) IP20 protection against: solids > 12 mm
Fire prevention classes F
Material aluminium

Manufacturer:
FontanaArte, Italy

Design:
Dante Bonuccelli
2009
