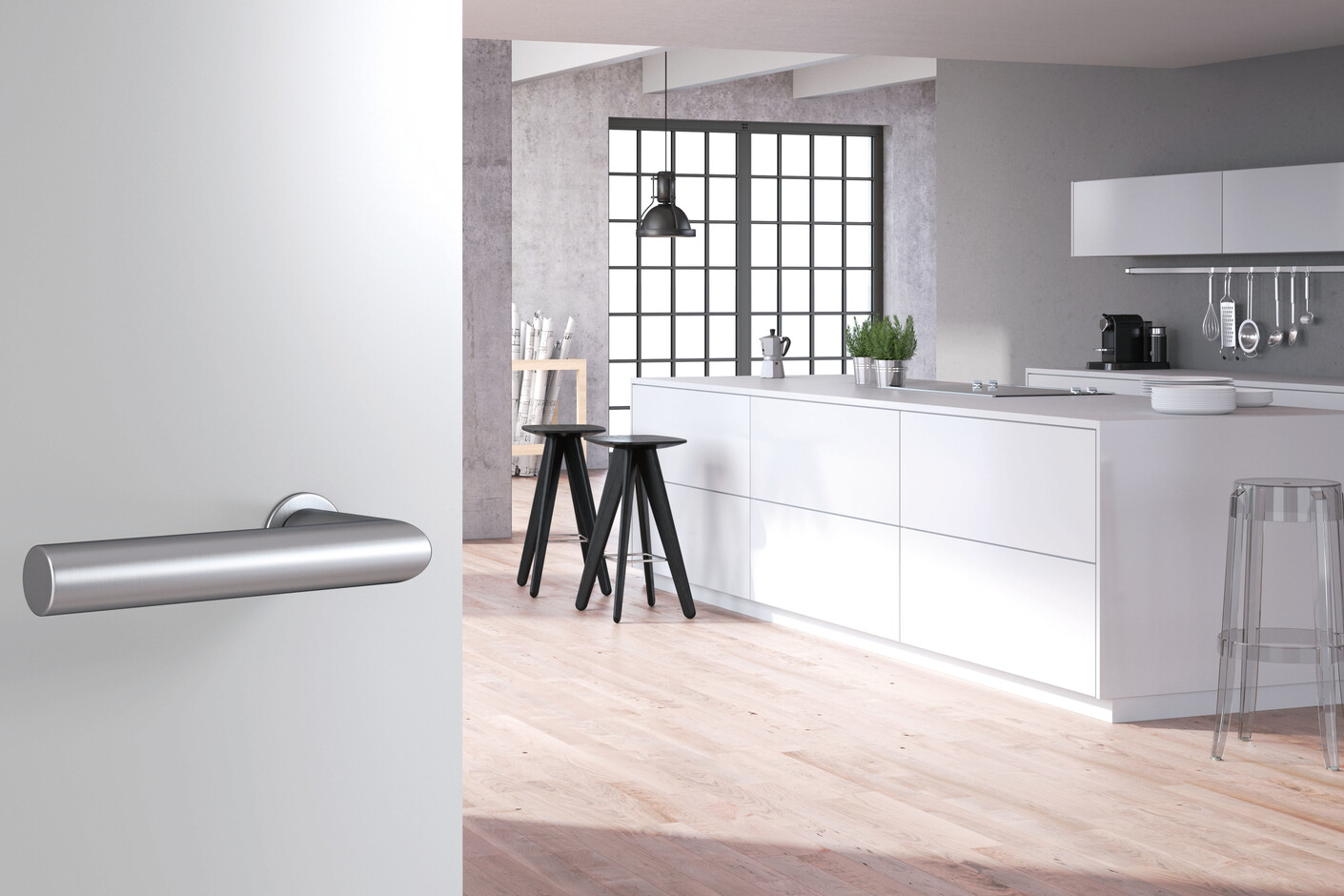

Door lever fitting satin

  • Door lever fitting satin
  • Door lever fitting satin
Stylepark-ID:02.2372.00196
Categories: Fittings › Door fittings
Product description

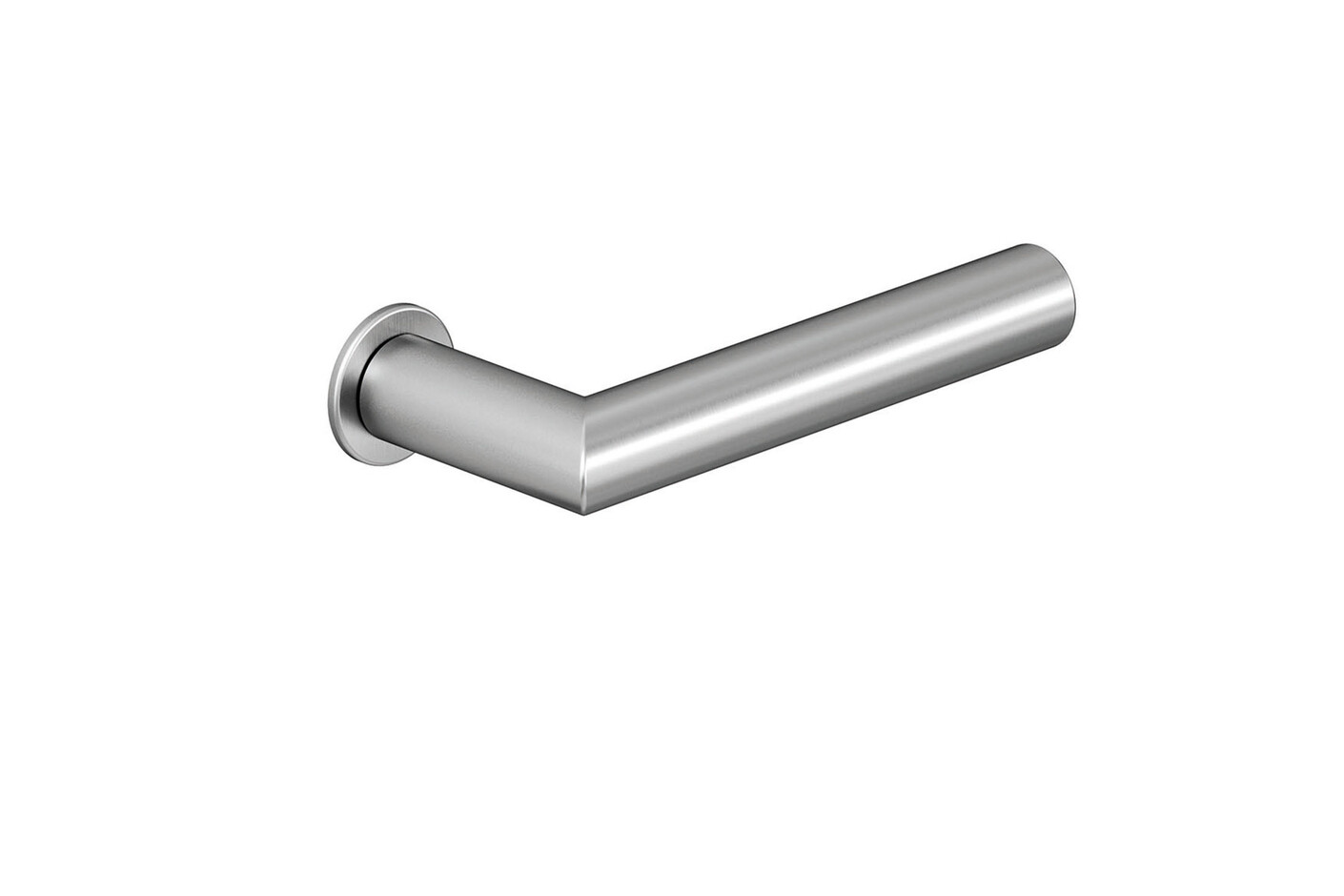

Lever handle fitting with flat rose, cap made of stainless steel, diameter 32 mm, consisting of: Lever handle design 162.21XAM made of tubular stainless steel with mitred cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with shank guide. Square spindle of the male part of the lever handle 8 mm with trapezoidal thread. Fixing of the lever handle in a press-in bearing with all-round teeth and a polyamide plain bearing bush with two lugs as anti-rotation elements in the press-in bearing. The grubscrew M5 is fixed, as additional securing of the female parts of the lever handle, in a recess in the square spindle and thus helps to achieve optimum force transfer into the door leaf. Use in conjunction with mortise locks to DIN 18251. Installation of the press-in bushes by means of a mounting nut with trapezoidal thread, AF 19. We recommend installation using an open-ended spanner, AF 19. The cut size (hole dimension) in the area of the lock follower must have nominal size 25 mm. Production tolerances of +/- 1 mm can be levelled out by the press-in bearing. We recommend mounting on residential and internal doors with HDF facing and middle layers (core) made of hollow (tubular) core particleboard or solid particleboard or higher-quality, with both non-rebated and rebated finish. We recommend installation of the mini solely on door elements tested by HEWI and the door manufacturers.

A current list of the tested door elements can be found on our website: www.hewi.de/mini. Fittings with mini roses are not suitable for use on door elements with fire protection, smoke control, burglary resistance, wet room or radiation protection functions.

- Designed and tested for the projects segment, user category to EN 1906 - Class 3

- Durability: Class 7

- Door weight: No classification specified

- Fire resistance: Class 0

- Safety: Class 0

- Corrosion resistance: Class 4

- Security: Class 0

- Design-type: U

Artikel: HEWI 162XAM06.230

UNIVERSAL DESIGN expert Award 2017

Germin Design Award Winner 2018

Iconic Award 2017 best of the best

Architects's Darling Awards 2017

All HEWI mini Products

Manufacturer:
HEWI, Germany

Design:
Hewi
2017
