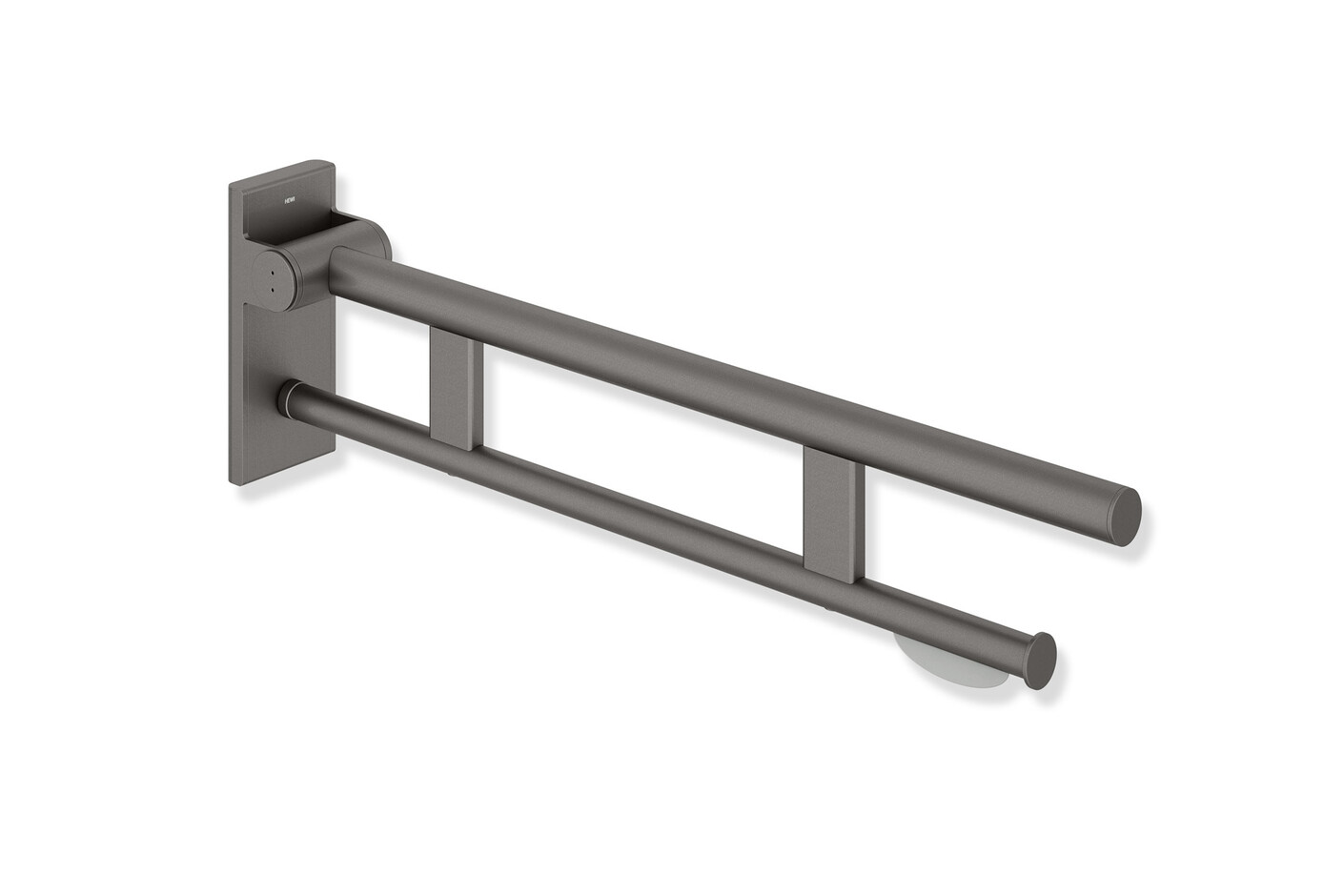

Hinged support rail Duo

Product description

Duo hinged support rail, System 900
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder
- can be folded upwards and folded downwards with braked movement
- projection 700 mm, 210 mm high and 101 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in the HEWI colours DX (matt white), DC (matt black), AY (matt light grey pearl mica) and SC (matt dark grey pearl mica)
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- floor supports 900.50.02060 and 900.50.02160 for retrofitting
- CE marking according to Directive 93/42/EEC
- fulfils the ÖNORM B1600/1601 and SIA 500 requirements

Article no.: HEWI 900.50.10660

Awards

iF Gold Award 2019; German Design Award Winner 2019; Iconic Award 2019 Innovative Archtecture; Univeral Design Winner 2019 Expert, Universal Design Winner 2019 Consumer; German Innovation Award 2019 Winner

All System 900 Products


Manufacturer:
HEWI, Germany

Design:
Hewi
2019
