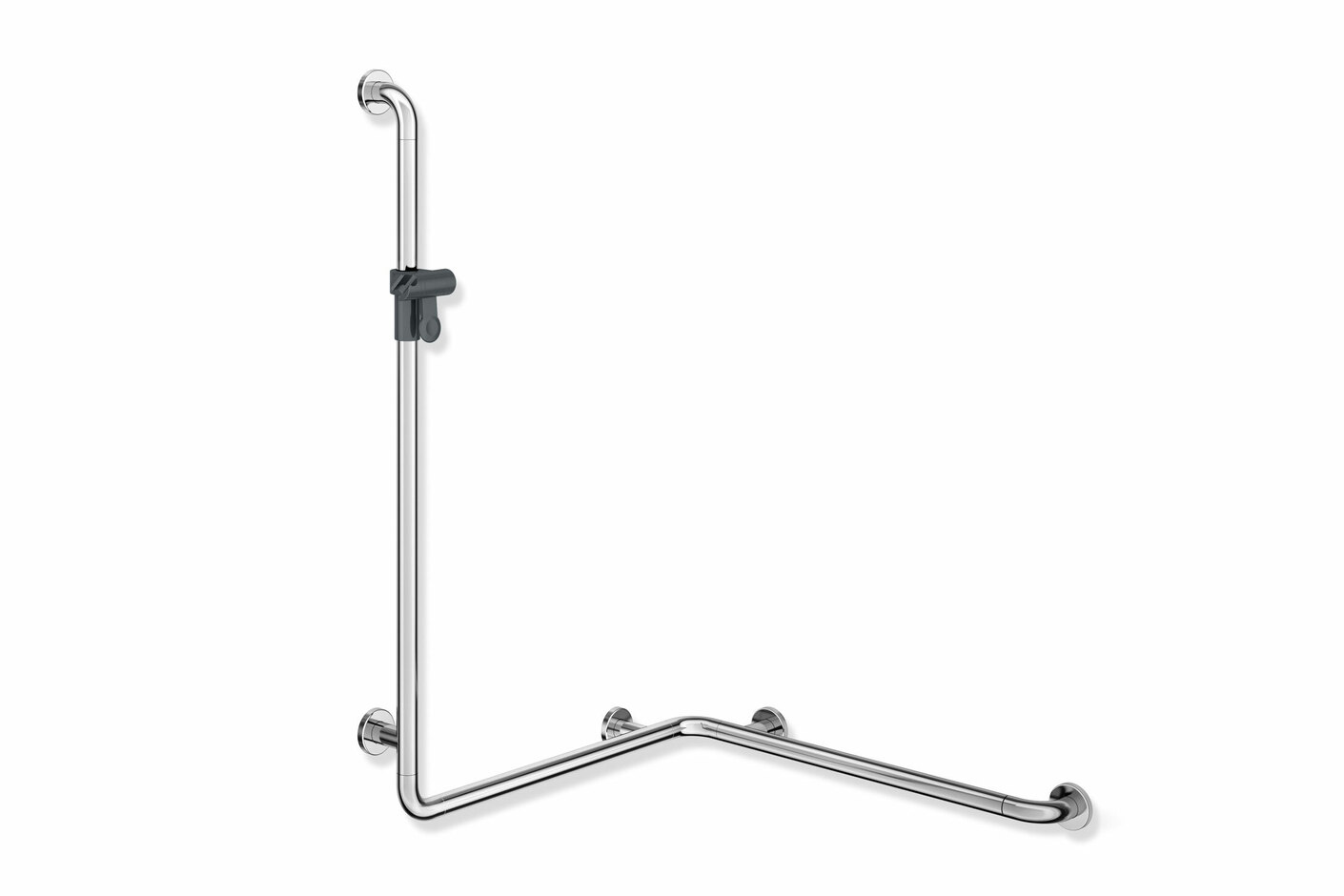

Rail with vertical support bar and shower head holder

  • Rail with vertical support bar and shower head holder
  • Rail with vertical support bar and shower head holder
Product description

⋅ made of high-quality chrome-look coated polyamide
that is warm to touch
⋅ vertical and horizontal rails joined to form an L shape
and fitted with rose fixings and a shower head holder
⋅ used in the shower and bathtub area to grip on to and
for support
⋅ vertical length of 1100 mm, horizontal lengths 762 mm
⋅ 88 mm deep, clear distance to the wall 55 mm, bar
diameter 33 mm, rose diameter 70 mm
⋅ suitable for shower heads of various manufacturers
⋅ shower head holder made of high-quality polyamide in
HEWI colour 92 (anthracite grey)
⋅ shower head holder can be continuously tilted and,
after pulling or pushing a large lever, its height can be
adjusted
⋅ conical adapter on shower head holder makes it easier
to hook in the shower head
⋅ with continuous, corrosion resistant steel core
⋅ for wall mounting with special HEWI fixing materials
and roses
⋅ can be mounted in left-hand or right-hand position
⋅ suitable for all HEWI hanging seats, hanging seats
801.51...110 and 801.51...115 only on W1
