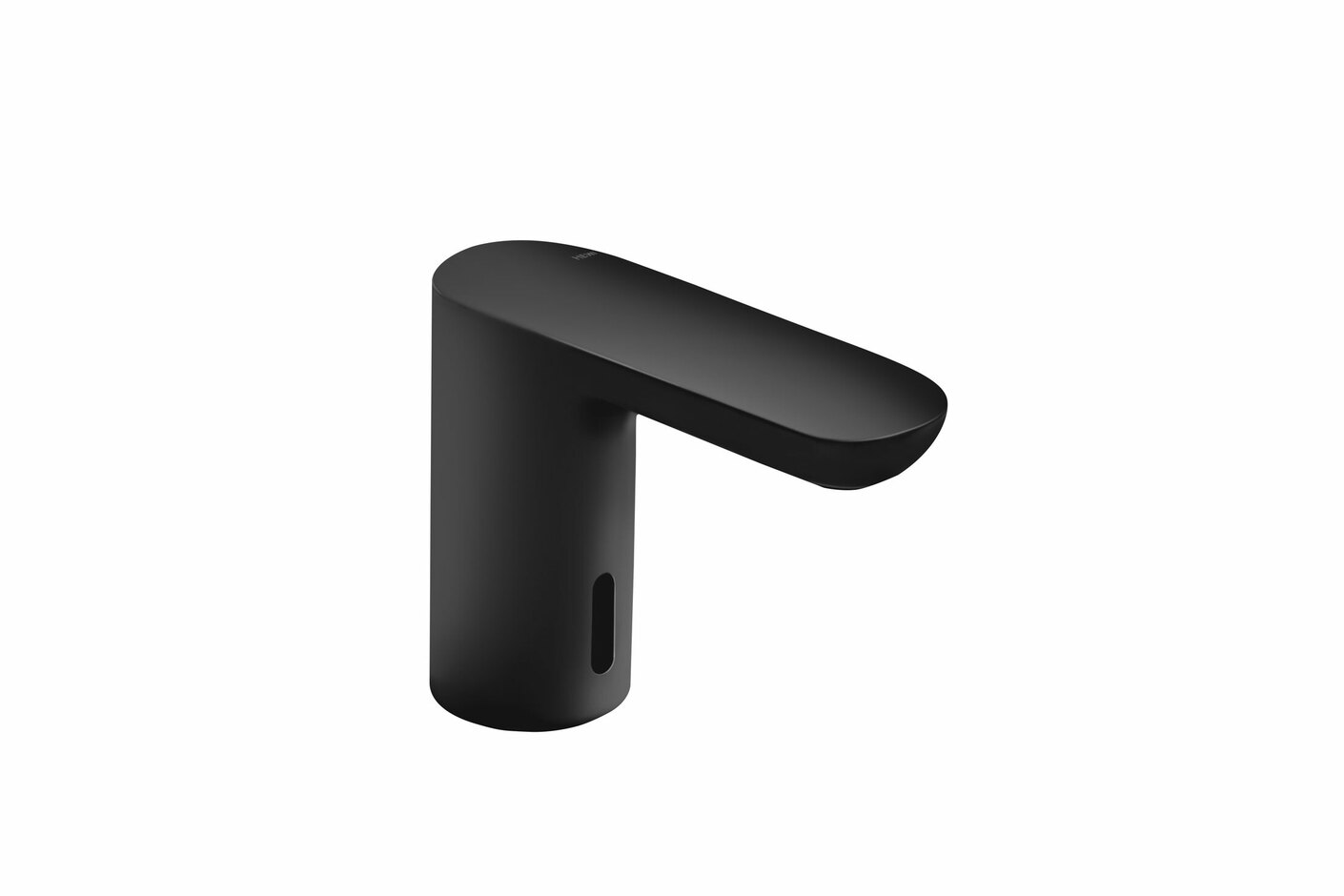

SENSORIC Electronic washbasin fitting

  • SENSORIC Electronic washbasin fitting
  • SENSORIC Electronic washbasin fitting
Stylepark-ID:06.2372.00513
Categories: Bath / Sanitary › Bathroom taps › Washstand fittings › Sensor fittings
Product description

⋅ matt black powder-coated, round
⋅ Flow rate 5 l/min
⋅ Mains operation 230 V
⋅ for cold and mixed water
⋅ Cold water: 3/8" T-distributor necessary, see accessories Art. No.
111736
⋅ Laminar jet controller with dynamic flow control 5 l/min, angle
adjustable and anti-theft protection
⋅ adjustable, active, nuisance tripping-resistant infrared sensors
⋅ Electronic module with adjustable sensing range, hygiene flushing,
continuous flushing and cleaning mode
⋅ Sensor parameters preset in the factory: after-run time: approx. 1-2 s,
continuous running: 4 min, sensing range: 200 mm, cleaning mode:
60 s, hygiene flushing is deactivated
⋅ asymmetrical sensing range, stable object detection
⋅ settings and service also possible by means of app via smartphone,
see accessories Art. No. 65713
⋅ safety shutdown in the event of failure of the operating voltage, userdefined settings are retained
⋅ without temperature adjustment lever: highly hygienic, vandal and
misuse resistant
⋅ the preset temperature lies within the comfort zone from 30°C to 36°C
⋅ Temperature settings and adjustment can be easily made during
installation due to side access
⋅ Connection via flexible pressure hoses with woven-in hot-cold
marking 450 mm long, G 3/8"
⋅ integrated dirt trap screens
⋅ Brass fitting body
⋅ 118 mm high, projection: 158 mm
⋅ rigid outlet
⋅ not including waste fittings
⋅ Noise class 1
⋅ suitable for thermal disinfection according to DVGW W 551
⋅ conforms EN 15091
⋅ WELL Label in preparation

All Sytem-Armaturen Products

Manufacturer:
HEWI, Germany

Design:
Hewi
2021
