Window handle satin

Window handle satin
Categories: FittingsWindow fittings
Product description

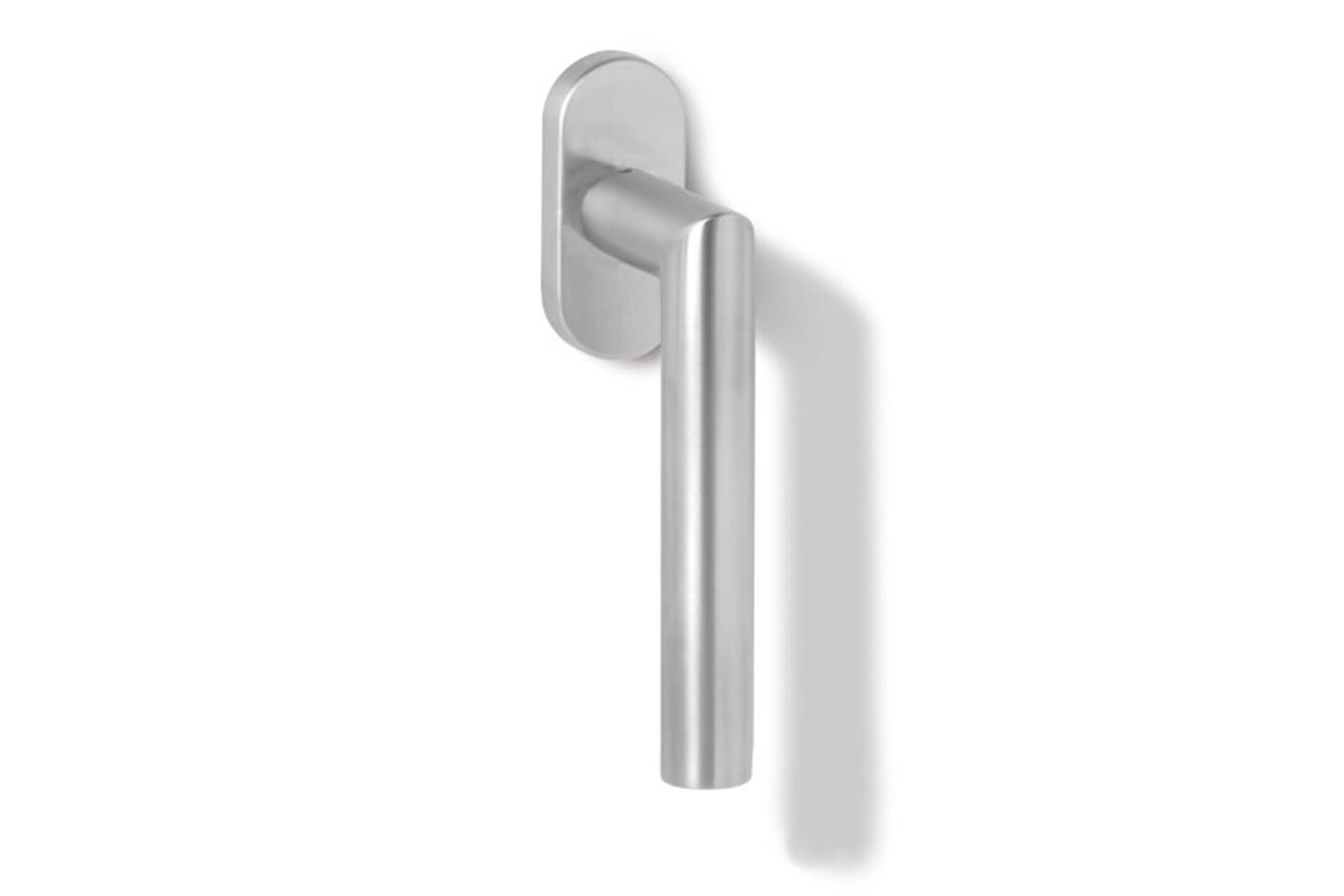

Window handle Design 162X made of round tubular stainless steel, mitred (1.4301), 21.3 mm diameter, 135 mm long, with 1.5 mm wall thickness, with 90 degree latching points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). Preassembled on a oval rose 71 x 33 mm, with pivot diameter 10 mm, concealed screw fixing, screw hole spacing 43 mm, cover cap made of stainless steel (1.4301), wall thickness 1.5 mm. Supplied without fixing screws. Surface of the window handle and the rose with satin finish. Article no.: HEWI 162XAFG.

Specifications
Materialstainless steel
All System 162 Products


Manufacturer:
HEWI, Germany

Design:
NOA
