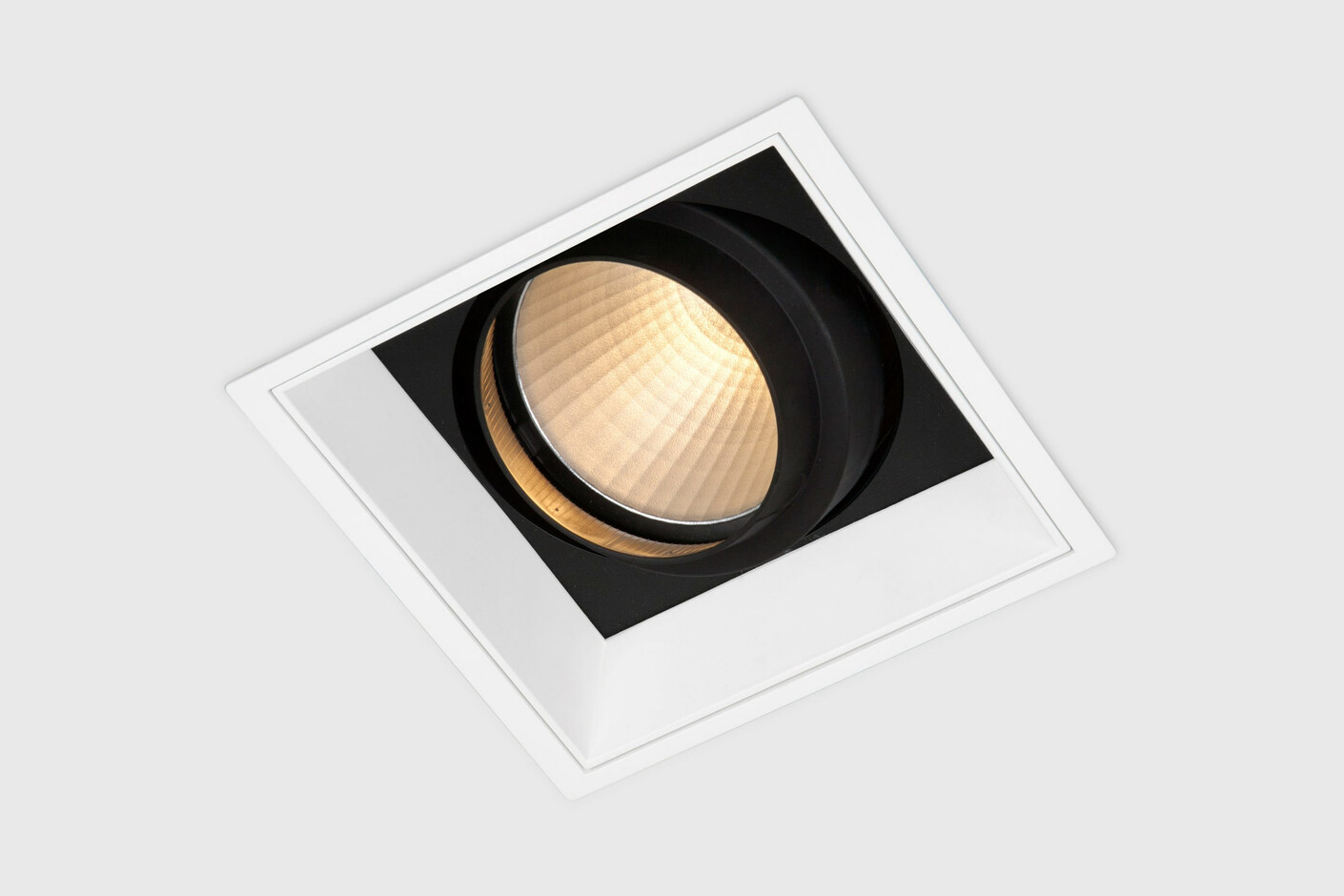

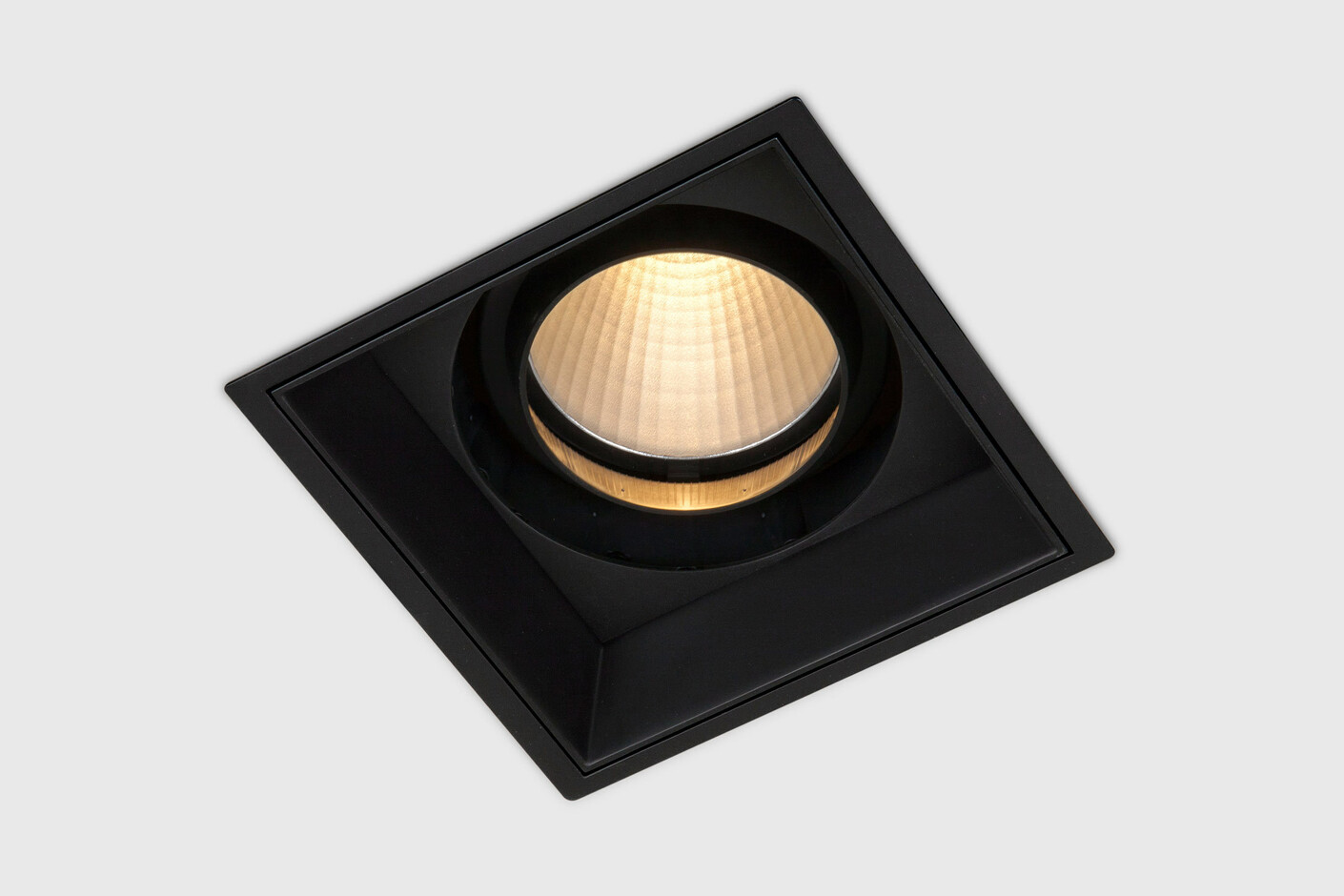

Down 165 directional

Stylepark-ID:04.1600.10385
Categories: Interior lightingBuilt-in lightsCeiling built-in lights
Product description

kreon down is a range of square recessed downlights characterised by minimal trim dimensions and deep-set LED position, providing a subtle feeling of light without the uncomfortable sight of light. The range utilises best in class LED modules and is available in four dimensions from 40mm upto 165mm to suit spacial requirements. With a choice of directional, fixed or wall wash formats, kreon down can provide a discreet yet functional solution to general or accent lighting within architecture. Finished in black for a dramatic ceiling contrast and maximum light control, or white for a harmonious ceiling integration.

Specifications
Fittings

output: 2000lm / 1580l

CCT: 2700K / 3000K / 3500K / 4000K

CRI: 83 / 98

drive current: 700mA / 500mA

wattage: 19,5W / 15,6W

rotation/inclination: 360°/30°

Diffuser/reflector shaperectangular
Length180 mm
Width186 mm
Installation width173 mm
Installation depth2000 - 2300 mm
Form of protection (DIN 40050)IP40 protection against: solids >1mm
Safety classclass II (protective isolation)
Colorsblack
white
