Mini Side

Stylepark-ID:04.1600.10239
Categories: Interior lightingBuilt-in lightsWall built-in lights
Product description

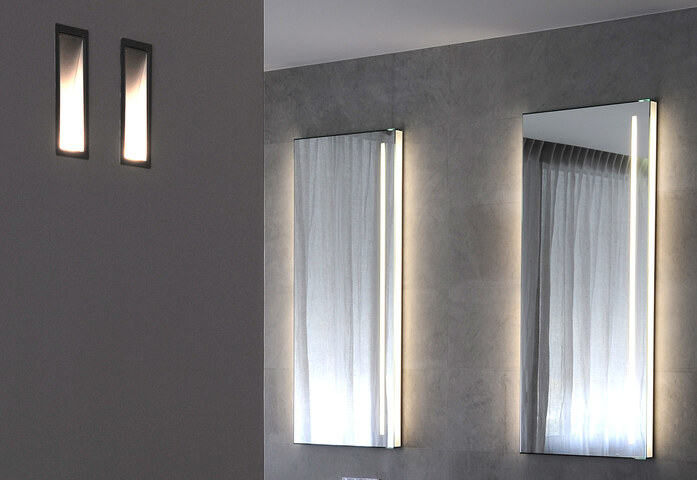

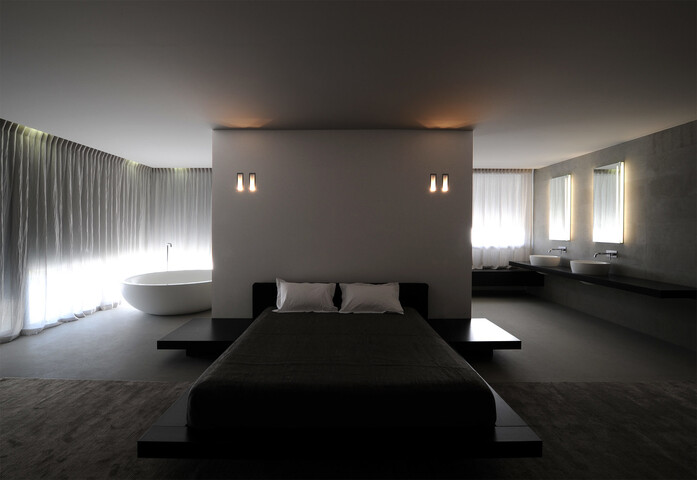

The kreon side concept flowed from the need to provide ambient and placement lighting from within vertical surfaces. Deep-set LED light sources are reflected by an asymmetric reflector to provide a wash of light that, when mounted downward, can provide orientation through spaces, or, when mounted upward, produces a ceiling glow that effectively increases ambient levels within an interior. The range is available in five sizes to suit spacial and lighting requirements, with frame finishes in grey or white.

Specifications
Fittings

G4

Lamp types/max. output:
QT9-ax: 20W
LED: 3000K, CRI≥80, 3W


Diffuser/reflector shapecylindrical
Width236 mm
Height79 mm
Depth79 mm
Installation width215 mm
Installation height700 mm
Installation depth800 mm
Form of protection (DIN 40050)IP40 protection against: solids >1mm
Safety classclass III (protective low voltage)
Materialsteel
Colorssilver
All Side Products


Manufacturer:
Kreon, Belgium
