Small Side-in-Line

Stylepark-ID:04.1600.10235
Categories: Interior lightingBuilt-in lightsWall built-in lights
Product description

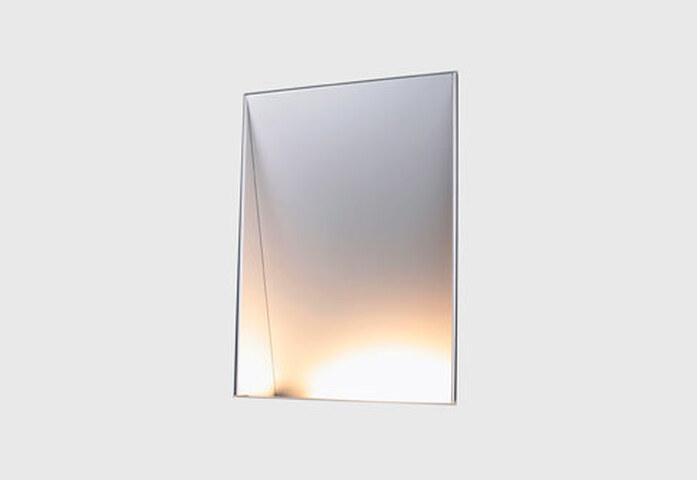

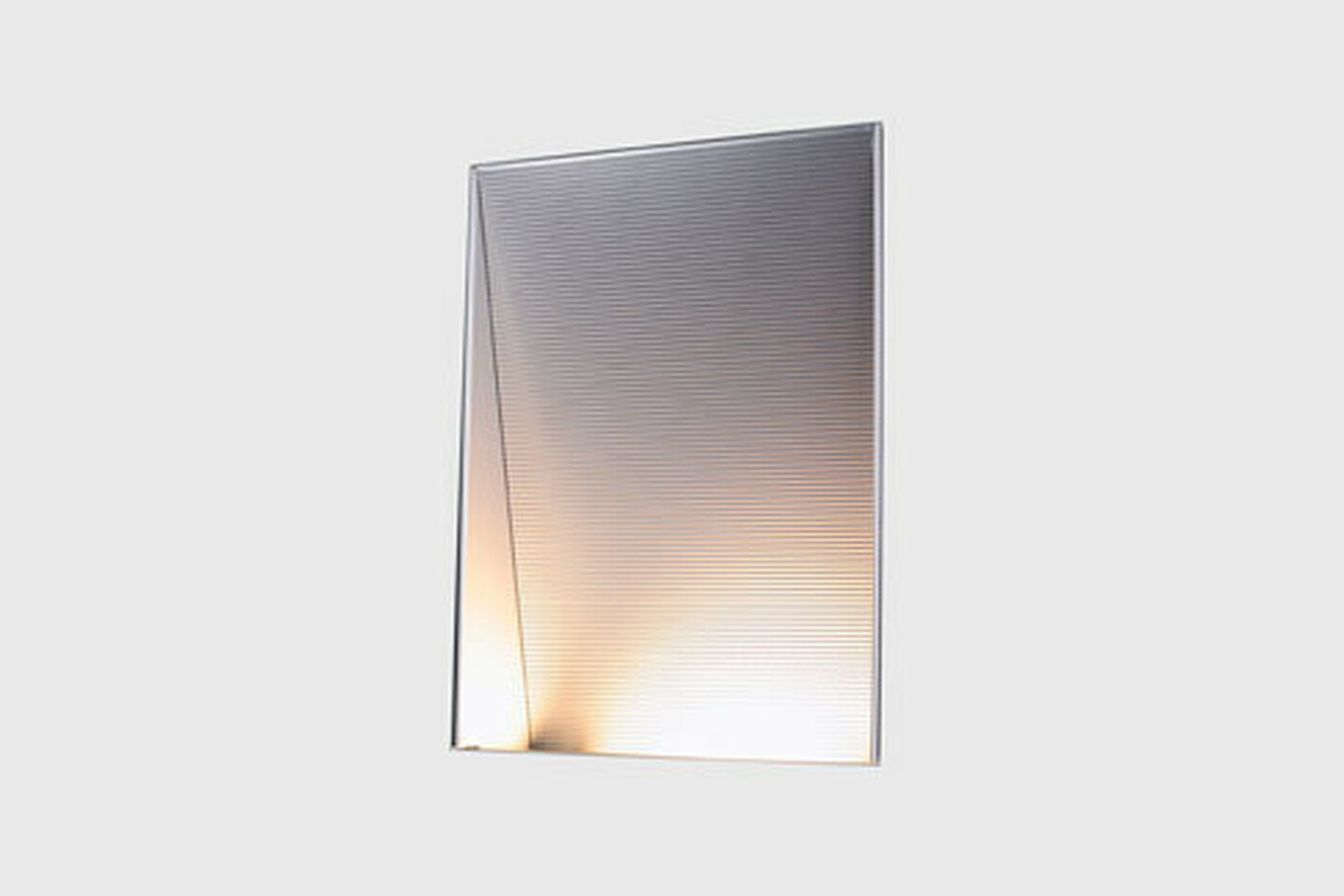

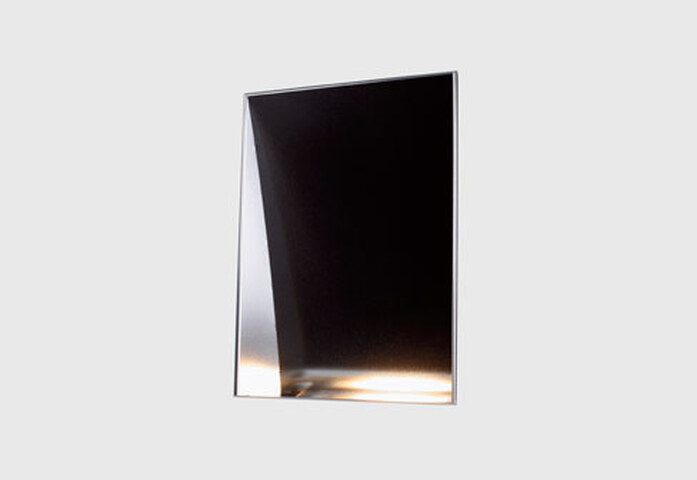

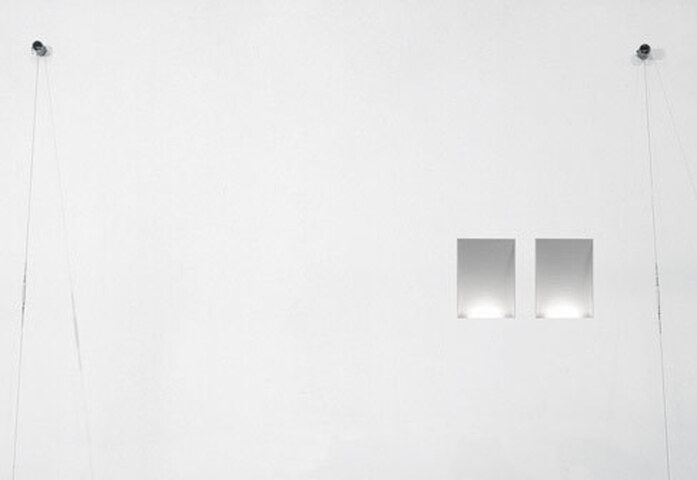

kreon side in-line is a range of trimless recessed fixture for walls or ceilings. They can be installed in brickwork or hollow walls, requiring maximum 120mm depth. This range of washlights is developed for high performance 2700K, CRI90+ LED, driver for different dimming options: ON/OFF, 1-10V or DALI included. The kreon side in-line range is highly flexible and can be used as floor washlight, wallwasher or indirect light fitting. Installation boxes and plasterkits are available for application in various surfaces.

Specifications
Fittings

fitting: R7s (74,9 mm)

lamptype: QT-DE-12

wattage: max. 80 W

Diffuser/reflector shaperectangular
Width234 mm
Height174 mm
Depth67 mm
Installation width215 mm
Installation height1600 mm
Installation depth800 mm
Form of protection (DIN 40050)IP40 protection against: solids >1mm
Safety classclass I (protective earthing)
Materialsteel
glass
Colorssilver
All Side in-Line Products
