Up 165

Product description

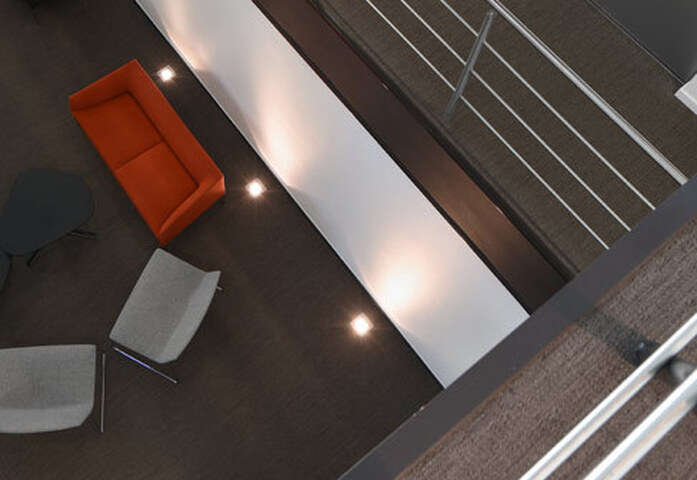

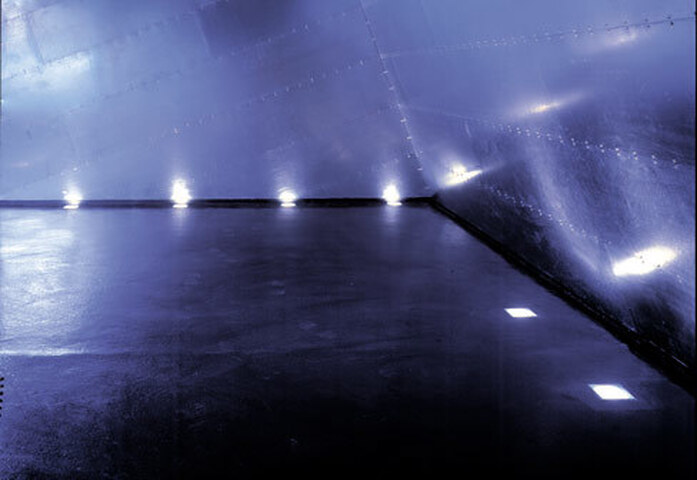

kreon up is a range of floor recessed up lighters characterised by its minimal appearance and optical functionality. The range offered in two sizes in both square and circular forms, is finished with black or white backed toughened glass with satin stainless steel trim. LED modules are deep-set within the luminaires and are controlled by a choice of anti-glare louvres for precise uplighting, brightness limiting diffusers for ambient or orientation lighting and wall wash optics for vertical illuminance. The units are sealed to IP67 and have a die cast aluminium and stainless steel housing to provide protection from the harshest environments.

Specifications
Fittings

lamptype: QT12-ax

fitting: GY6.35

wattagemax.: 35 W

voltage: 230V

Diffuser/reflector shapesquare
Width145 mm
Height137 mm
Depth100 - 129 mm
Installation width136 mm
Installation height1280 mm
Installation depth1050 - 1340 mm
Form of protection (DIN 40050)IP54 protection against: dust/splashing water
Safety classclass I (protective earthing)
Materialaluminium
Colorssilver
