Structur System

Structur System
Stylepark-ID:04.1836.10230
Categories: Interior lightingLighting systemsGeneral lighting
Product description

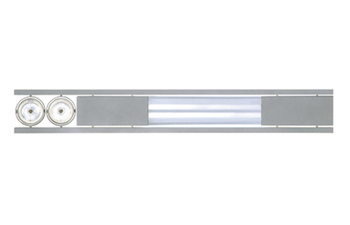

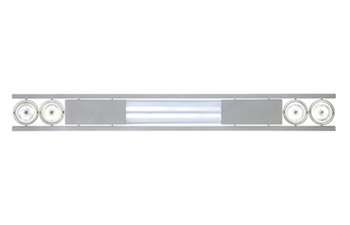

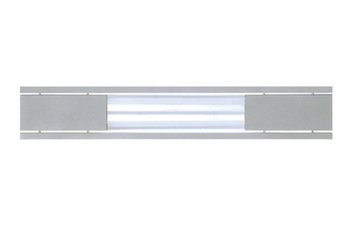

For efficiency with flexibility Licht, Form and Funktion. Structur is the combination of individual system elements to provide the complete lighting solution. The core module uses two powerful, lowenergy T5 FQ 24W fluorescent lamps with an etched float gl

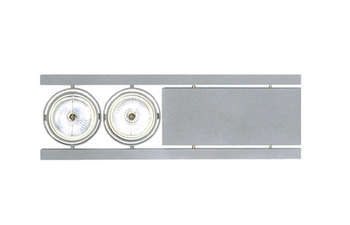

ass diffuser ensuring a glare free and uniform light distribution. Accent lighting is achieved with a double configuration cardan spotlight for either QR111 tungsten halogen with beam angles of 4°, 8°, 24°, 45° or the latest CDM-TC high-pressure metal hal

ide lamp technology with beam angles of 10°, 24°, 45°. Electronical control gear and low voltage transformers are easily positioned and powered from the 5-pole cable that runs throughout structur. A complete range of system accessories such as rigid suspe

nsion ralls, connectors, end caps and decorative edging are available. Structur is manufactured from aluminium and steel and finished in metallic powder coating. Electronical control gear 240V or Electronical transformers 240V/12 V Sockets G53 for Lamp

s QR111 35-75W Sockets G8,5 for Lamps CDM-TC 35-70W Sockets G5 for Lamps T5 FQ 24W

Specifications
Functionsrotatable
Materialaluminium
Colorsshades of grey
silver
All Structur System Products


Manufacturer:
LFF Licht Form Funktion, Germany

Design:
Achim Jungbluth
