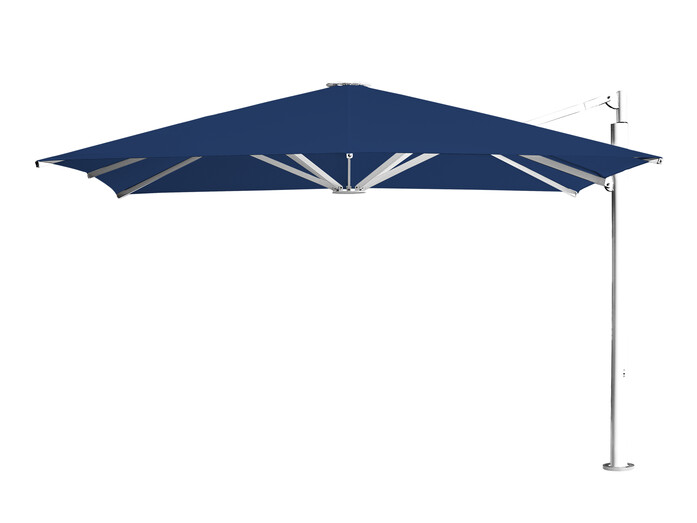

Side-arm umbrella Type SA

Product description

The side-arm umbrella is ideally used for open spaces with pathways or to optimize seating arrangements. The rotating umbrella pole has an oval profile for maximum stability and for connecting the umbrella to cables.

Cover

The cover is made up of individual segments which are screwed to the frame by Sterling Steel hooks at the top and by rust-proof screws at the ends of the spokes. The cover is replaceable and is fade, light and water resistant. It is designed to withstand all weather conditions and can be ordered with valances.

Anchor

Ground tube

Rotatable adapter

• Core drilling and ram-pin

Printing

Digital print

Screen print

• Dispersion dye print

Mast

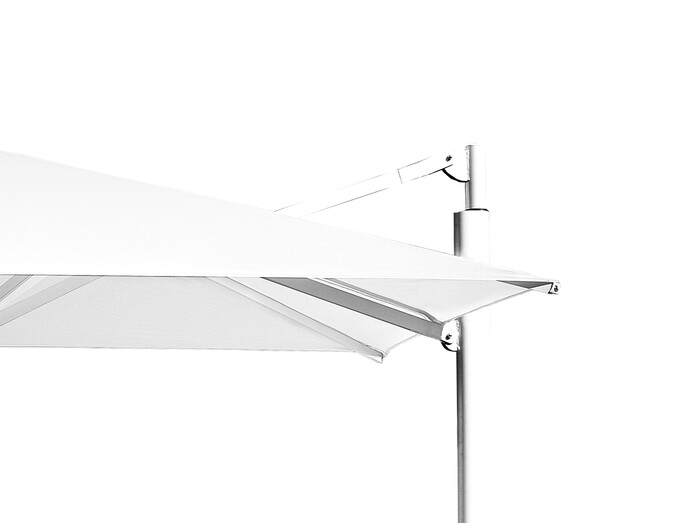

Umbrella spokes are made of rectangular aluminium sections of 40 x 20 x 2 – 50 x 30 x 3 mm. The mast is made of an oval aluminium section of diameter 140 mm in one plane and 100 mm in the other. The aluminium telescope has section dimensions of 70 x 3 mm. The top plate and the crown are made with U profiles out of aluminium to house the struts. All parts are screwed together and the frame is powder coated (Polyester powder ca. 80 μ). All moving parts are made out of steel.

• White RAL 9010 (standard)

• Black RAL 9005

• Silver RAL 9006

Mechanics

The mast gears are maintenance-free and spindle. The canvas is opened and closed using a hand crank.

Benefits

• Opening and closing by hand crank

• All materials are resistant to the effects of water corrosion

• All parts attached by screws can be easily replaced

• Mechanics include a telescopic pole which allows the umbrella to open or close over the table

• Maintenance-free gear box

• Possible with lights and heating

• Safely handles winds up to 60 km/h (with the proper bases)

• All highly stressed components are made out of steel

Accessories

• Various lighting possibilities

• Transport case

• Protective sleeve with a telescopic pole

• Cabling is housed within the central mast

• Event Platform and MDT Flex-Bar

MDT-TEX 260 (flame retardant)
100% polyester fabric, approx. 260 g/m2, UV-colour resistance: 6/8, water column pressure: 700 mm, Flame retardant: DIN B1 - DIN 4102-1, M1, NFPA 701 - flat and folded. Coating: polyurethane, Suture material: polyester

MDT-TEX 300
100 % polyacrylic fabric, approx. 300 g/m2, UV-colour resistance: 4/5, water column pressure 370 mm, suture material: polyester

Sizes: 3x3 m, 3x4 m, 4x4 m, 4x5 m, 5x5 m

Specifications
Flame resistanceflame retardant
Materialpolyester
acrylic
aluminium


Manufacturer:
MDT tex, Germany
