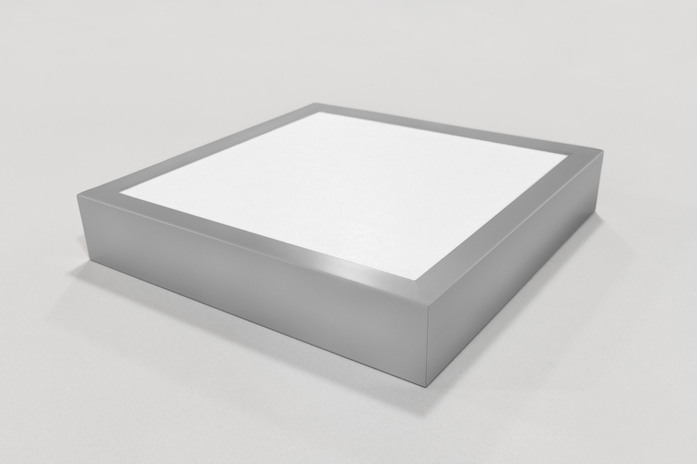

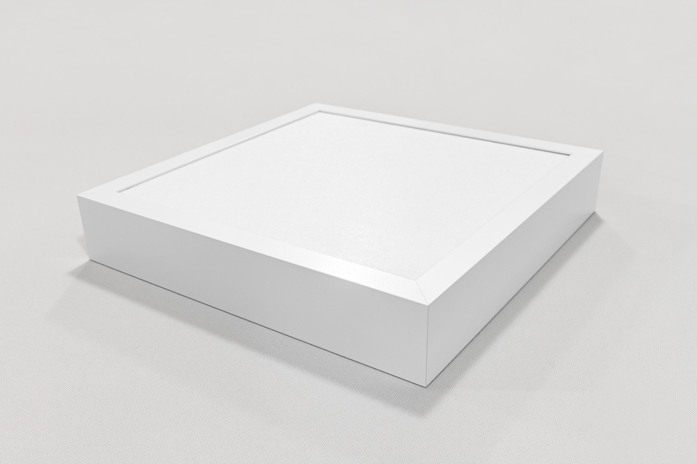

AluFrame Smart

AluFrameSMART
The award-winning acoustic panel

The ceiling and wall panels of the AluFrame Smart series are the effective, design-oriented and cost-efficient solution for optimising room acoustics. With the class A sound absorber made of min. 65% recycled PET, the acoustic panels offer the highest possible sound absorption in the industry while still having the most elegant look.

The objectiv AluFrame Smart acoustic panel reduces noise, improves speech intelligibility and contributes to well-being. The acoustic panel is suitable and certified for both private and commercial use. It is the ideal acoustic solution for new buildings or for retrofitting sound insulation.

The assembly is versatile and easy to handle. High quality cable and magnet sets are included.

Disposal is free of charge and environmentally friendly thanks to objectiv’s nationwide “Take Back” system.

technical data

·with PET high-performance absorber
·Sound absorber class A according to EN ISO 11654
·Rating according to VDI 3755: highly absorbent
·Assessed sound absorption coefficient aw = 1.00
·Aluminium frame white RAL 9003 shock-resistant
·Powder-coated in a varnished look or aluminium anodised EV 1
·Certified as a complete structure
·Fire protection class EN B – s1 d0, flame retardant according to EN B. B 1
·Absorber: pure fibre
·adhesive-free, free from respirable fibres
·Textile tested for harmful substances according to Ökö-Tex Standard 100
·allergy friendly, skin friendly
·toxicologically safe
·100% recyclable material
