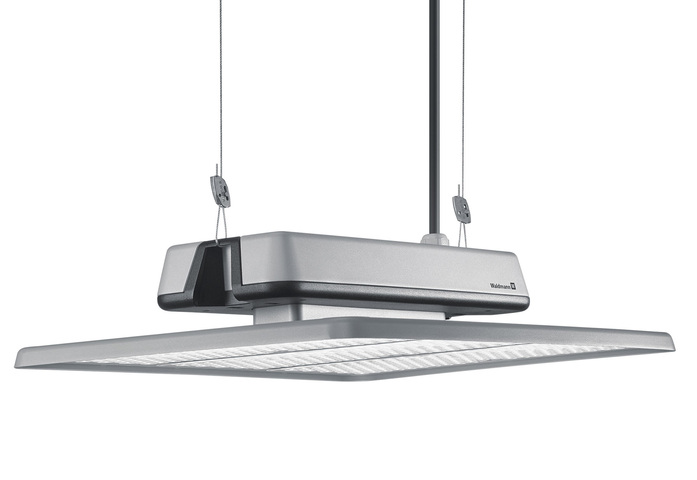

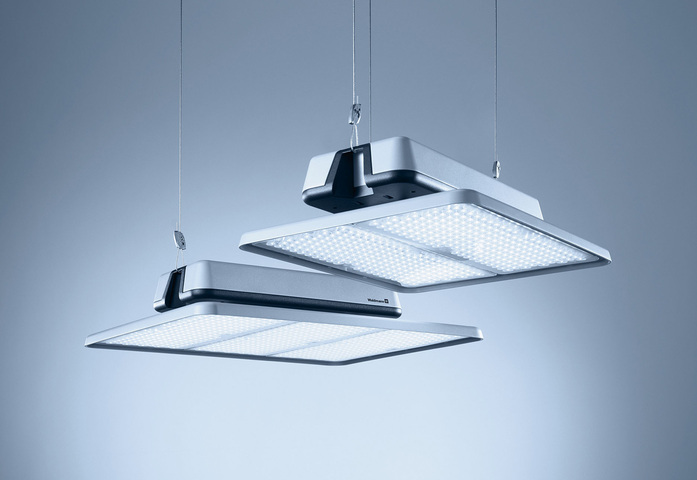

ACANEO high bay luminaire

Product description

ACANEO is the ideal solution for wide-area general illumination of buildings with high room heights: We create efficient illumination in halls up to 30 metres in height. This increases the performance of staff and the quality of their work. ACANEO also provides an important contribution to a positive energy balance. Your company benefits from these factors: Social responsibility and commitment to the environment have a favourable effect on the cost-efficiency.

- Advanced LED technology with ­ up to 60, 000 hours of useful life (L80B10)
- Extremely robust die-cast aluminium housing
- Energy saving compared with conventional luminaires
- Time- and cost-saving mounting
- Thermal management with intelligent overheating protection
- Patented lenses for precise light deflection
- High-quality processing according to Waldmann quality standards
- Maintenance-free
- Warranty: 5 years
- Resistant to common coolants, oils and welding vapours
- Integrated constant light output (CLO)

Specifications
Fittings
Emission classA+
Functionsheight adjustable
Light regulationstepless dimmer
Stand/ mountingfixed mounting
with pendant hanging
Inspection seal /certificationCE
Width of luminaire head480 mm
Height head of lamp117 mm
Depth of luminaire head405 mm
Weight8.2 kg
Form of protection (DIN 40050)IP65 dust-proof/protection against: water jets
Safety classclass I (protective earthing)
Materialacrylic (PMMA)
aluminium
Colorswhite
silver


Manufacturer:
Waldmann, Germany
