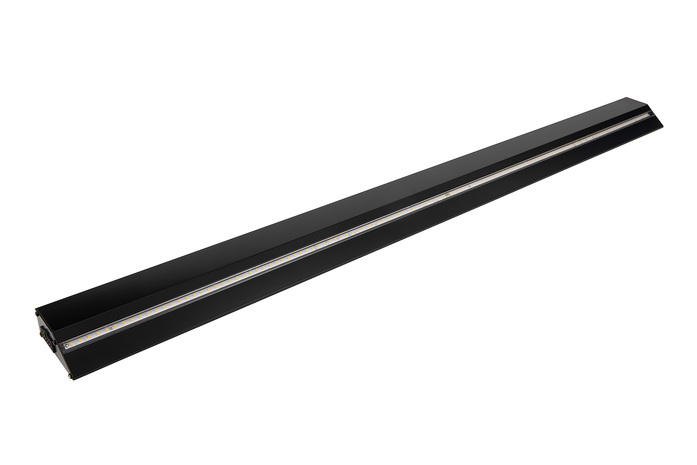

LED-FaMe 12 indirect

Product description

ADO Lights luminaire type "FaMe12 indirect" made of aluminum, surface powder coated according to RAL,clear cover made of PMMA, asymmetric light emission, light color optionally 3,000, 4,000 Kelvin,Max. 80W / m depending on factory preset, CRI> 85, Luminaire luminous flux 118 lm / W,narrow Color tolerance MacAdam Step 3, incl. Ballast dimmable with DALI control interface,IP rating IP40, Wieland N, PE, L(1), DA(2), DA(3)

Features:
- For hotels, offces, showrooms, laboratories and production sites
- Narrow light colour tolerances
- Glare suppression by satinised PMMA sheet
- Perfect homogeneous light spread, even if several LED modules are stringed together

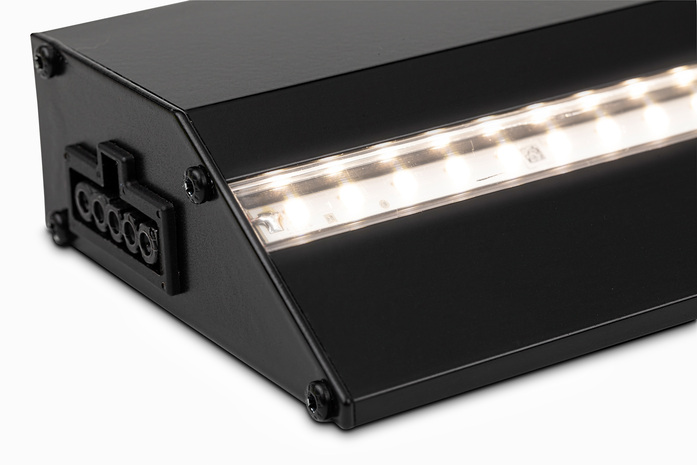

- Clamps for quick and easy wiring from one LED module to the next

Specifications
Light regulationstepless dimmer
Inspection seal /certificationCE
Form of protection (DIN 40050)IP40 protection against: solids >1mm
IP54 protection against: dust/splashing water


Manufacturer:
ADO Lights, Germany

Printed catalogue

Please fill in the form to request a printed catalogue.

For more informations, please refer to our Privacy Policy.

PDF catalogue

Please fill in the form to request a PDF catalogue.

For more informations, please refer to our Privacy Policy.

Estimate

Please fill in the form.

For more informations, please refer to our Privacy Policy.
Downloads

for LED-FaMe 12 indirect

File formatFile nameSizeDownload
PDFADO-L_de_FaMe12_1812.pdf1.18 MB
PDFADO-L_en_FaMe12_1901.pdf1.18 MB
PDFADO-L_REF_de_Messe12_1812.pdf1.43 MB
PDFADO-L_REF_en_Messe12_1812.pdf1.43 MB
Downloads

by ADO Lights

File formatFile nameSizeDownload
PDFADO-Lights_catalogue_EN.pdf4.11 MB
PDFADO-Lights_katalog_DE.pdf4.11 MB
PDFADO-L_Image-brochure_de.pdf8.36 MB
PDFADO-L_Image-brochure_en.pdf8.4 MB
DescriptionExternal Link
General catalogue
