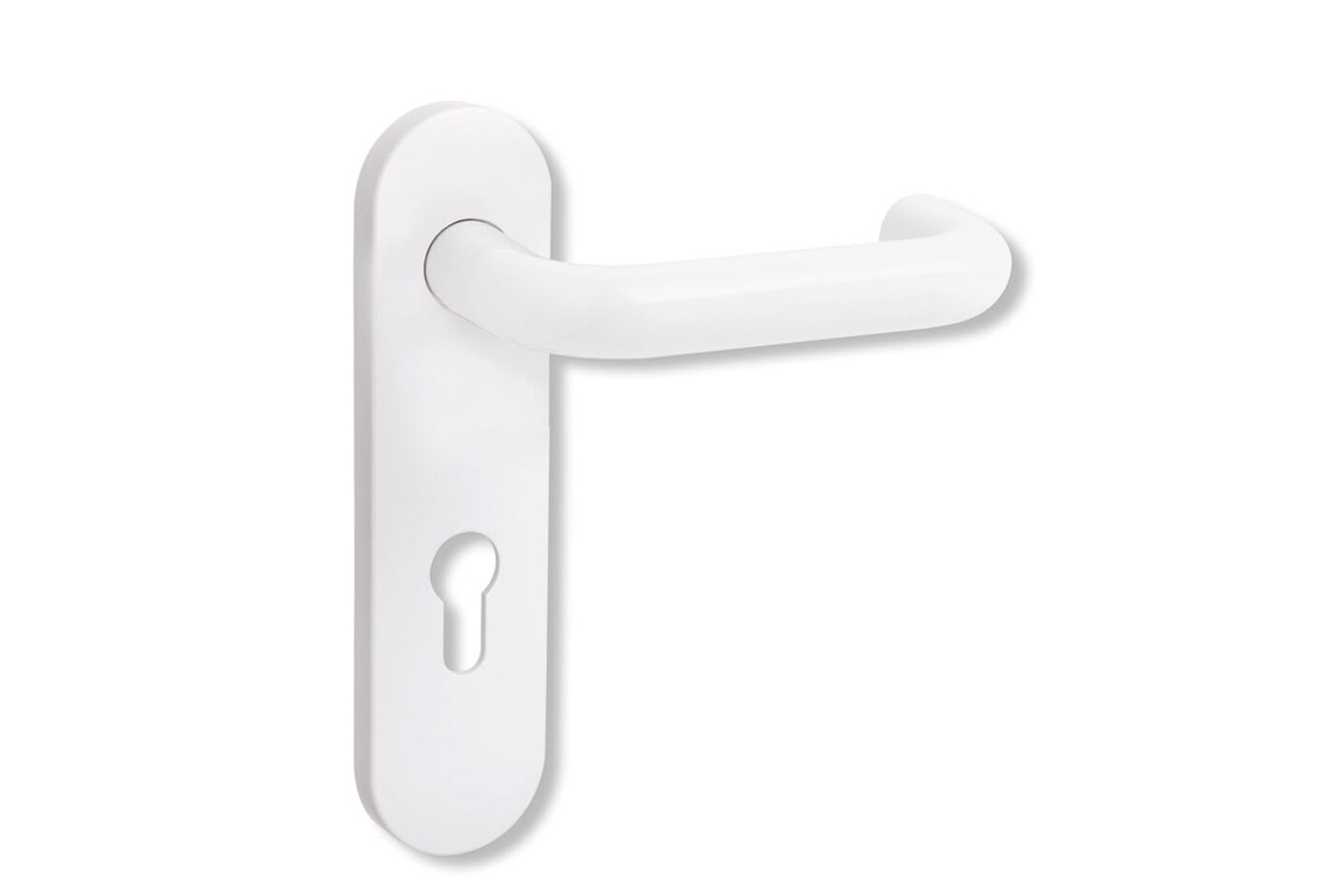

Standard door fitting R-technology

Categories: FittingsDoor fittings
Product description

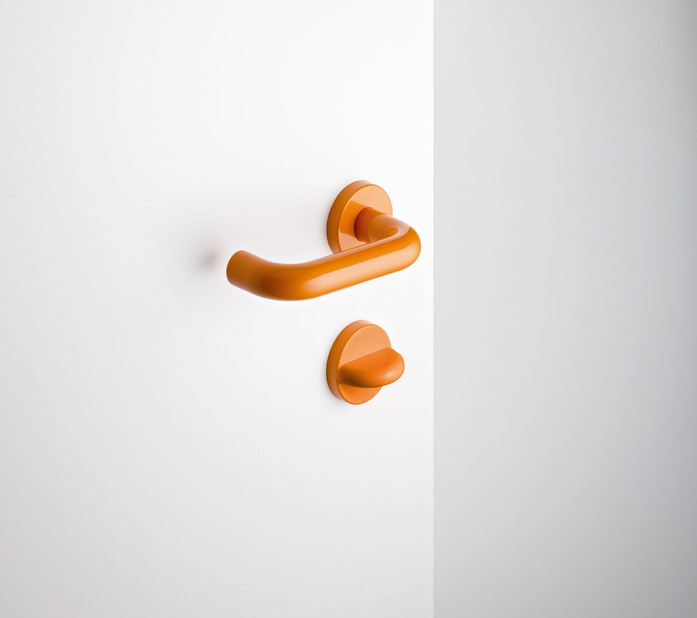

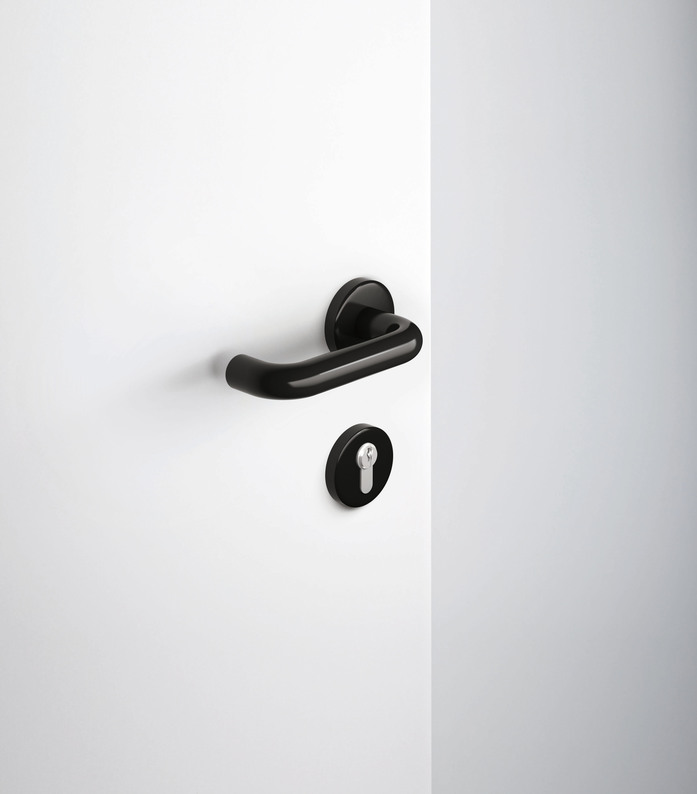

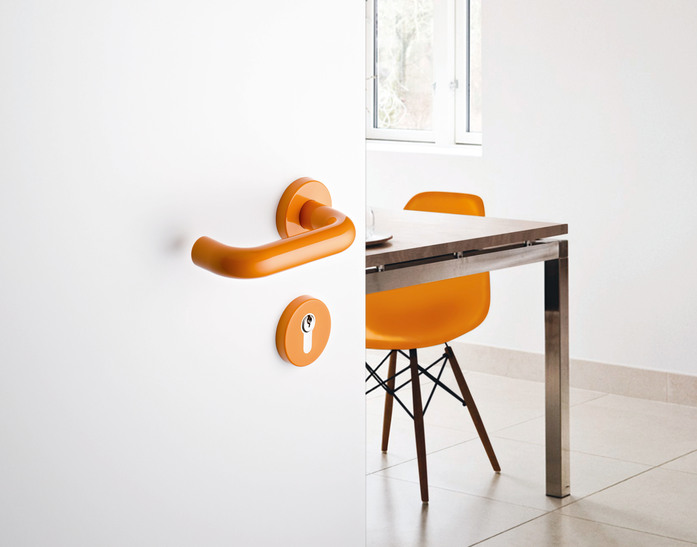

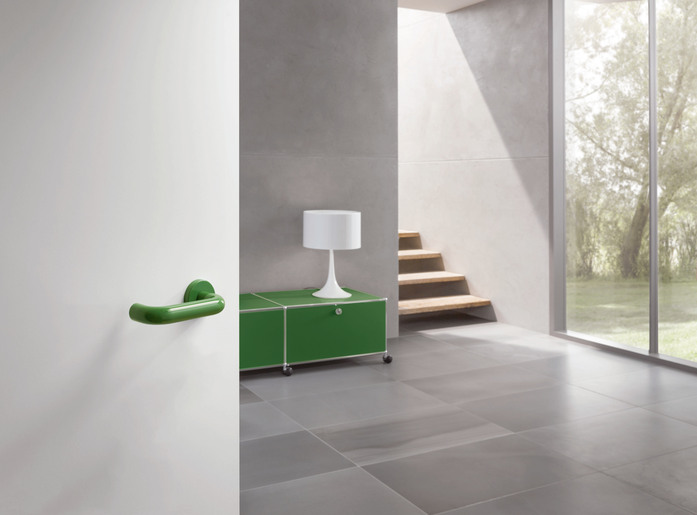

Standard door fitting in R-technology with backplates according to DIN 18255 and EN 1906 made of polyamide, high-polished surface, consisting of: Lever handle model 111.23R U-shaped made of high-quality polyamide with corrosion resistant steel insert, solid colour, diameter 23 mm, with stepped shoulder guide and groove, easily installed by latching the lever handle into the base parts pre-mounted on the door. The latching can be released using the dismantling tool. The lever handle fulfils the requirements of EN 179 and DIN 18040. Backplate: model 230.23R, backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area and second journal in the neck of the lever handle. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf. Backplate cap made of high-quality polyamide, solid colour, 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness.

Designed and tested for the projects segment, user category to EN 1906 - Class 2 or Class 4 Category of use: Class 2 fitting with spindle 7 mm Category of use: Class 4 fitting with spindle 8 - 8.5 mm

Durability: Class 7

Door weight: No classification specified

Fire resistance: Class 0

Safety: Class 1

Corrosion resistance: Class 4

Burglary protection: Class 0

Type of operation: U

Article no.: HEWI 111R01.210

iF product design award 1982

UNIVERSAL DESIGN award 2008

Design Plus

Specifications
Materialpolymide / nylon (PA)
All System 111 Products


Manufacturer:
HEWI, Germany

Design:
Hewi
1969
