Window handle

Window handle
Categories: FittingsWindow fittings
Product description

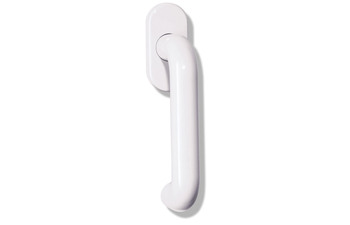

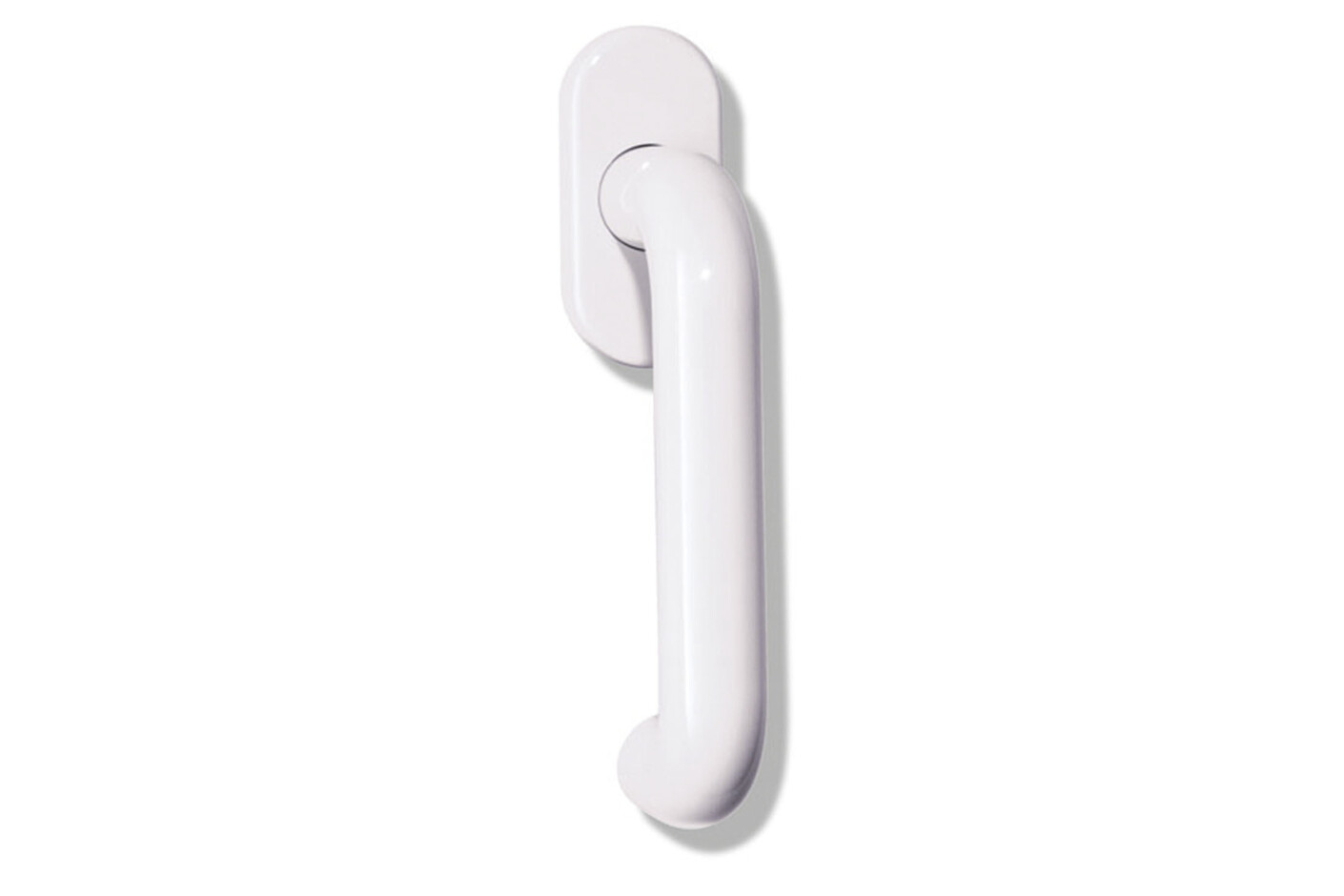

Window handle Design 111 made of polyamide, 20 mm diameter, 130 mm long, with 90 degree latching points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). The window handle meets the standards of DIN 18040. Preassembled on a oval rose 72 x 32 mm, with pivot diameter 10 mm, concealed screw fixing, screw hole spacing 43 mm, cover cap made of stainless steel (1.4301), wall thickness 1.5 mm. Supplied without fixing screws.

Article no.: HEWI 111FG.1

iF product design award 1982

UNIVERSAL DESIGN award 2008

Design Plus

Specifications
Materialpolymide / nylon (PA)
All System 111 Products


Manufacturer:
HEWI, Germany

Design:
Hewi
1969
