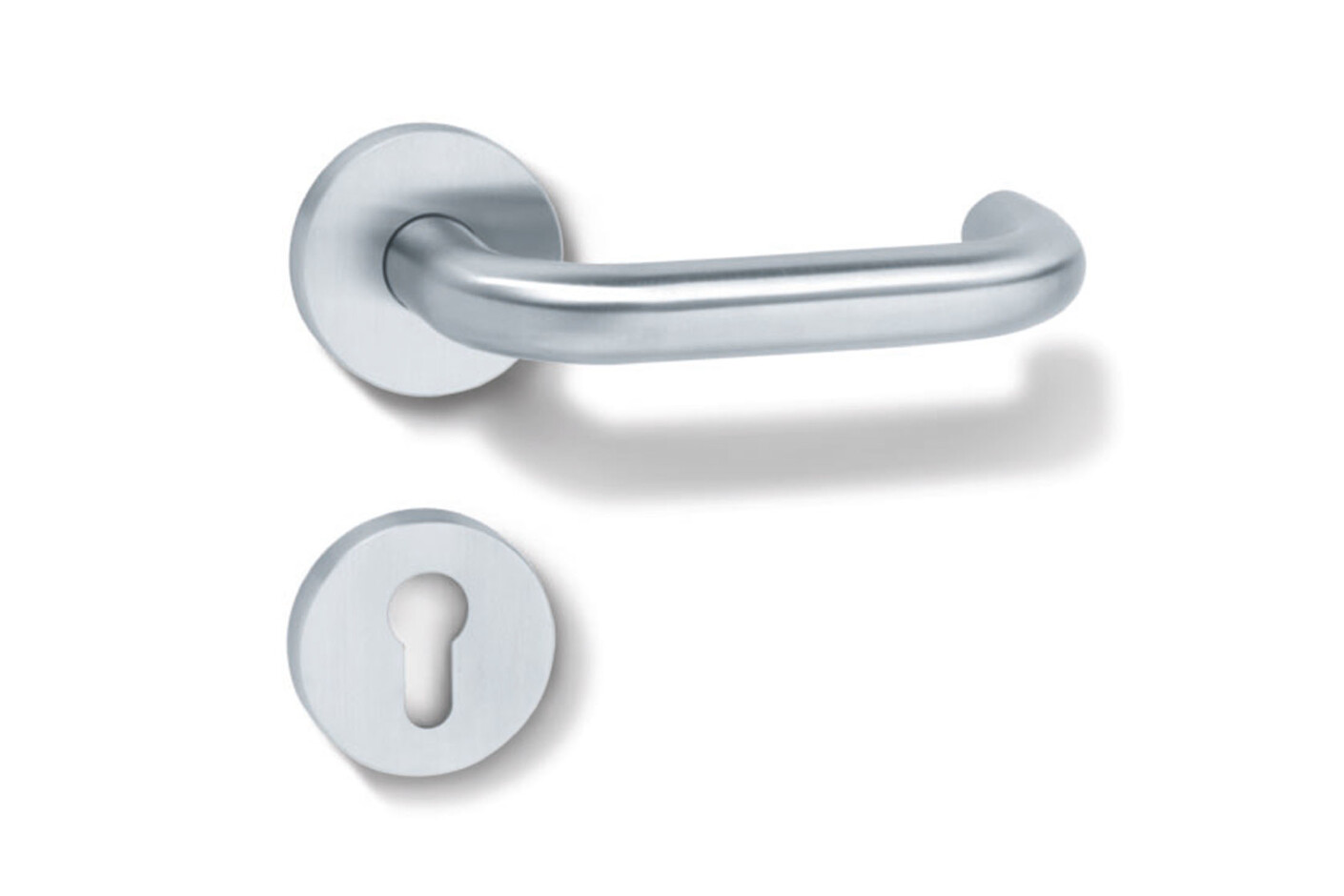

Standard door fitting B-technology satin

Standard door fitting B-technology satin
Stylepark-ID:02.2372.00122
Categories: Fittings › Door fittings
Product description

Standard door fitting in B-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of: Lever handle 111X... made of stainless steel tube (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle, for optimal transfer of force to door leaf. the lever handle meets the standards of DIN 18040. Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool. Roses: model 305.21X... and 306.23X..., 305.21X... composite synthetic material rose substructure, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies. Concealed, non-loosening screwed joint with 5 mm Spax screws as well as the pivot disappearing into the door leaf. Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.

Surface satin finished

Designed and tested for the projects segment, user category to EN 1906 - Class 2 or Class 3 Category of use: Class 2 fitting with spindle 7 mm Category of use: Class 3 fitting with spindle 8 - 8.5 mm

Durability: Class 7

Door weight: No classification specified

Fire resistance: Class 0

Safety: Class 0

Corrosion resistance: Class 4

Burglary protection: Class 0

Design-type: A

Article no.: HEWI 111XAB01.130

iF product design award 1982

UNIVERSAL DESIGN award 2008

Design Plus

All System 111 Products

Manufacturer:
HEWI, Germany

Design:
Hewi
