berliner ring 1 downlight

Year of design: 2019 | Design: mawa design

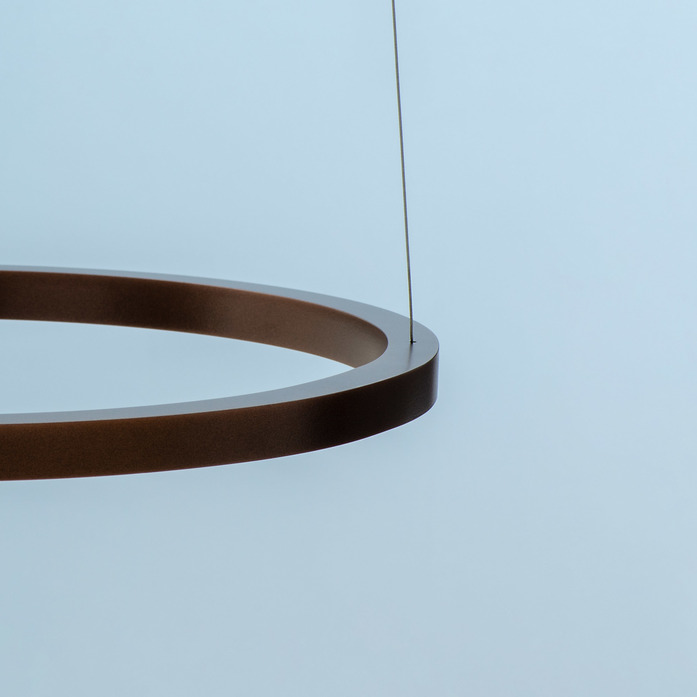

berliner ring 1 downlight

Uniform light shines through a translucent strip framed by a slim C-profile. The radii and lengths are individually manufactured by mawa on request. From a radius of 30 cm upwards, a wide variety of inlights for a variety of room situations are conceivable. You can find out which circular, oval, linear and free forms can be bent on request.

Round luminaires are centrally suspended as standard, vertical suspensions with individual steel cables are possible on request. The light colour can also be selected.

material:
Aluminium powder-coated
3 × steel cables (Reutlinger)
Acrylic glass satinised on one side (3 segments of 120° each)

dimensions:
Profile 20 mm × 20 mm
Pendulum length 1800 mm
∅ 600 mm
∅ 800 mm

LED module:
including LED strip 24 V DC, 27 W per metre
at 2700 K: 95 lm/W
at 3000 K: 100 lm/W
∅ 600 mm: 49 W
∅ 800 mm: 65 W

Operating area
AC 220V-240V / 50Hz-60Hz

Energy efficiency class
EEI A++ to A

Weight incl. canopy large
∅ 600 mm: 1,600 g
∅ 800 mm: 1,700 g

Colour:
bronze metallic
glossy chrome (∅ 600 mm only)
individual RAL colour

diameter:
∅ 600 mm
∅ 800 mm

Light colour:
2700 K
3000 K

Canopy large (standard) for central suspension:
bronze metallic
white matt (RAL 9016)

Canopy small for vertical suspension (important: control gear not integrated, must be positioned externally):
white matt (RAL 9016)

control system:
DALI dimmable
Phase control/phase section dimmable
Bluetooth dimmable
