fbl-11

Presented:Light + Building 2014, Frankfurt
Stylepark-ID:04.2308.10286
Categories: Interior lightingLighting systemsLight track systems
Product description

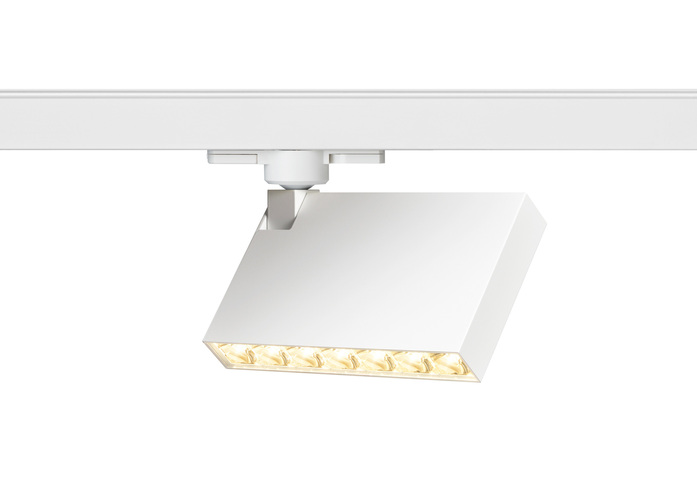

fbl ‒ folding bending light ‒ Mawa’s track-mounted, surface-mounted and recessed spotlight with LED. Milled and folded from a single piece, the rectanglular block organizes the LED’s in a linear fashion, such that the light output is rotationally symmetric. This folding technique is a patented, technical mawa innovation with no visible connections. Normally, air would be let in or out of a housing to ensure cooling for LED’s. Default with EUTRAC UniCompact adaptor equipped; available with fully integrated Eutrac-in-trac track adaptor. ATTENTION: Eutrac-in-trac track adaptor pre-mounted with contact track spotlight. Adapter not available separately. Series DEKRA tested.

Colors:
RAL 9016 white matt
mawa 9005 black matt
mawa anodized color medium bronze C33
mawa anodized color stainless steel like C31
further colors on request

Beam angles:
fbl is equipped as standard with a medium 30° reflector; alternative angle are spot 12° and flood 45°.

Dimming options:
switchable
dimmable 1–10V
DALI dimmable
trailing and leading edge dimmable

Converter:
included

Lamp:
including LED lamp
Standard:
3000 K, 1400 lm, 17 W, CRI 90, EEI = A+,
Custom:
2700 K / 4000 K, 950 lm, CRI 95, EEI = A+ must be ordered separately

Specifications
Emission classA+
Light regulationstepless dimmer
Diffuser/reflector shaperectangular
Width163 mm
Height100 mm
Depth26 mm
Materialaluminium
All FlatBoxLED Products

Manufacturer:
mawa design, Germany

Design:
Jan Blieske
2014

Design:
Jan Dinnebier
2014
