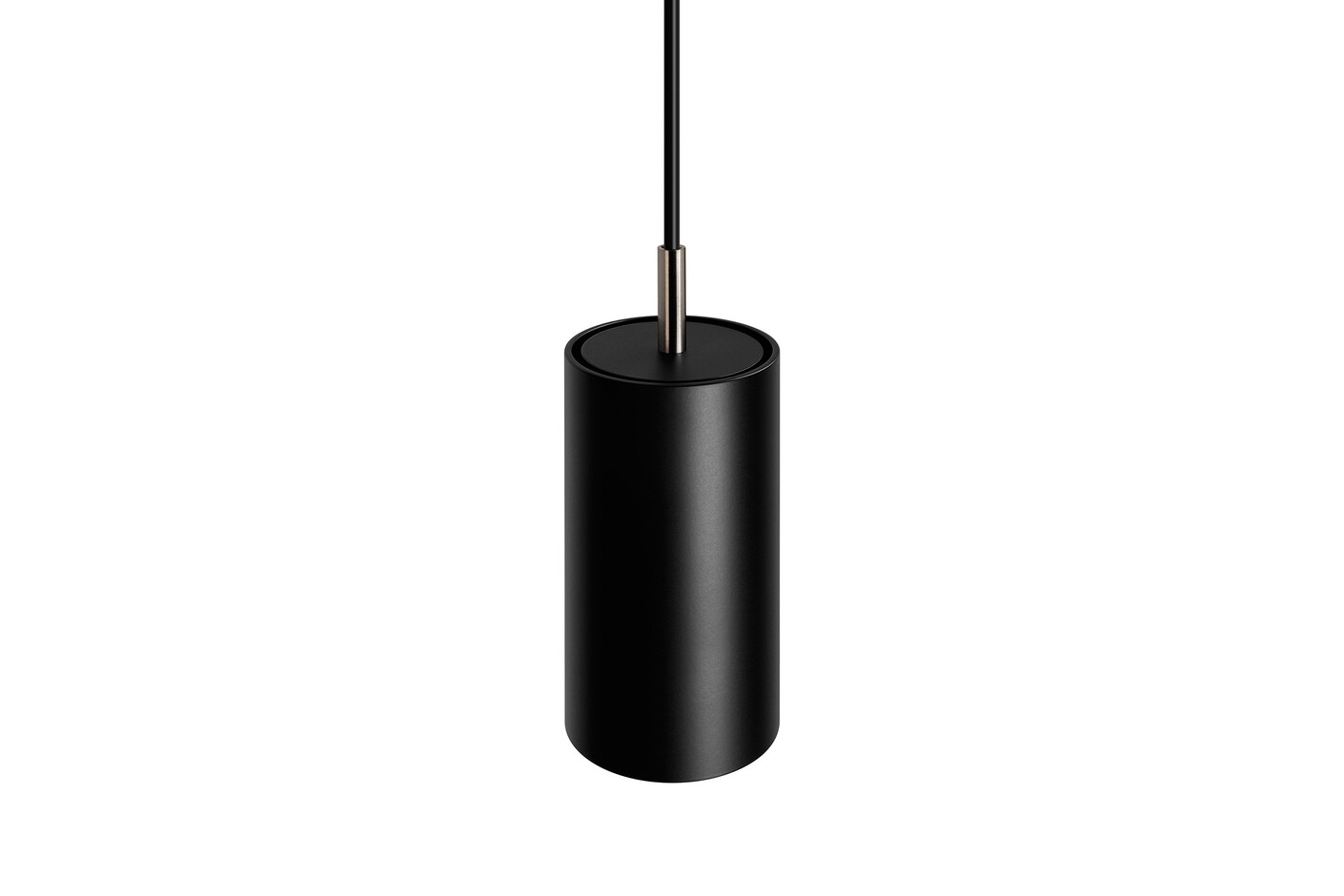

seventies 22/32

Presented:Light + Building 2014, Frankfurt
Stylepark-ID:04.2308.10288
Categories: Interior lightingPendant lights
Product description

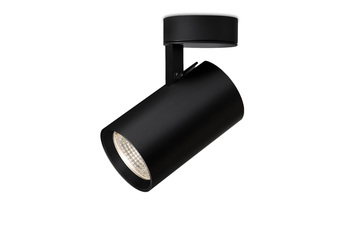

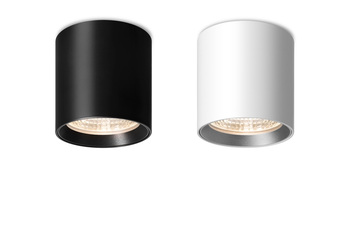

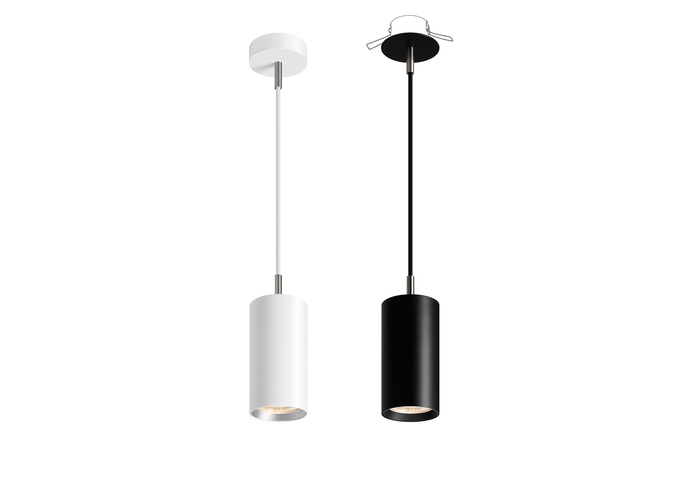

»seventies« – mawa's luminaire series of contact track, surface-mounted, recessed spotlights and pendant lights. Compact dimensions, no visible connections, 365° rotatable and 90° pivotable, integrated transformer technology. Default with EUTRAC UniCompact adaptor equipped. Available with fully integrated Eutrac-in-trac track adaptor. ATTENTION: Eutrac-in-trac track adapter premounted with contact track spotlight. Adapter not available separately.

colors:
RAL 9016 white matt
RAL 9005 black dull matt

dimming options:
switchable
dimmable with a 1-10V
dimmable 1-10V
DALI dimmable
trailing edge dimmable

converter:
inclusive LED converter

lamp:
inclusive LED lamp
Standard: 3000 K, 3000 lm, 25 W, CRI > 90, EEI = A+,
Costum:
2700 K/2900 lm
4000 K/3100 lm optional
Retail Lighting LED-Unit bis CRI 97 optionally available

Specifications
Emission classA++ - A
Diffuser/reflector shapecylindrical
Pendant length2000 mm
Height180 mm
Diameter90 mm
Materialaluminium
All Seventies Products

Manufacturer:
mawa design, Germany

Design:
Jan Blieske
2014

Design:
Jan Dinnebier
2014
