New food for thought
The PERFORMANCE SERIES product family offers downlights in two shapes and five different sizes. As a covering or trimless downlight in the shape of round or square, the optics can be selected - depending on the area of application and current requirements - with different beam angles from 20 ° to 60 ° in steps. In addition, the secondary reflectors are available as directional spotlights, downlights or wallwashers, which can be used as required and flexibly and easily exchanged or exchanged as required.
The selectable sizes range from PERFORMANCE XXS with a diameter of 55mm and an installation depth of 61mm to PERFORMANCE L with a diameter of 159mm and an installation depth of 190mm. All PERFORMANCE downlights are suitable for a ceiling thickness of 11mm to 25mm and can be flexibly adapted as required. The reflector, which can be rotated by 359 ° and swiveled by 30 °, ensures optimally directed light.

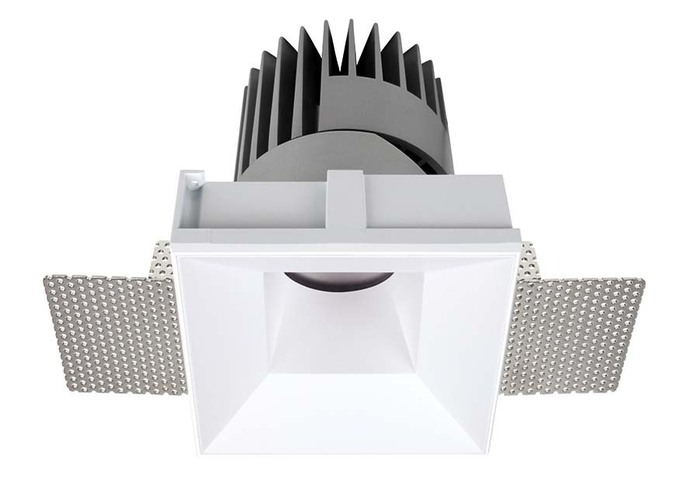

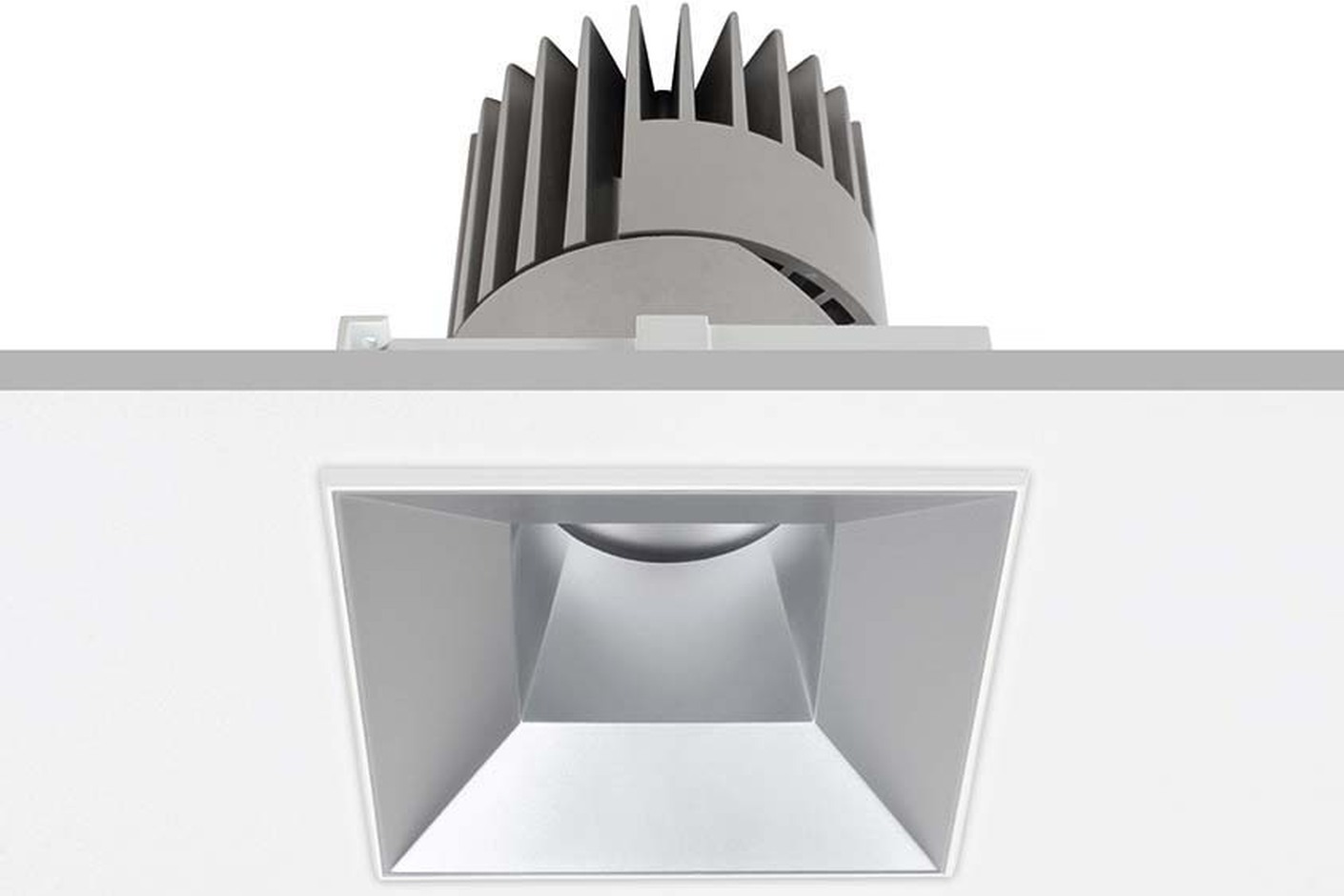

Technical data PERFORMANCE L TRIMLESS SPOT FIXED SQUARE
Trimless version for installation in the ceiling
25 Watt: 1x constant current 700mA/ 36V (power supply exclusive)
38 Watt: 1x constant current 1050mA / 36V (power supply exclusive)
25 Watt / 38 Watt
(24,8/38 Watt actual power consumption)
silver, white, black, specular, chrome black, gold
with special constant current dimmer or constant current driver (order power supply separately)
Neutral white 4000K
Warm white 3000K
30°-35° and 40°-50°
700mA neutral white 2100 Lumen
1050mA neutral white 3000 Lumen
700mA warm white 2000 Lumen
1050mA warm white 2800 Lumen
The luminous flux of the black reflector is up to 30% lower.
UGR: xtagstartz19 with (with reflector white 50° UGR <22°)
Ceiling cutout – 146x146mm
External dimension – 145x145mm
Height – 190mm
