New food for thought
The PERFORMANCE SERIES product family offers downlights in two shapes and five different sizes. As a covering or trimless downlight in the shape of round or square, the optics can be selected - depending on the area of application and current requirements - with different beam angles from 20 ° to 60 ° in steps. In addition, the secondary reflectors are available as directional spotlights, downlights or wallwashers, which can be used as required and flexibly and easily exchanged or exchanged as required.

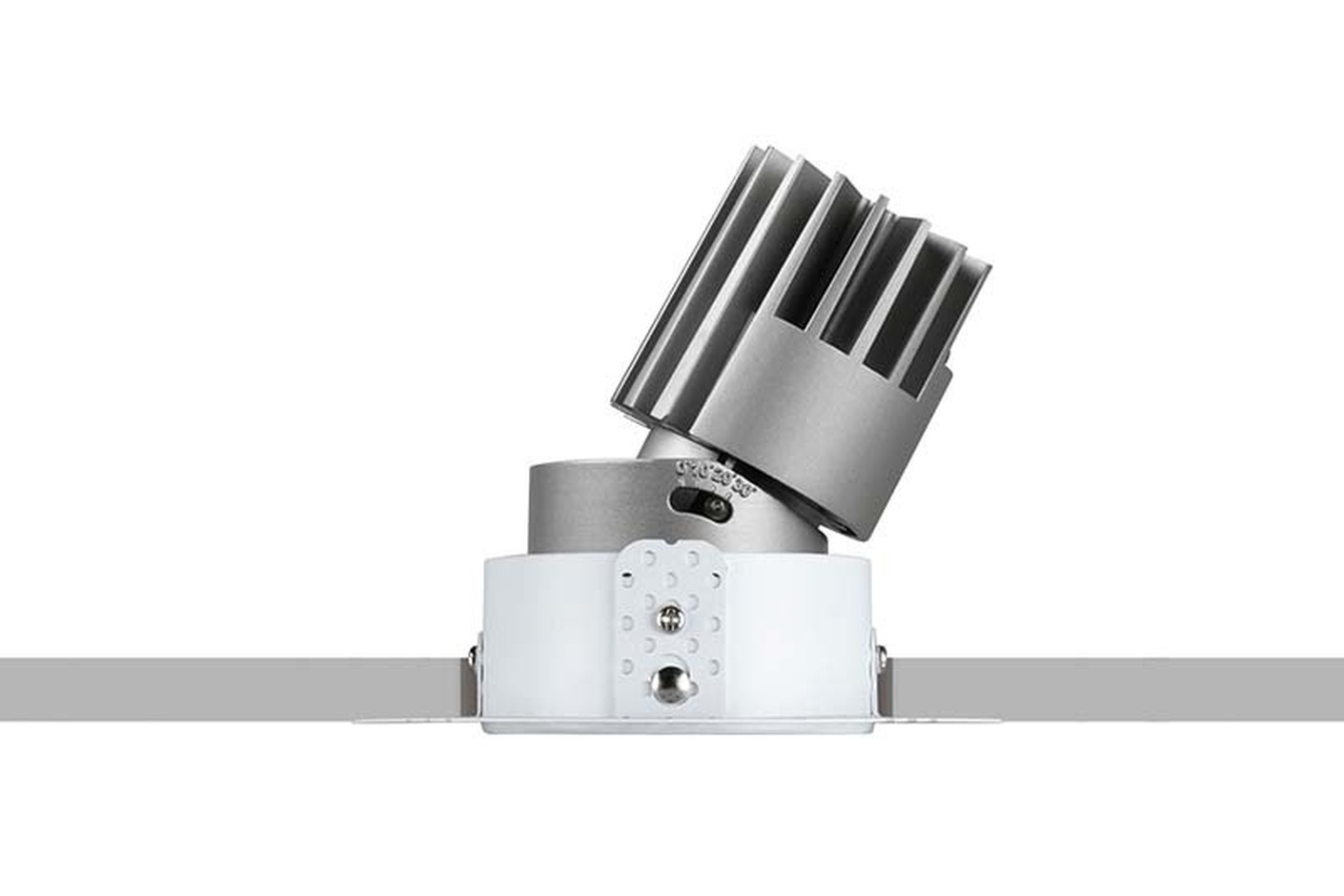

The selectable sizes range from PERFORMANCE XXS with a diameter of 55mm and an installation depth of 61mm to PERFORMANCE L with a diameter of 159mm and an installation depth of 190mm. All PERFORMANCE downlights are suitable for a ceiling thickness of 11mm to 25mm and can be flexibly adapted as required. The reflector, which can be rotated by 359 ° and swiveled by 30 °, ensures optimally directed light.

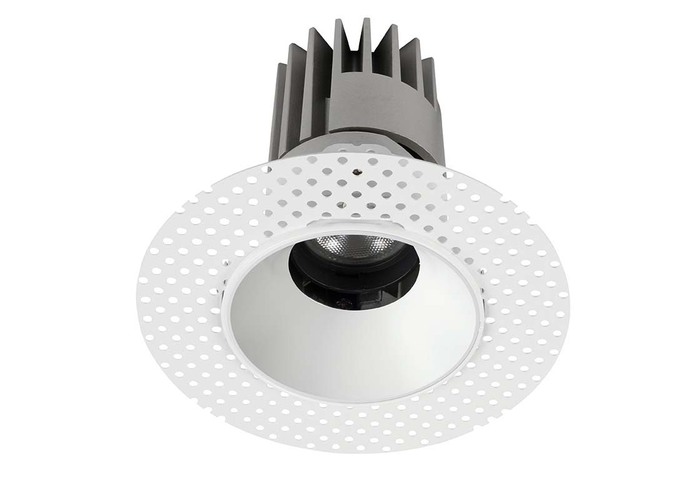

Technical data PERFORMANCE XS TRIMLESS SPOT ROUND
Trimless version for installation in the ceiling
IP class: IP40
Power supply: Constant current 350mA / 32V (power supply exclusive)
LED power: 9 Watt (11 Watt actual power consumption)
Housing: ring white
Reflector: silver, white, black, specular, chrome black, gold
Dimmable: with special constant current dimmer or constant current driver (order power supply separately)
Color temperature: Neutral white 4000K, Warm white 3000K
Beam angle: 25°, 40°
Without anti-glare grid – 950 lumen for neutral white and 900 lumen for warm white.
With anti-glare grid - 570 lumen for neutral white and 540 lumen for warm white.
UGR: xtagstartz16 with anti-glare grid as an option <10
Ceiling cutout – 72mm
External diameter – 67mm
Height - 98mm
