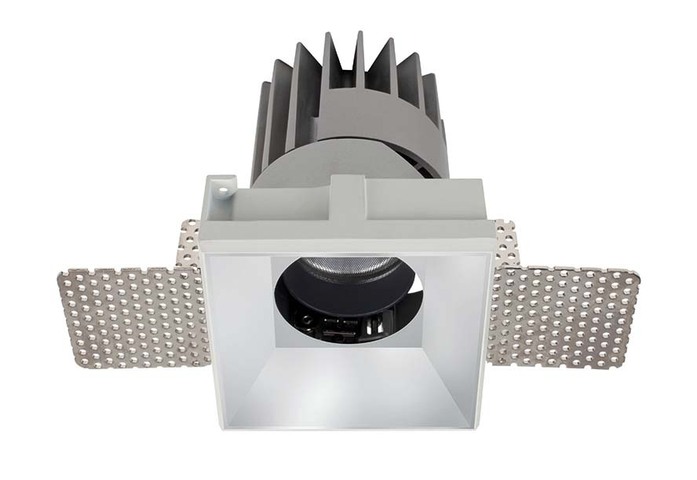

PERFORMANCE S TRIMLESS SPOT SQUARE

  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
  • PERFORMANCE S TRIMLESS SPOT SQUARE
Stylepark-ID:04.9512.00039
Categories: Interior lighting › Built-in lights › Ceiling built-in lights
Product description

The PERFORMANCE SERIES product family offers downlights in two shapes and five different sizes. As a covering or trimless downlight in the shape of round or square, the optics can be selected - depending on the area of application and current requirements - with different beam angles from 20 ° to 60 ° in steps. In addition, the secondary reflectors are available as directional spotlights, downlights or wallwashers, which can be used as required and flexibly and easily exchanged or exchanged as required.

The selectable sizes range from PERFORMANCE XXS with a diameter of 55mm and an installation depth of 61mm to PERFORMANCE L with a diameter of 159mm and an installation depth of 190mm. All PERFORMANCE downlights are suitable for a ceiling thickness of 11mm to 25mm and can be flexibly adapted as required. The reflector, which can be rotated by 359 ° and swiveled by 30 °, ensures optimally directed light.

Technical data PERFORMANCE S TRIMLESS SPOT SQUARE

Trimless version for installation in the ceiling

IP class: IP40

Power supply:
13 Watt: 1x constant current 350mA/ 36V (power supply exclusive)
18 Watt: 1x constant current 500mA / 36V (power supply exclusive)

LED power: 13 Watt / 18 Watt (12,5Watt/18,5 Watt actual power consumption)

Housing: ring white

Reflector: silver, white, black, specular, chrome black, gold

Dimmable: with special constant current dimmer or constant current driver (order power supply separately)

Color temperature: Neutral white 4000K, Warm white 3000K

Beam angle: 20°, 40°

Luminous flux:
Without anti glare grid: 350mA neutral white 1100 Lumen
500mA neutral white 1600 Lumen
350mA warm white 1050 Lumen
500mA warm white 1550 Lumen
With anti glare grid: 350mA neutral white 750 Lumen
500mA neutral white 1050 Lumen
350mA warm white 700m Lumen
500mA warm white 1000 Lumen

CRI: 90
UGR: xtagstartz16 with anti-glare grid as an option <10

Dimensions:
Ceiling cutout – 95x95mm
External dimension – 94x94mm
Height – 128mm

All PERFORMANCE SERIES Products

Manufacturer:
Proled, Germany
