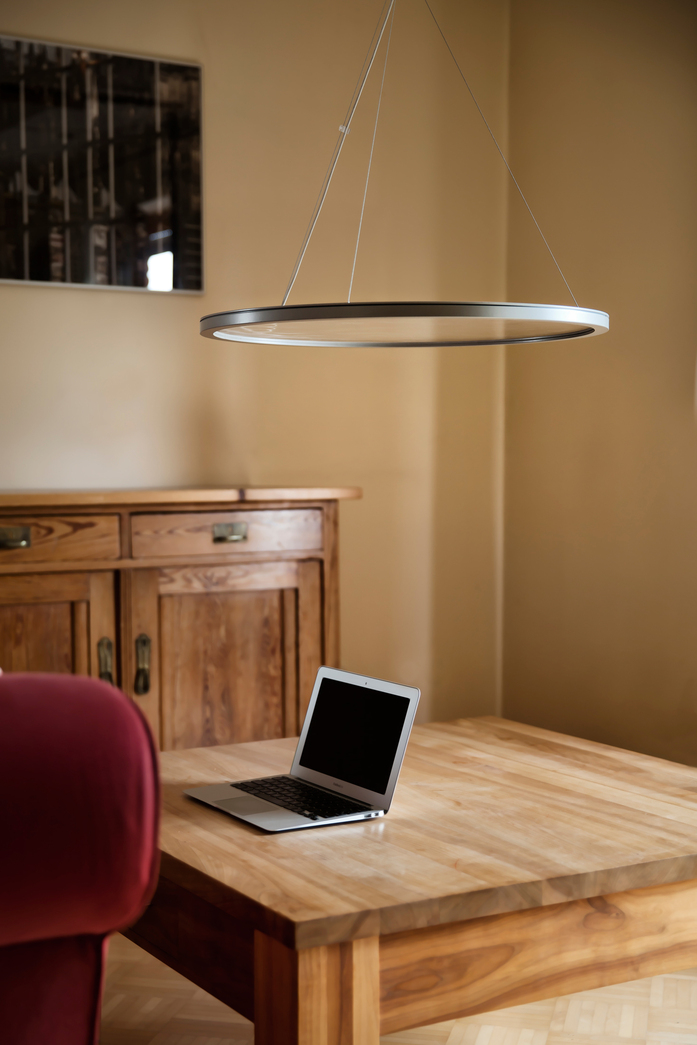

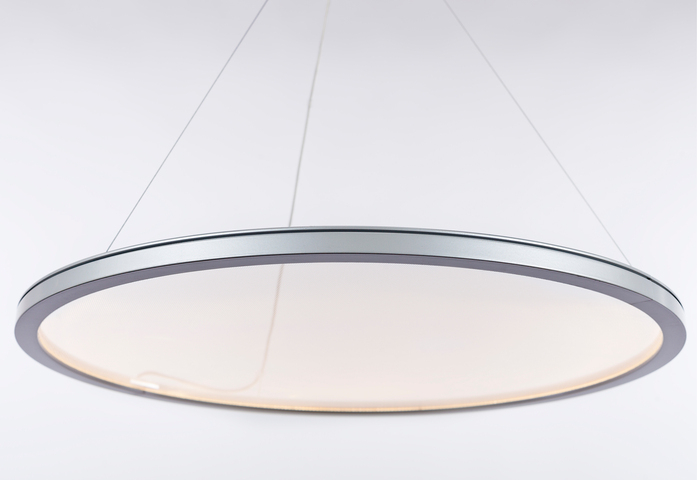

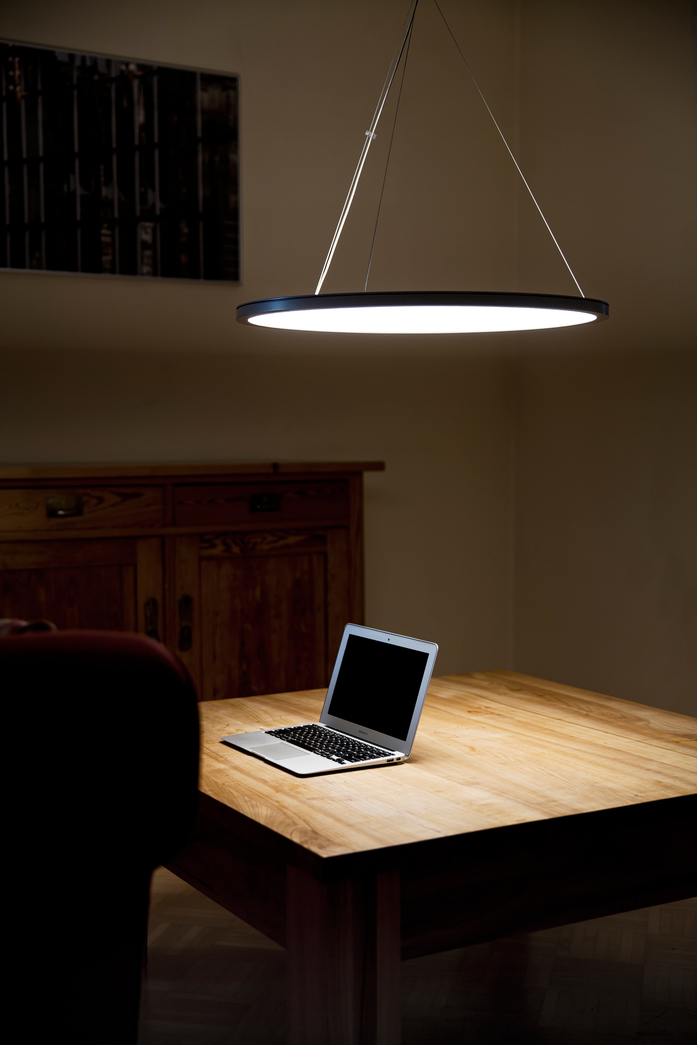

LED-Around pendant luminaire

Product description

LED-Around is a convincing all-rounder. It can be used in multiple variations. But most importantly, it can emit light downwards and upwards.
In the surface mounted luminaire, the 1,200 mm long modules string together and produce a pleasant, fully homogeneous light. A PMMA sheet with micro prismatic optics ensures reliable glare control.
As a pendant luminaire, LED-Around is suitable for counters, cellular and open plan offices, showrooms, or as emergency lighting for corridors.
As a recessed luminaire, it can be integrated in various contexts. This includes walls, ceilings, floors and façades, drainage channels and convector ducts.
In addition, LED-Around is dimmable, an important advantage in both commercial and residential areas.

- For private residences, hotels, offices and showrooms laboratories, shop floors
- Suitable for emergency lighting systems acc. to EN 50172
- Narrow light colour tolerances
- Direct/indirect light extraction; optional direct light extraction with reflector
- Perfect homogeneous light spread, even if several LED modules are stringed together
- The light colours are dimmable and controllable using DMX
- White or RGB colours adjustable; adjustable soft floating light

Specifications
Emission class A
Light regulation stepless dimmer
Stand/ mounting with pendant hanging
Diffuser/reflector shape rectangular
Inspection seal /certification CE
Width of luminaire head 14 mm / 20 mm
Height head of lamp 2 mm / 4 mm
Depth of luminaire head 121 mm / 183 mm / 243 mm / 19 mm
Form of protection (DIN 40050) IP20 protection against: solids > 12 mm
Safety class class III (protective low voltage)
Length 1210 mm
Width 200 mm
Height 20 mm
Material aluminium
acrylic (PMMA)
Colors black
white
silver
