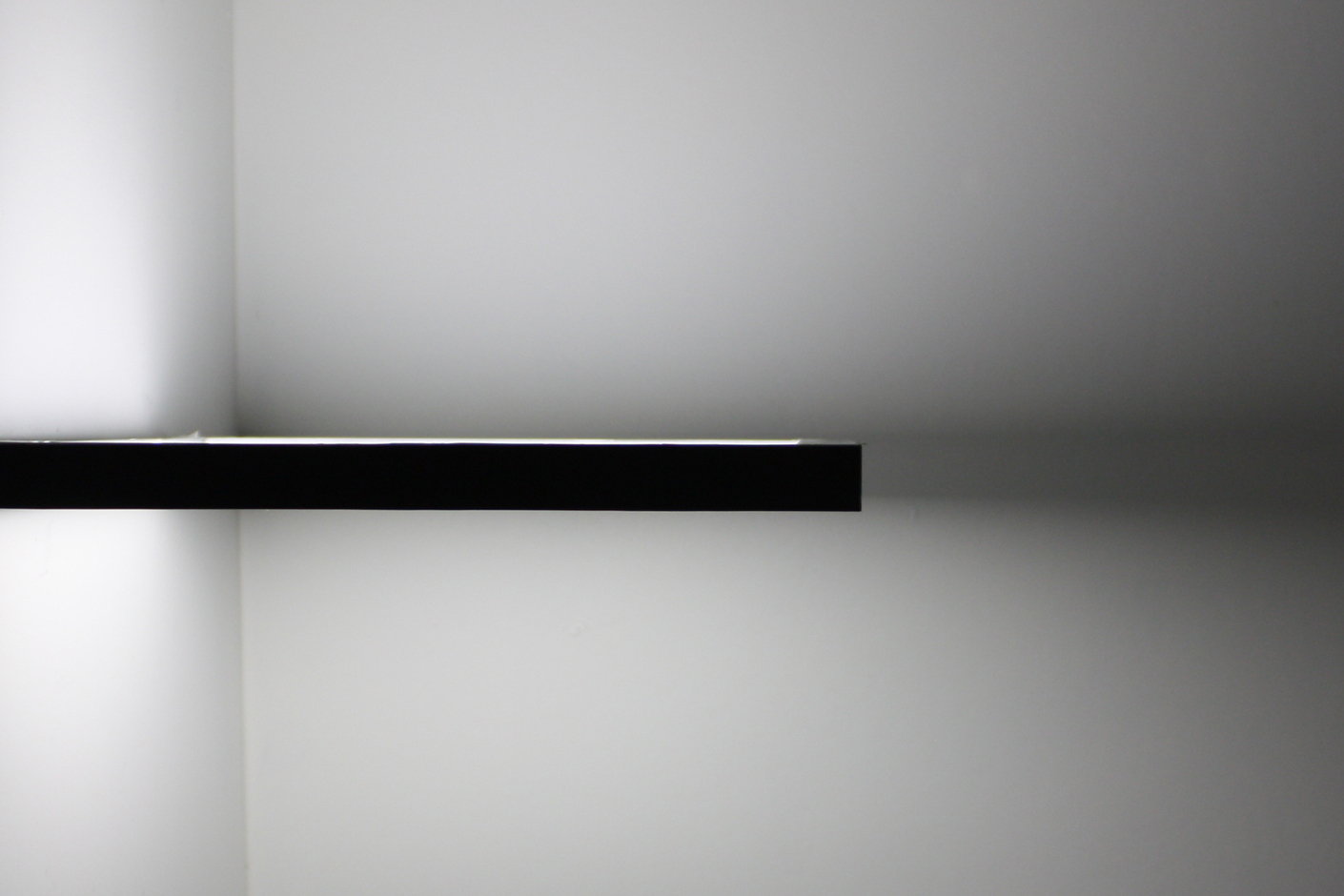

LED-Around wall luminaire

Product description

Combining sophistication and efficiency. Upward and downward light radiation. Ensures homogeneous, glare-free illumination. Fully transparent when switched off. LED Around is useful everywhere, in offices and administrative buildings, in show rooms and private residences. Subtle shaping and maximum transparency when switched off – as a wall luminaire the slim profiles endow LED Around with an air of lightness, while being effective in its power output.

- for offices, showrooms, hotels, laboratories, shop floors and private residences
- suitable for emergency lighting systems according to EN 50172
- narrow light colour tolerances
- direct/indirect light extraction; optional direct light extraction wth reflector
- perfect homogeneous light spread; glare-free
- steplessly dimmable and suitable to VDU workstations

Specifications
Emission class A
Light regulation stepless dimmer
Stand/ mounting fixed mounting
Diffuser/reflector shape rectangular
Inspection seal /certification CE
Width of luminaire head 20 mm
Height head of lamp 2 mm
Depth of luminaire head 61 mm
Form of protection (DIN 40050) IP20 protection against: solids > 12 mm
Safety class class III (protective low voltage)
Length 610 mm
Width 200 mm
Height 20 mm
Material aluminium
steel
acrylic (PMMA)
Colors white
black
silver
All LED Around Products
