Product description

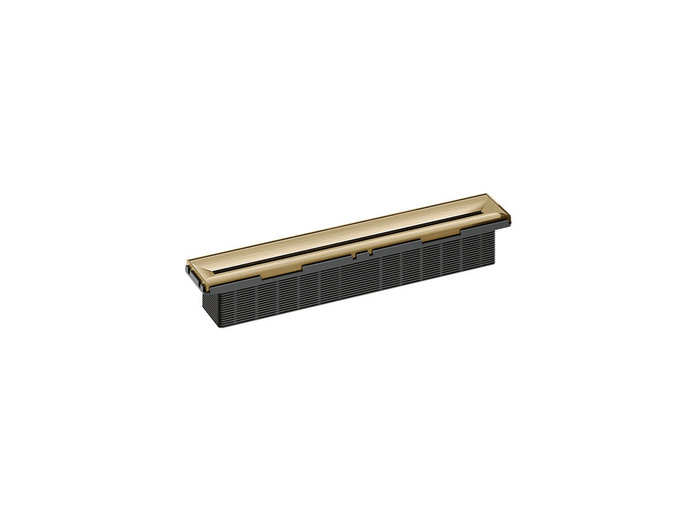

With its sculptural design, Zentrix ideally combines form and function. The shower channel opens gently inwards into a gap through which the water flows off. This short, three-dimensionally milled shower channel made of solid stainless steel complements the DallFlex system with a striking design variant. Zentrix is installed on the surface with the DallFlex drain housing or with the shower element DallFlex Compact.

Dimensions
300x50 mm

Installation height
with drain housing DallFlex 65 mm / 90 mm
with shower element DallFlex from 75 m

Drainage capacity
0.5 l/s - 0.85 l/s depending on drain variant and drain type

Materials
Matt stainless steel, polished stainless steel, matt PVD coated in anthracite, red gold, brass colours

Manufacturer:
Dallmer, Germany

Design:
Johannes Dallmer
