Raso IP67

Product description

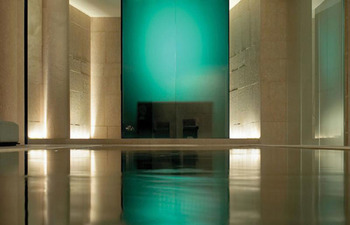

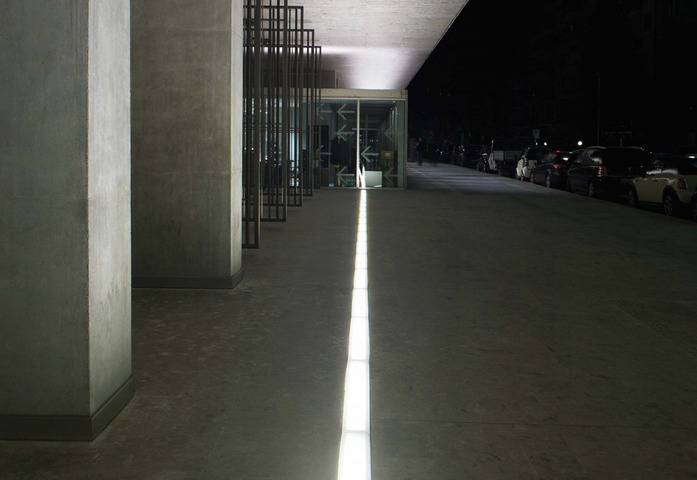

Modular system for outdoor and indoor producing a grazing light onto the wall, treadable and with no exposed frame. The peculiar design of the optics ensures an excellent performance and avoids dazzling. The system is extremely broad-ranged and versatile thanks to the many sizes and light sources available.

Specifications
Fittings
Diffuser/reflector shape rectangular
Inspection seal /certification CE
Width 300 mm / 400 mm / 500 mm / 600 mm / 900 mm / 1200 mm
Height 120 mm
Depth 120 mm
Installation width 310 mm / 410 mm / 510 mm / 610 mm / 1210 mm
Installation height 1140 mm
Installation depth 1470 mm
Form of protection (DIN 40050) IP67 dust-proof/protection against: immersion
Safety class class I (protective earthing)
Fire prevention classes F
Material aluminium
glass (unspecified)
All Raso Products

Manufacturer:
FontanaArte, Italy

Design:
Metis
2003
