Raso Q

Product description

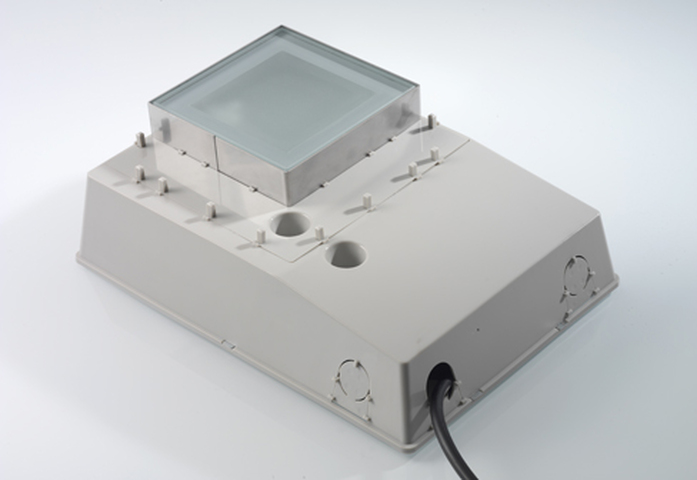

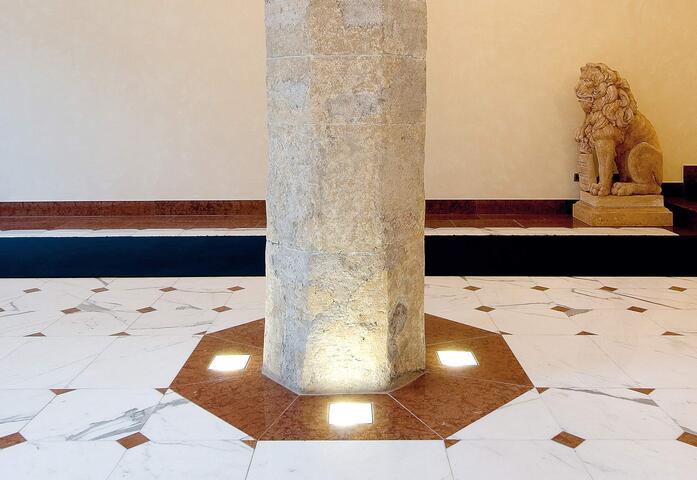

Appliance system to be set into the ground or ceiling, for indoor and outdoor, with reduced depth. The appliance is composed of a body in polished die-cast aluminium, with a diffuser in tempered satin-finish float glass, without a frame and glued onto the main body. A housing box is required for installation.

Specifications
Fittings

Raso Q100:
1x9W GX53 (FL) - 1x25W G9 (HA) - 14/1,5W (LED) - 9x1W 12V 350 mA(LED)

Raso Q150:
1x 3W GX24q1 (FL) - 1x35W GY6,35 (HA) - 1x40W G9 (HA) - 1x20W PGj5 (MH)

Raso Q200:
1x18W 2G10 (FL) - 1x75W G9 (HA) - 1x35W G8,5 (MH)

Diffuser/reflector shapesquare
Inspection seal /certificationCE
Width100 mm / 150 mm / 200 mm
Height90 mm
Installation width100 mm / 150 mm / 200 mm
Form of protection (DIN 40050)IP67 dust-proof/protection against: immersion
Safety classclass I (protective earthing)
Fire prevention classesF
Materialaluminium
glass
All Raso Products


Manufacturer:
FontanaArte, Italy

Design:
Metis
2003
