wittenberg 4.0 recessed spotlight wi4-eb-1r-dl-IP44

Product description

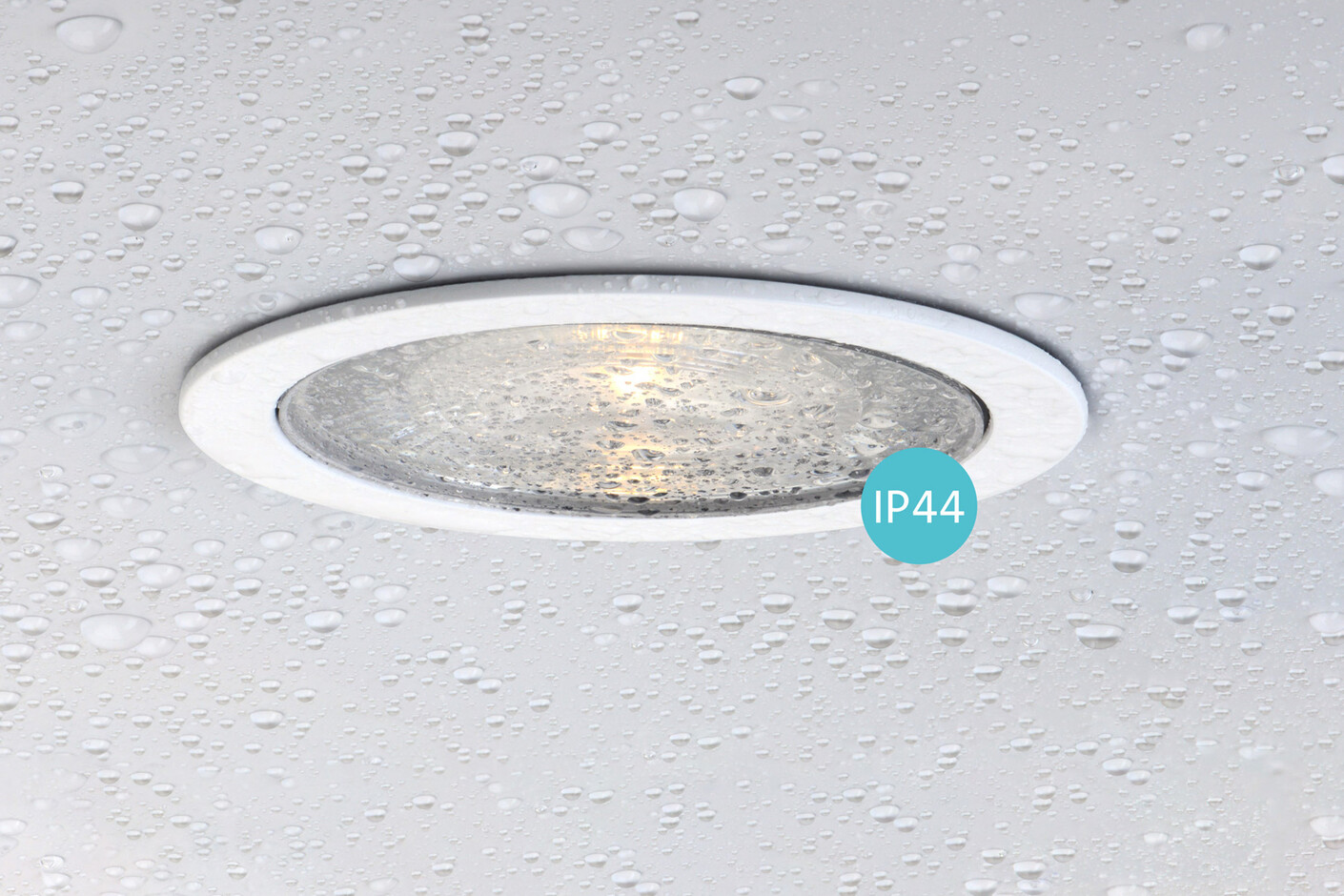

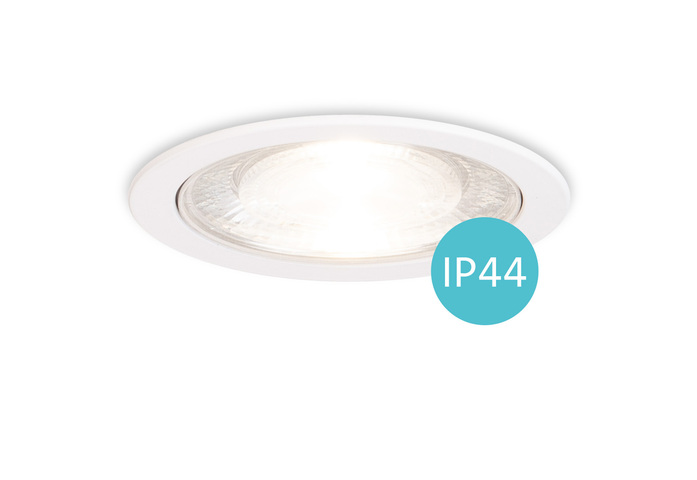

»wittenberg 4.0« - mawa's follow up series of its successful »wittenberg« series. »wittenberg 4.0« follows that tradition and fills the huge footsteps confidently with an even more compact structure, whose filigree housing is reduced to the technically feasible - of course without visible screws and cable. »wi4-eb-1r-dl« is a recessed downlight with round, overlaying rim for mounting into drywall ceiling. With an additional acrylic glass cover, the light is protected against splashing water. With an approximately doubled light output and improved color rendition. Special lenses with three different beam angle characteristics are available to choose from. The client‘s desired lens is then preinstalled. Lenses are not exchangeable due to IP44 certification, Degree of protection: IP44 only for overhead mounting. Unfortunately no accessories can be used for this light.

colors:
RAL 9016 white matt
mawa 9005 black matt

beam angle:
spot 12°, medium 24° or flood 38° (exchangeable by means of vacuum cup or silicone pad)

converter:
excluded

Lamp:
LED, 12,7 W, 700 mA, CRI typ. 92,
2700K/1100lm,
3000K/1200lm,
4000K/1350lm,
>50.000h, EEI = A++ - A,
Retail Lighting and high CRI 98 on request

Specifications
Diameter92 mm
All Wittenberg Products


Manufacturer:
mawa design, Germany

Design:
Jan Dinnebier
2017

Design:
mawa design
2017
