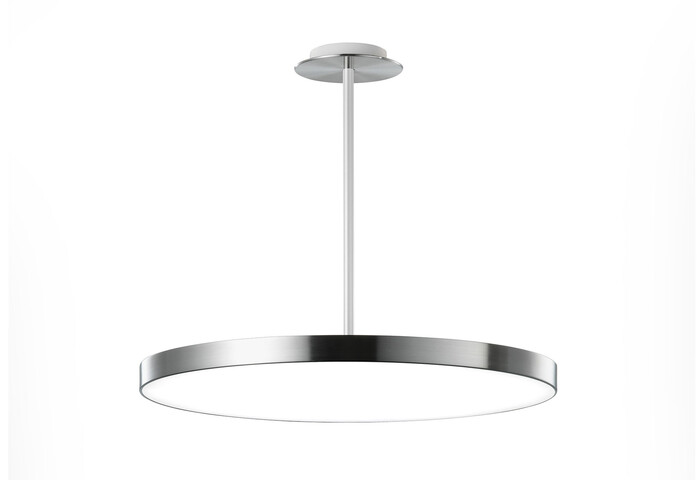

VIVAA suspended luminaire

Product description

So attractive, so lightweight, so intricate - that is the new VIVAA suspended luminaire design. Adaptation of the suspension length even allows integration in high ceiling environments. With its fascinating seamless stainless steel body and due to state-of-the-art LED technology, it immerses offices, lobbies or common rooms as well as corridors in a pleasant bright light. Its exceptional illumination effect is a true pioneer in terms of economies.

• LED technology
• Suspension length 50 cm (can be shortened as required)
• Colour rendering Ra >80
• Light colours 3000 K, 3000 - 6500 K VTL, 4000 K on request
• Luminous flux 5083 – 11433lm
• Indirect light / direct light
• Stainless steel decorative ring (seamless)
• Flat design of luminaire body
• High energy efficiency
• CDP micro-prism cover or acrylic white satin-finished
• Stainless steel luminaire housing
• Sensor for light presence control & constant light regulation
• Suitable as emergency lighting according to EN 50172
• Optional fitting with VTL
• Dimmable DALI
• Homogeneous light distribution
• Complies with the requirements of standards EN 60598-1 and EN 60598-2-25

Specifications
Fittings
Emission class A+
Functions height adjustable
Light regulation stepless dimmer
Stand/ mounting fixed mounting
with pendant hanging
Inspection seal /certification CE
Height head of lamp 3.6 mm
Diameter head of lamp 40 mm / 60 mm
Weight 0.43 kg / 0.81 kg
Form of protection (DIN 40050) IP20 protection against: solids > 12 mm
Safety class class I (protective earthing)
Material acrylic (PMMA)
stainless steel
Colors white
silver
All VIVAA Products

Manufacturer:
Waldmann, Germany

Printed catalogue

Please fill in the form to request a printed catalogue.

For more informations, please refer to our Privacy Policy.

PDF catalogue

Please fill in the form to request a PDF catalogue.

For more informations, please refer to our Privacy Policy.

Estimate

Please fill in the form.

For more informations, please refer to our Privacy Policy.
Downloads

for VIVAA suspended luminaire

File format File name Size Download
PDF vivaa_family_de.pdf 3.44 MB
PDF vivaa_family_en.pdf 3.61 MB
PDF VIVAA-C-600_DE.PDF 1.43 MB
PDF VIVAA-C-600_EN.PDF 1.43 MB
