Stylepark-ID:04.8559.00189
Categories: Interior lightingLighting systemsLight track systems
Product description

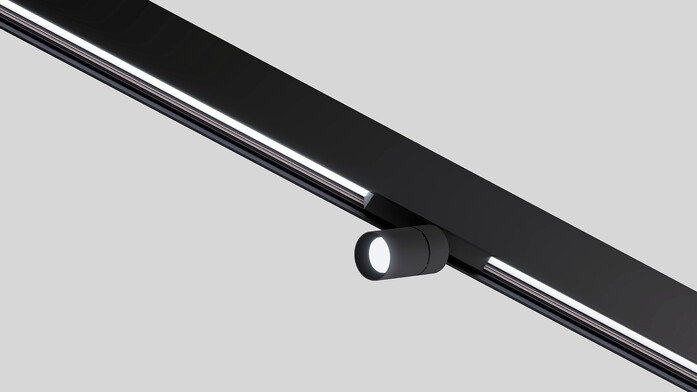

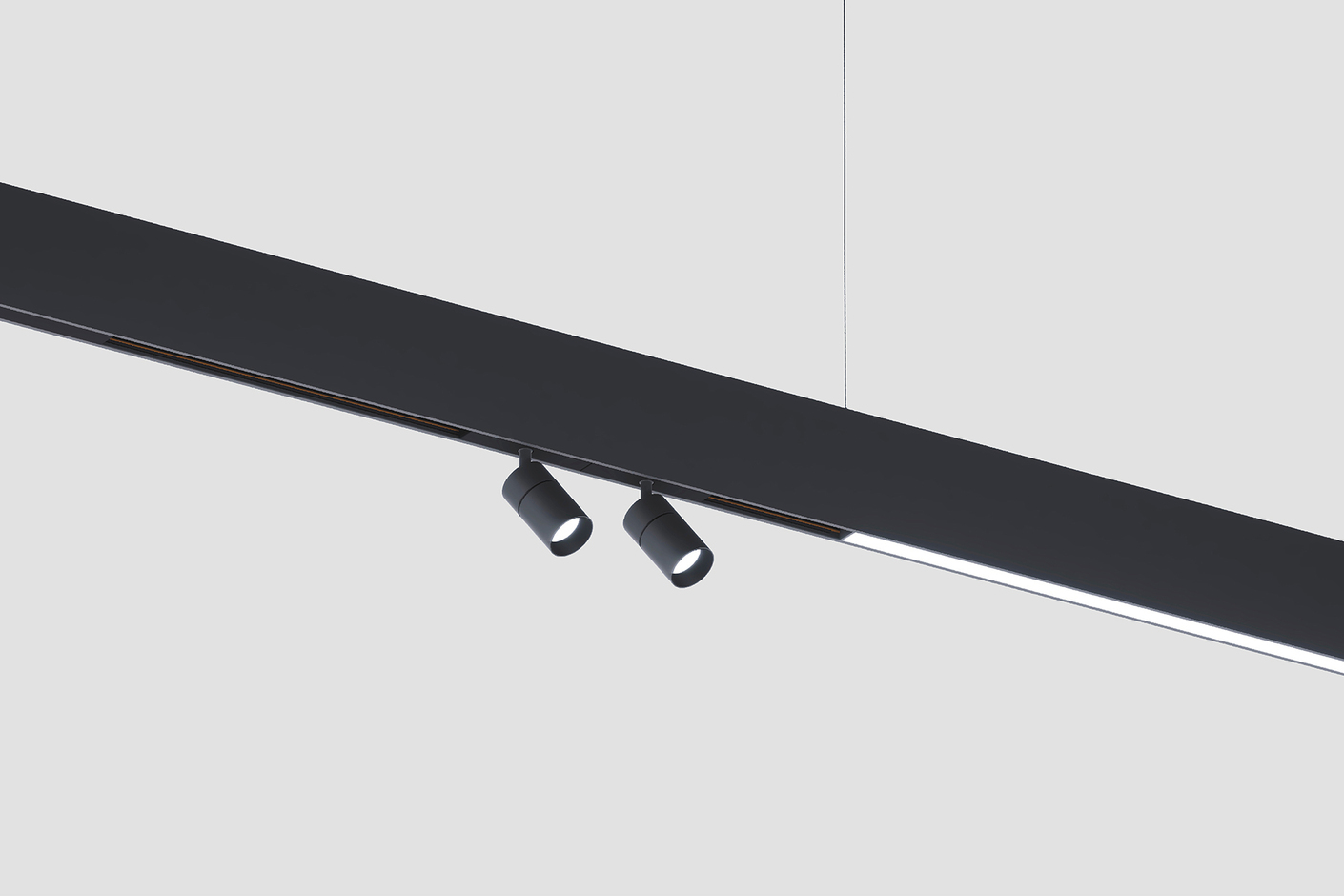

"More than just a linear lighting system: Traceline offers you the freedom to play with lines, squares and angles of different lenghts and applications: Deep Recessed, Recessed, Surface, Pendant or Deep Pendant. Remoted driver for the Recessed versions and integrated controls for Surface and Pendant versions; different reflectors and diffusers, in a profile of just 20mm. Discover now the new ""Traceline Track 48V"" version, with a 48V track integrated.
Technical specifications
- Only 20mm width
- 6 different applications
- 5 different diffusers and reflectors

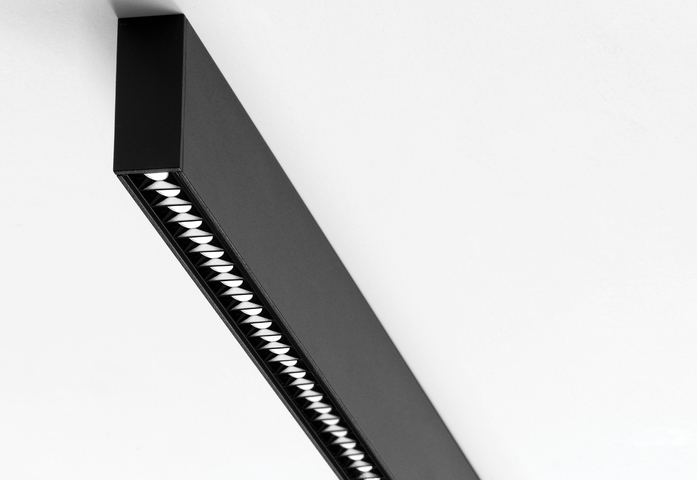

- Dark Performance reflector with UGR<16 and Dark Grid reflector with UGR<17
- LED color temperature: 2200K, 2700K, 3000K, 3500K, 4000K
- Tunable White (2700K-6500K) and Warm Dimming (1800-2700K)
- Control Systems: On/Off, Dimm1-10V, DALI, Bluetooth

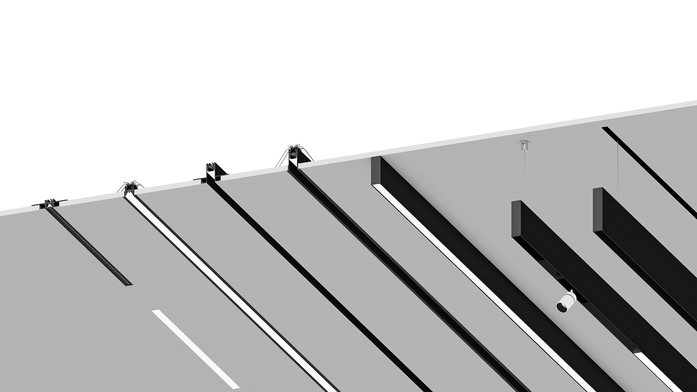

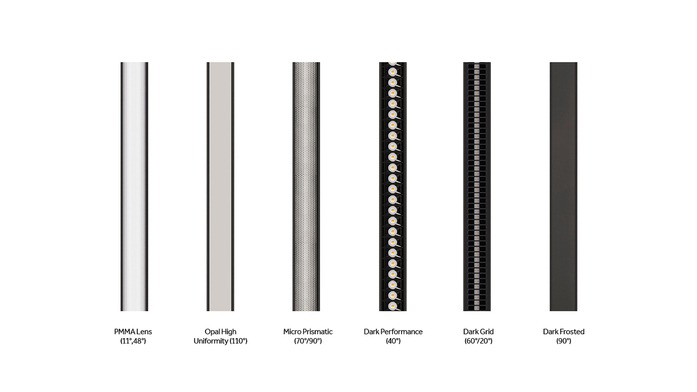

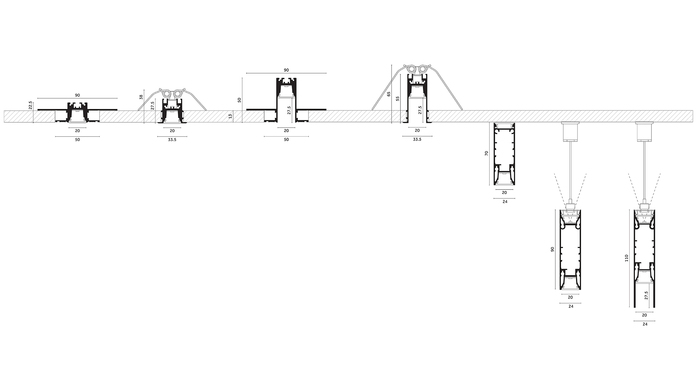

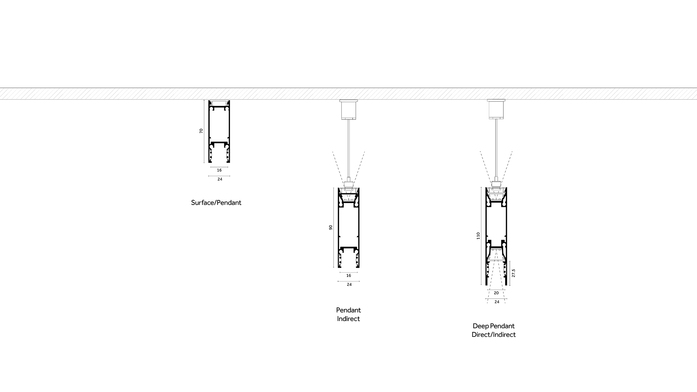

Traceline has reinvented linear lighting by using the latest technology to deliver the most flexible system ever created. Traceline can be Deep Recessed, Recessed, Surface, Pendant or Deep Pendant. Thanks to its super narrow width of 20mm, it integrates perfectly into any kind of architecture and space: invisible, yet powerful. Traceline is available with 6 different optical options to offer solutions for multiple application areas: Opal with different transmittance indexes and Dark Frosted for soft and diffuse lighting; Micro Prismatic, for greater visual comfort and high efficiency; Dark Performance UGR<19 and Dark Grid UGRxtagstartz16, to reduce the glare index; 48° and 11° extruded lens in PMMA (coming soon) with high performance for general or grazing lighting.  Traceline is available in 6 different lenghts: 125, 250, 500, 1000, 2000, 3000mm.

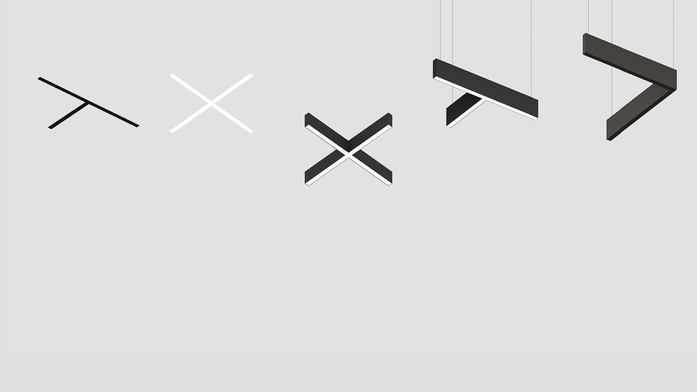

More than just linear lighting: shapes are unique architectural and decorative solutions with performing optical options and outstanding colour finishes. Traceline is available in single modules or in a continuous line configuration. The continuous option has been designed to offer the creative flexibility to create graphic light patterns and emphasize architectural lines. In addition to lines and shapes, you can add any number of Squares to your configuration. Traceline Squares can be Deep Recessed, Recessed, Surface, Pendant or Deep Pendant and have a wide range of sizes: 250x250mm, 500x500m, 750x750mm and 1000x1000mm. Fitting in or standing out within your architectural concept isn't a problem with an ample amount of finishes. Traceline now comes also in a wood collection to enable the system to be integrated within a sophisticated interior, retaining the performance and efficiency. 
Note: For customers and partners ordering from Germany Traceline System products are only offered and delivered under the product name Spoor."

Manufacturer:
Reggiani, Italy
