CRAFT S

Presented: Light+Building 2016, Frankfurt
Stylepark-ID: 04.1022.00514
Categories: Interior lightingHall reflector lamps
Product description

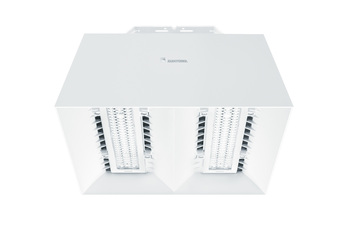

The latest addition to the successful CRAFT product family is a smaller version of the high-bay LED luminaire. With a luminous flux of 7500 lumens and a Luminaire Efficiency Factor of 115 lm/W, CRAFT S proves itself to be a real compact powerhouse.

CRAFT S is the ideal solution for all lighting tasks in industry applications with a ceiling height of 4-8 metres, measuring only 338mm × 165mm × 100mm. The new miniaturised S version has the same patented aluminium housing design as the existing CRAFT family, incorporating cooling fins for optimal thermal management. This creates a flow of air through the luminaire to ensure passive cooling and thereby prolong the lifetime of the LEDs – even at higher temperatures. At the same time, this airflow helps prevent dust gathering on the luminaire, which leads to lower maintenance costs and is particularly beneficial when the product is mounted in areas that are difficult to access. IP65 protection, the ability to cope with higher ambient temperatures and resistance to chemical substances further emphasise the maximum staying power of this miniature luminaire.

The PMMA optic delivers targeted and efficient lighting. The existing colour temperature range of 4000 K and 6500 K is supplemented by a warm white version with 3000 K, making CRAFT S an interesting option for shop and retail applications. Installation on TECTON continuous-row lighting system is now even easier, thanks to the introduction

Specifications
Length 339 mm
Width 165 mm
Height 100 mm
Stand/ mounting with cable system
Inspection seal /certification ENEC
Form of protection (DIN 40050) IP65 dust-proof/protection against: water jets
Material acrylic (PMMA)
Colors silver
white
All Craft Products

Manufacturer:
Zumtobel, Austria

Design:
Stephen Philips
2016
