RESCLITE PRO

Product description

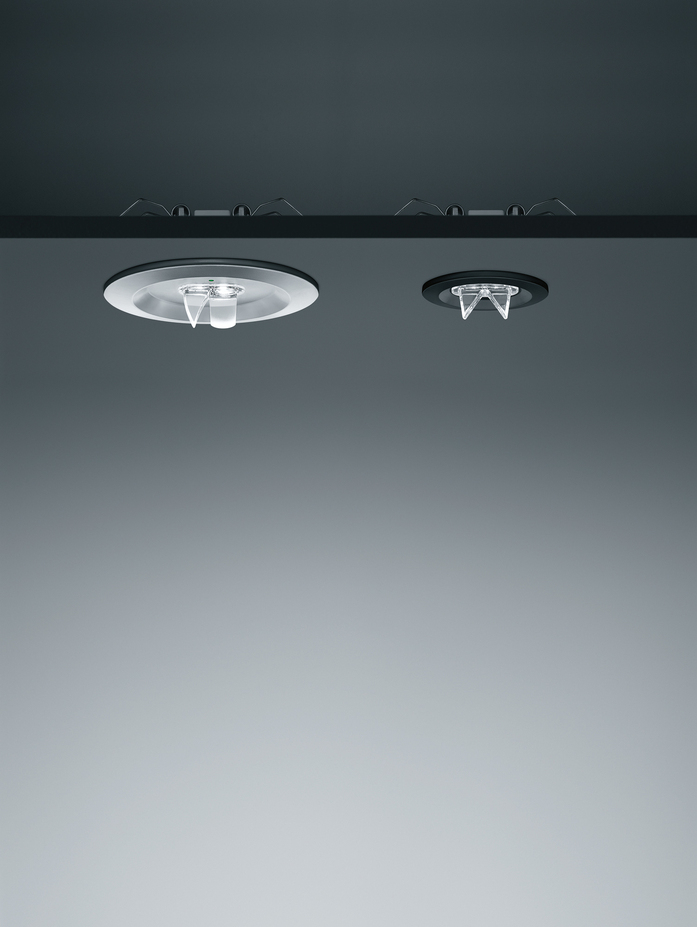

The new RESCLITE PRO LED solution from Zumtobel adds an extra dimension to emergency lighting. This smart emergency luminaire utilises new lenses to provide enhanced flexibility and combines an unobtrusive look with the highest function-driven performance. A subtle design and the addition of a new mini version means that the fitting almost seems to disappear into the ceiling.

Modern emergency lighting has to guide people quickly, logically and reliably in the event of an emergency. RESCLITE PRO from Zumtobel continues the outstanding success story of the RESCLITE emergency portfolio. The small, energy-efficient LED spot with finely optimised optics is now even more flexible, even more powerful and even more intelligent. This emergency solution can be perfectly adapted to suit the requirements of different spatial environments and trusted to maintain maximum safety in a long list of applications – from offices and art and culture to industry. The new compact RESCLITE mini broadens the scope of the range even further. Thanks to its unobtrusive design, the mini version blends seamlessly into the structure of the building, making it the ideal choice for architectural projects.

A series of precisely optimised lenses ensures the best possible solution for a diverse range of locations. While the escape lens fully illuminates long escape routes, RESCLITE PRO can now also light up corners with a new escape 90° optic that covers two corridors at the same time, such as lateral passageways and shelf aisles in shops. The escape wall lens is the perfect option for mounting on vertical surfaces in stairwells and buildings with high ceilings. Large-area rooms like offices and conference rooms can call on the services of the anti-panic lens, which helps reduce concern and confusion in the event of an evacuation by using a square distribution to push the light into every corner. In addition, the spot optics provide clear vertical illumination of fire extinguishers and first-aid equipment. The range is completed by two more variants of the escape and anti-panic lens. The high-performance (HP) version provides increased illuminance levels or wider spacings of up to 35 metres between the individual luminaires, offering the perfect product for large industrial sites and logistics halls. The high-ceilings (HC) variant is planned for mounting heights of between 7 and 30 metres, guaranteeing effective emergency lighting in buildings such as production facilities and DIY stores.

Thanks to the new PROset technology from ZGS (Zumtobel Group Services), RESCLITE PRO can be quickly and directly addressed and configured using the PROset Pen or the dedicated PROset smartphone app. The NFC (Near Field Communication) interface offers the chance to easily programme various switching methods, including permanent light, non-maintained mode and specific dim values. The emergency light is also serviced via the interface. Parameters such as temperature and voltage are constantly monitored and recorded in a black box. All the information is stored permanently and can be accessed immediately. The configuration of RESCLITE PRO is also possible in projects without a central controller.

Specifications
Form of protection (DIN 40050) IP66 dust-proof/protection against: heavy seas
IP40 protection against: solids >1mm
Material aluminium

Manufacturer:
Zumtobel, Austria
