A-Round

Presented:Light + Building 2018, Frankfurt
Stylepark-ID:04.2104.11237
Categories: Outdoor lightingBuilt-in lightsBuilt-in floor lights
Product description

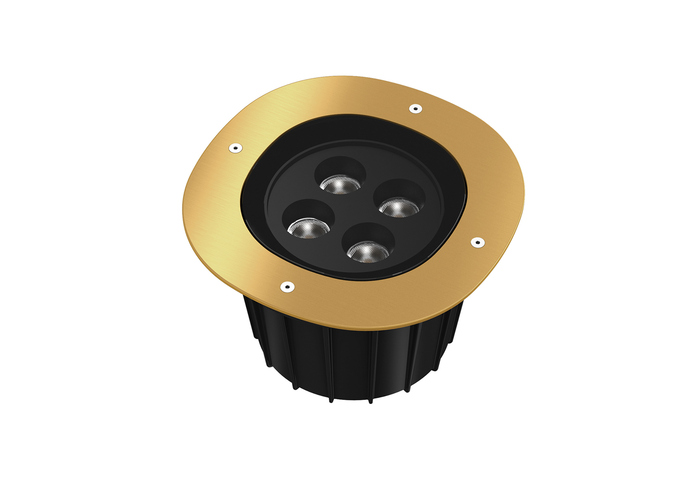

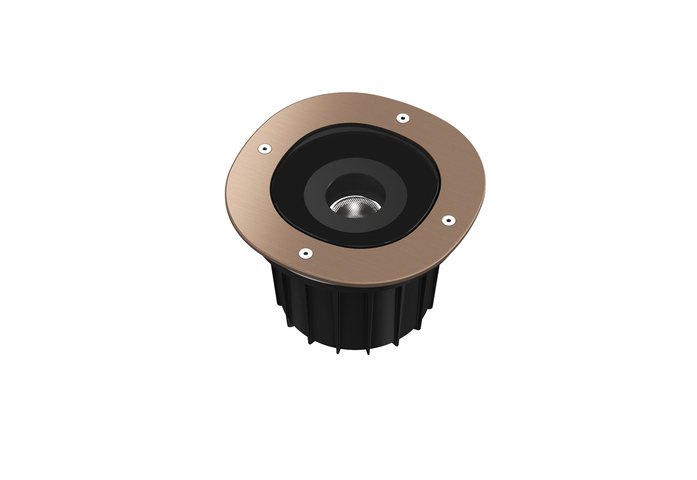

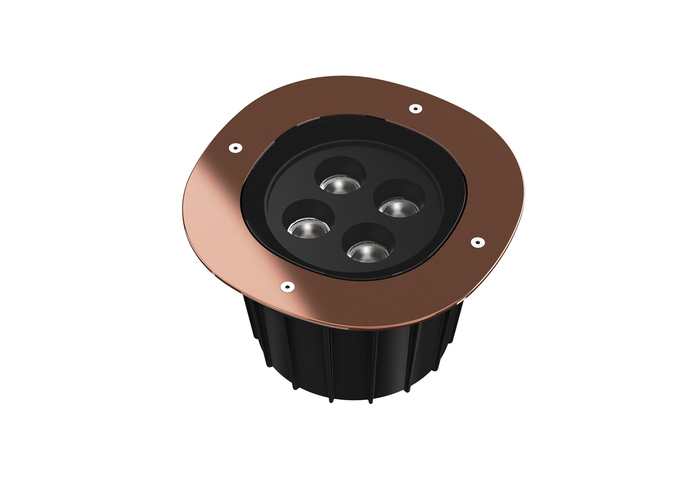

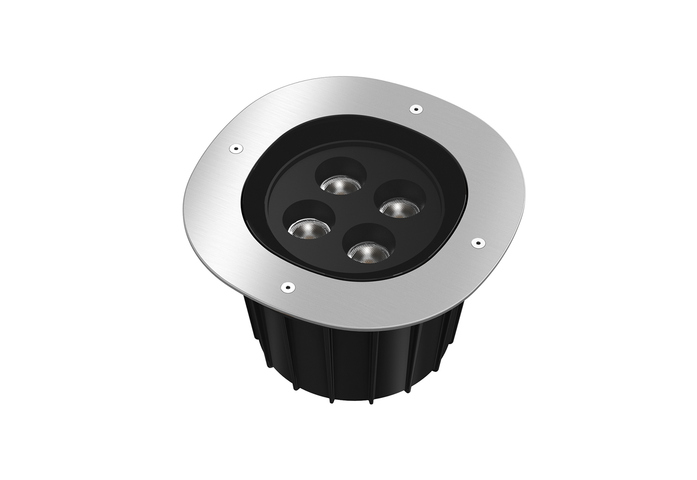

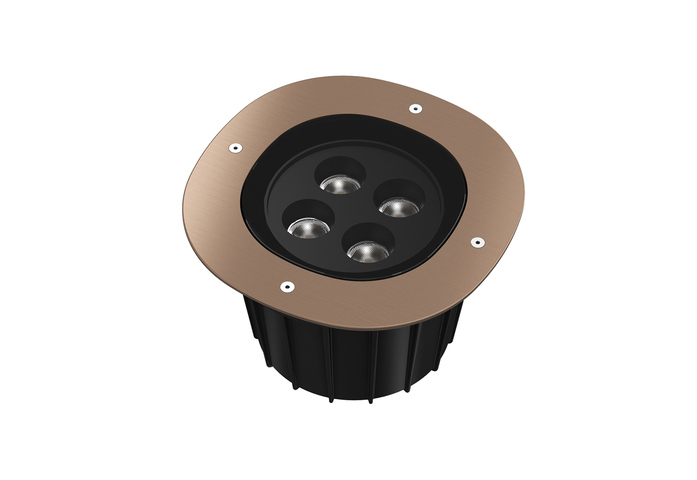

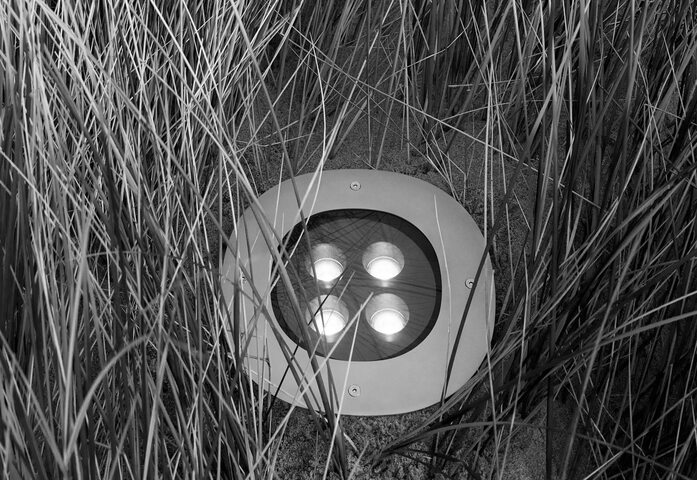

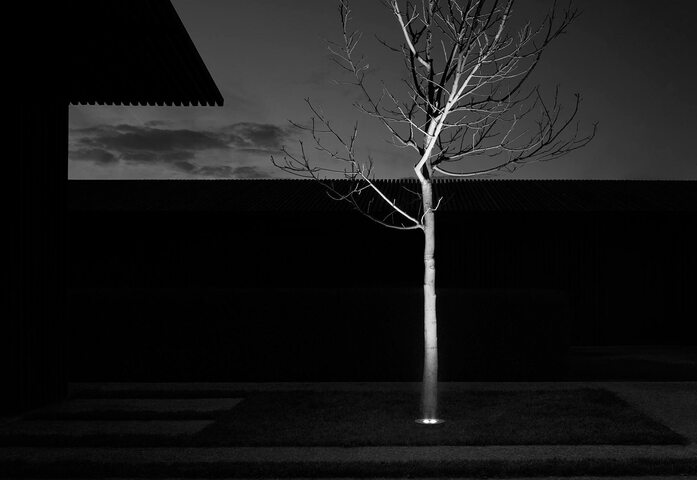

Ground-recessed luminaire for outdoor use, walkable and trafficable, available in three sizes, with adjustable optics in various configurations. External body made of stainless steel AISI 316L treated with the PVD process (Physical Vapour Deposition). Thanks to this innovative treatment, the surfaces of A-Round are coated with a thin film of metals, such as zirconium and titanium which, combining with the steel at the molecular level, increases the resistance to both, mechanical and atmospheric agents, permitting the execution of elegant and durable finishings. The body of the luminaire is made of die-cast aluminum EN AB-47100 with low copper content, coated with two layers of paint with high resistance to corrosion. High-strength tempered clear glass, screen-printed to reduce glare. Driver for remote installation included, provided with M12 quick connector for watertight coupling. Installation requires a housing for flush mounting, to be ordered separately. It is necessary to provide an adequate level of gravel (> 300 mm) or a drain system to ensure drainage and avoid water stagnation. To ensure the sealing of the cable gland it is necessary to use flexible electric cables suitable for use in outdoor environments. Integrated 220/240V power supply. Box for installation required, to be ordered separately. Adjustment on the horizontal axis: max 15°. Rotation around the vertical axis: max 359°.

Specifications
Materialstainless steel
metal

Manufacturer:
FLOS, Italy

Design:
Piero Lissoni
